RG-AP630(CD) Wireless Access Point
Quick Installation Guide
6 Installing the Security Cable

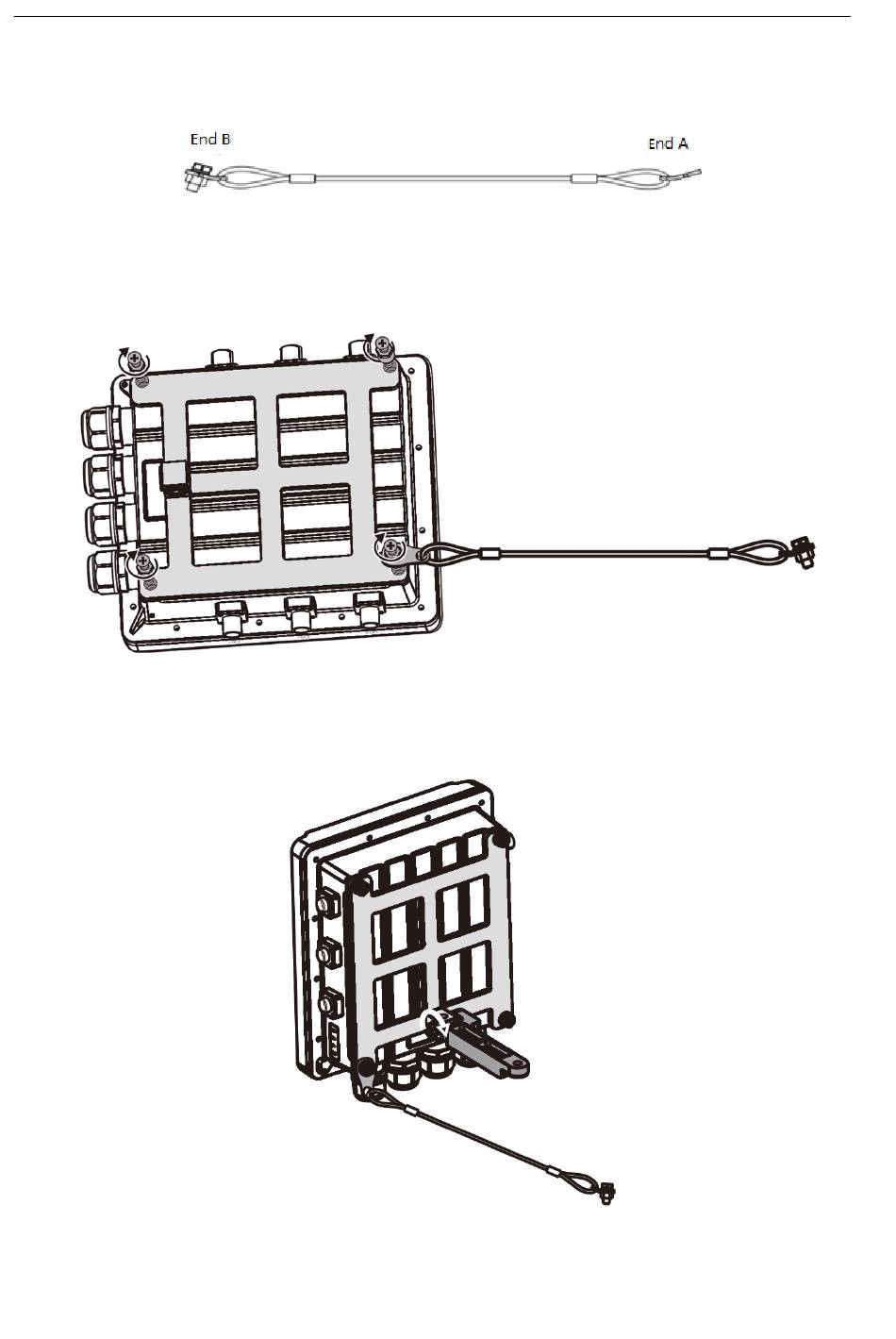

Remove the security cable from the mounting plate first. Then, attach the mounting plate to the bottom of the AP and
fasten the plate with the four M8x20 screws. Note that one screw is used to fix the metal shim of End A onto the plate
before it is tightened.
Attach the tie rod to the mounting plate and fasten the rod with the M8x40 screws after AP is well-positioned, shown in the
following figure.
