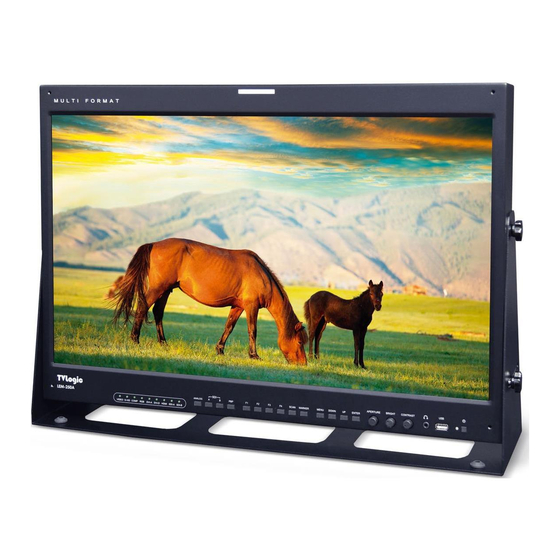

Summary of Contents for TVLogic LEM-250A

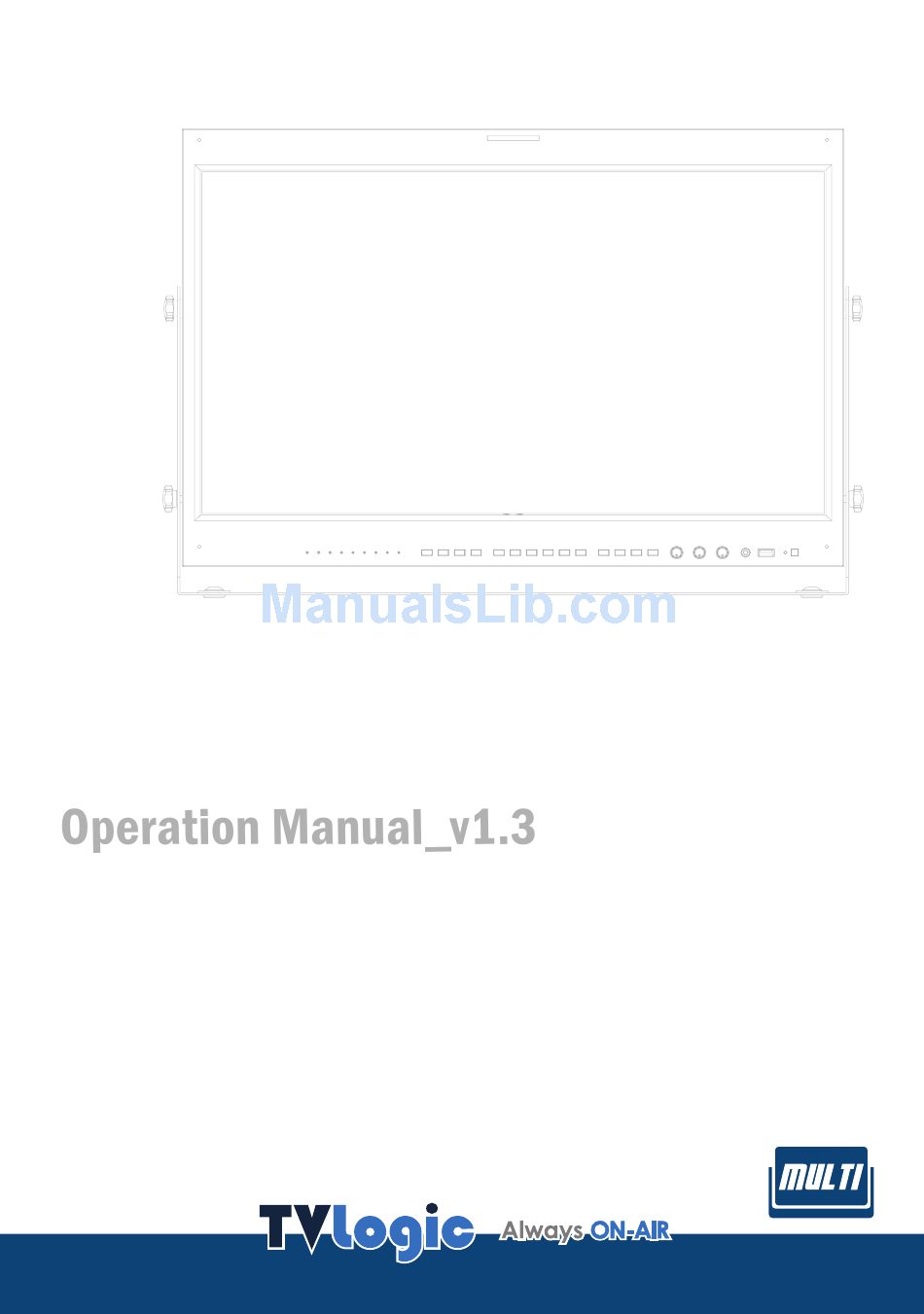

  • Page 1 Multi Format OLED Monitor FHD OLED Reference Monitor LEM-250A...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] PICTURE [2] VIDEO [3] COLOR [4] DISPLAY [5] GPI [6] MARKER [7] WAVEFORM [8] AUDIO [9] SYSTEM 6. Other Functions 7. DVI / HDMI Support Resolution 8.

  • Page 4: Caution

    (red, green, or a very high humidity may cause damage or blue) or always off (black or dark). TVLogic abnormal operation of the monitor. Please refer guarantees more than 99.999% of the sub-...
  • Page 5 1. Caution Always use set voltage. • If any of the following conditions occurs, unplug ● the power cord from the DC outlet, and request AC 100 ~ 240V (0.75~0.35A 50/60Hz) ● a qualified service person to perform repairs. DC 24V(TYP 2.6A) ●...
  • Page 6 1. Caution • When mounting the product on a wall or ceiling, • Sudden stops, excessive force and uneven be sure to install the product according to the floor surface can cause the product to fall from method recommended by the manufacturer. the cart.

  • Page 7: Main Features

    2. Main Features LEM-250A Monitor contains the following features : Compatible with various SDI signals RS422/UMD feature support ● ● - This product is compatible with various - This product supports protocols provided by SDI Signals : 480i, 576i, 720p, 1080i, 1080p, TVLogic or a TSL protocol.

  • Page 8: Controls & Functions

    3. Controls & Functions LEM-250A : FRONT APERTURE BRIGHT APERTURE SDI-B CONTRAST BRIGHT SDI-A AUDIO OUT SDI-B CONTRAST ANALOG AUDIO OUT SDI-A AUDIO OUT STATUS POWER ANALOG AUDIO OUT INDICATOR STATUS POWER INDICATOR ENTER ENTER DOWN MENU DOWN SCAN MENU...
  • Page 9 3. Controls & Functions FRONT [VIDEO] lamp [F1] (In Single Mode) button/lamp ● ● - Used when COMPOSITE INPUT is selected. - Used to activate the function. - The feature selected in “SYSTEM->KEY FUNCTION1” setting will be activated. [S-VID] lamp ●...
  • Page 10 3. Controls & Functions FRONT [MENU] button [USB] ● ● - Used to activate the OSD menu. - This terminal is used to upgrade the firmware. - When the OSD menu is activated, press this button to exit from the menu. [AUDIO OUT] ●...
  • Page 11 [RS422 IN/OUT] (RJ-45) monitor COMPOSITE 3, S-VIDEO C, ● COMPONENT Pr and RGB R signals. - Used to control the monitor with protocol provided by TVLogic or to support TSL protocol. [HDMI(HDCP)] (HDMI) ● - Signal input terminal for HDMI signal.

  • Page 12: Menu Tree & Adjustment

    PAGE I >> PAGE II BRIGHT CONTRAST CHROMA PHASE APERTURE NTSC SETUP 7.5IRE VGA H POSITION VGA V POSITION A. MENU, UP/DOWN, ENTER Button Status. B. Model name(LEM-250A). C. Current input signal. D. Current input signal resolution. 12 FHD OLED Reference Monitor...

  • Page 13: Menu Operations

    5. Menu Operations [1] PICTURE SDI A LEM-250A SDI A LEM-250A PAGE I >> PAGE II PAGE II >> PAGE I BRIGHT FOCUS ASSIST LEVEL CONTRAST FOCUS ASSIST COLOR CHROMA PHASE GREEN APERTURE BLUE NTSC SETUP 7.5IRE USER ASPECT H...

  • Page 14: Video

    5. Menu Operations [2] VIDEO SDI A LEM-250A SDI FORMAT ● - Used to select the SDI input format between CLEAR MOTION FILTER Single link and Dual link. FAST MODE FORCE psf SDI SAMPLING FILM MODE DETECTION AUTO ● SDI FORMAT...

  • Page 15: Color

    5. Menu Operations [3] COLOR SDI A LEM-250A BIAS RED ● - Used to adjust black level to control red PAGE I >> PAGE II COLOR TEMP 6500K color. GAIN RED - The value is selectable between Min(-100) GAIN GREEN and MAX(100).
  • Page 16 5. Menu Operations [3] COLOR SDI A LEM-250A SD COLOR SPACE ● - Used to set the color space for the SD video PAGE II >> PAGE I COLOR SPACE REC-709(sRGB) signal HD COLOR SPACE REC-709(sRGB) SD COLOR SPACE REC-709(sRGB)

  • Page 17: Display

    5. Menu Operations [4] DISPLAY SDI A LEM-250A SDI A LEM-250A PAGE I >> PAGE II PAGE II >> PAGE I HD DISPLAY MODE 16:9 SCREEN SELECT ALL SCREEN TIME CODE ENABLE BORDER COLOR WHITE ORBITER CIRCUIT BORDER THICKNESS CLOSED CAPTION...

  • Page 18: Gpi

    5. Menu Operations [5] GPI SDI A LEM-250A Menu PAGE I >> PAGE II GPI 1 ANALOG CHANNEL Classifi- Settable Values GPI 2 SDI-A CHANNEL cation GPI 3 SDI-B CHANNEL GPI 4 PBP CHANNEL GPI 5 TALLY R NONE, GPI 6...
  • Page 19 GROUP ID - Maximum of 8 characters are available. ● - Used to control several monitors in a group for the TVLogic control protocol using RS- REMOTE CONTROL ● 422/485 communication or network. - Used to choose how to adjust the monitor.
  • Page 20 5. Menu Operations [5] GPI <Dynamic UMD Protocol (TSL V3.1)> * Transmission (18 Byte) (PC or Device -> Monitor) HEADER CONTROL DISPLAY DATA (1 BYTE) BYTE(1 BYTE) (16 BYTE) * [HEADER] : Display address (0~126) + 80 hex. * [CONTROL BYTE] bit 0 : Tally 1 (1=on, 0=off) bit 1 : Tally 2 (1=on, 0=off) bit 2 : Tally 3 (1=on, 0=off)
  • Page 21 5. Menu Operations [5] GPI Tally Type - Default ● - S-8C(Single 8 Character) & S-16C(Single 16 Character) Bit 1 Bit 1 Operation (Tally2) (Tally1) CHANNEL1 CHANNEL1 CHANNEL1 CHANNEL1 - D-8C(Dual 8 Character) Bit 1 Bit 1 Operation (Tally4) (Tally3) CHANNEL1 CHANNEL1 CHANNEL1...
  • Page 22 10262. - Available modes are SMALL, NORMAL and LARGE. SERVER IP ADDR ● - Used to set the IP address of TVLogic’s UMD FONT TYPE Controller (RMU Series). ● - This function sets the Type of UMD FONT.

  • Page 23: Marker

    5. Menu Operations [6] MARKER SDI A LEM-250A FIT MARKER ● - Used to activate the FIT MARKER function. PAGE I >> PAGE II MARKER - With FIT MARKER “ON”, the safety area is CENTER MARKER displayed relative to the marker in use.

  • Page 24: Waveform

    5. Menu Operations [6] MARKER [7] WAVEFORM SDI A LEM-250A SDI A LEM-250A PAGE II >> PAGE I PAGE I >> PAGE II USER MARKER H1 WAVEFORM/VECTOR USER MARKER H2 WAVEFORM INTENSITY USER MARKER V1 WAVEFORM TRANS OPAQUE USER MARKER V1...
  • Page 25 5. Menu Operations [7] WAVEFORM SDI A LEM-250A LINE SELECT POSITION ● - In WAVEFORM/VECTOR, use the Up/Down PAGE I >> PAGE II WAVEFORM/VECTOR button to select User’s desired line. WAVEFORM INTENSITY WAVEFORM TRANS OPAQUE LINE SELECT DRAW VECTOR GAIN X 4 NORMAL ●...
  • Page 26 5. Menu Operations [7] WAVEFORM SDI A LEM-250A Y PICTURE BLINK ● - Used to trigger selections of image that PAGE II >> PAGE I RANGE ERROR exceeds Y MAX and Y MIN to blink. Y MAX Y MIN C PICTURE BLINK C MAX ●...

  • Page 27: Audio

    5. Menu Operations [8] AUDIO LEVEL METER POSITION SDI A LEM-250A ● - Used to control the position of the Audio LEVEL METER SELECT LEVEL METER DISPLAY PAIR Level Meters. LEVEL METER REFERENCE -20dB - Available values are HOR, VER and BOT.

  • Page 28: System

    5. Menu Operations [9] SYSTEM INTERNAL PATTERN SDI A LEM-250A ● - This item generates internal white pattern. PAGE I >> PAGE II USER CONFIG SET USER 1 - The white level select between 0% and 100% LOCK NUMBER LEM000000...
  • Page 29 5. Menu Operations [9] SYSTEM KEY LOCK SDI A LEM-250A ● - This item locks all buttons on the front PAGE II >> PAGE III KEY LED panel except power, input select, and menu KEY FUNCTION 1 ASPECT buttons. KEY FUNCTION 2...
  • Page 30 5. Menu Operations [9] SYSTEM SDI A LEM-250A SDI A LEM-250A PAGE III >> PAGE IV PAGE IV >> PAGE V DEVICE COPY DATA COLOR CALIBRATION CAL. LOG COPY START TARGET LUMINANCE 80 cd/m2 S/W UPGRADE K-10 CHANNEL S/W UPGRADE START...
  • Page 31 5. Menu Operations [9] SYSTEM SDI A LEM-250A PAGE V >> PAGE I BOARD VERSION 0101 1306 4.00 9 VERSION 01.03.02.05 MAIN PBP1 PBP2 BRIG KEYPAD VERSION CONT MCU VERSION COLOR : 6500K 6500K 6500K SCAN ZERO OVER OVER FPGA VERSION...

  • Page 32: Other Functions

    6. Other Functions [1] ANALOG Button This product is capable of processing all 2. Use the UP/DOWN button to select desired ● input source and press the ENTER button to input signals usable in ANALOG mode. confirm. The ANALOG input settings are as follows: 3.
  • Page 33 6. Other Functions [2] ASPECT [3] SCAN 1. Four different aspect modes are available. This product supports various scan modes. ● When input signal is SDI -A/B, Composite Press [SCAN] button on the front of the ● 1/2/3 and Input Signal Format is SD : monitor to activate different scan modes.
  • Page 34 6. Other Functions [3] SCAN 3. The following represents the different - 1:1 SCAN : 1:1 pixel mapping of original types of scan mode. When a scan mode is image. This feature is available only when selected, display skips the next mode if its the size of the original image is bigger than required condition is not met.
  • Page 35 Then the two images will be Function Key. displayed in the monitor. In Normal Screen - LEM-250A has 4 functions keys(F1~F4). (when an individual screen is not selected in PBP mode), key function and OSD 1. Press the function button on the front of the function apply for two images simultaneously.

  • Page 36: Color Calibration

    A supported USB probe (K-10, i1Pro) is needed for Auto Color Calibration 2. Set the [DEVICE] as the Color Probe which will be connected. SDI A LEM-250A SDI A LEM-250A PAGE IV >> PAGE V PAGE III >> PAGE IV...

  • Page 37: Dvi / Hdmi Support Resolution

    7. DVI / HDMI Support Resolution DVI ANALOG / DVI DIGITAL / HDMI SUPPORT RESOLUTION DVI-ANALOG mode supports the following modes : ● Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768 60Hz, 70Hz, 75Hz 1366 X 768...

  • Page 38: Product Specifications

    8. Product Specifications Size 24.5” Resolution 1920 X 1080 Pixel Pitch 0.283(H) X 0.283(W) mm Color Depth 10-bit 1.07B color OLED Viewing Angle R/L, U/D 178degrees Luminance of white 150 cd/ m Contrast Ratio 5000 : 1 Display Area 543.4(H) X 305.6(V) mm 1 X DVI-I DVI IN 3 X BNC...

  • Page 39: Optional Accessories

    9. Optional Accessories RACK MOUNT ANY DISPLAY UP TO 24” 8.4 inch 9 inc h 7 inch 15 inch 17 inch 21 inch 24 inch FHD OLED Reference Monitor 39...
  • Page 40 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 84 Gasan-digital 1-ro, Geumcheon-gu, Seoul, 153-797, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
