SM Split CS Series Heat Pump

TYPICAL SYSTEM SETUP

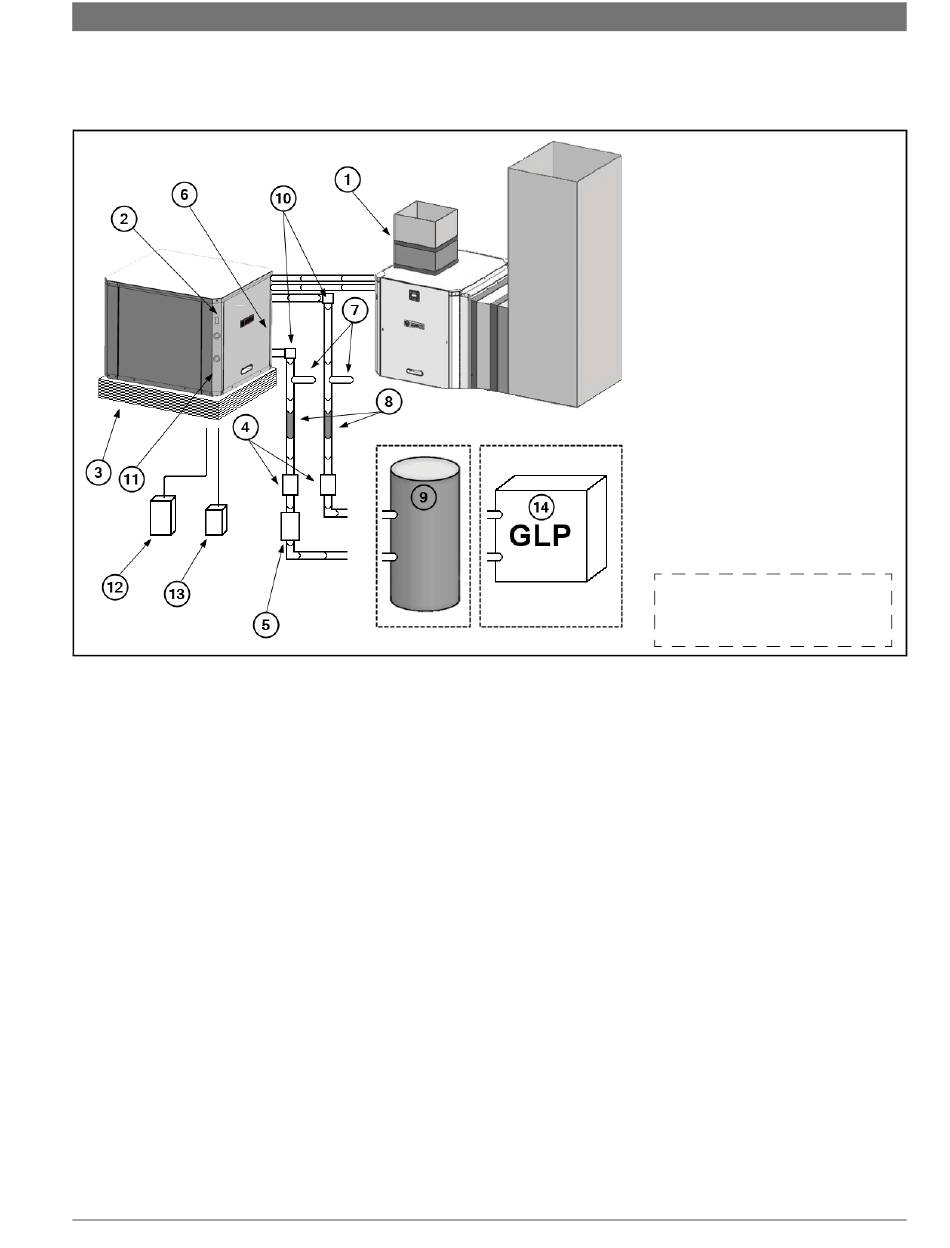

Fig. 9 Typical system setup
[1] Flex Duct Connection
[2] Low Voltage Control Connection
[3] Vibration Pad
[4] Ball Valves
[5] Solenoid Valve Slow Closing
[6] Condensate Drain Connection
[7] Drain Valves
[8] Hose Kits (optional)
[9] Pressure Tank (optional)
[10] P/T Ports (optional)
[11] Line Voltage Connection
[12] Electric Heater Line Voltage Disconnect
[13] Unit Line Voltage Disconnect
[14] Ground Loop Pumping Package
SM Split CS Series Heat Pump
Subject to change without prior notice
Typical System Setup | 19
For Reference Only.
A typical setup is shown for
illustration purposes only.
8733825873 (2020/05)
