Page 4 RD8800 Manual Overview Chapter 1 ....General Information Chapter 2 ....Installation and Wiring Chapter 3 ....Getting Started Chapter 4 ....Operation Chapter 5 ....Programming Chapter 6 ....Calibration Chapter 7 ....Get Data Software Appendix A ....Configuring a 1-5 Vdc input for a 0-250 psig pressure transducer Appendix B ....
Page 5 SAFETY NOTICE This Safety Notice has been included to emphasize the DANGER OF HAZARDOUS VOLTAGES on the REAR TERMINAL PANEL of your instrument. USE EXTREME CAUTION WHEN INSTALLING OR SERVICING your instrument. Please read the entire contents of the Installation and Wiring Chapter of this manual before attempting to install or service your instrument.
Page 6: Table Of Contents
Chapter 1 General Description Introduction ..............................1-1 1.1 Recorder Description ..........................1-2 1.1.1 Inputs ............................. 1-2 1.1.2 Instrument Size ..........................1-2 1.1.3 Menus ............................1-2 1.1.3.1 Display Menu ........................1-3 1.1.3.2 Program Menu ........................1-3 1.1.3.3 Function Menu ........................1-3 1.1.3.4 Hidden Menu .........................

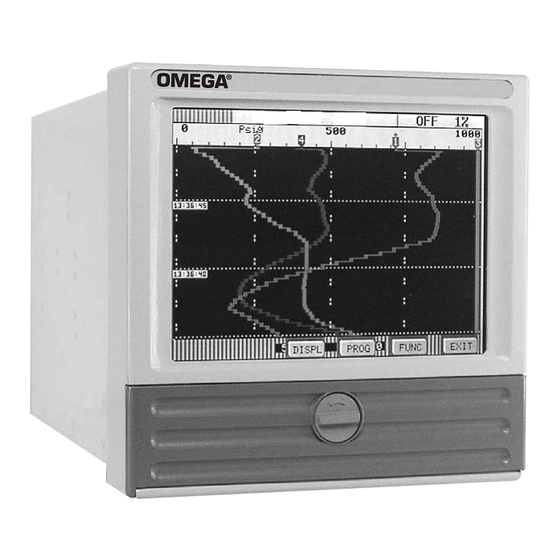

Page 7 Chapter 1 General Description CHAPTER 1 Figure 1-1 Solid State Data Recorder This manual is a user reference guide for the Solid State Paperless Data Recorder (Figure 1-1). The manual provides detailed instruction for installation, operation, programming, calibration and maintenance of the instrument. The recorder is a sophisticated piece of equipment that requires some level of programming before use.
Page 8: Recorder Description
Chapter 1 General Description 1.1 Recorder Description The Solid State Data Recorder is a Paperless Recording instrument. Data is stored on either an internal floppy disk or a CompactFlash™ card. All data is stored in MSDOS format and may be archived or analyzed on any IBM compatible PC running Microsoft Windows 3.1, Windows 95/98 or Windows NT/2000/XP using the available Companion Software.
Page 9: Display Menu
Chapter 1 General Description 1.1.3.1 Display Menu The Display Menu is accessed by pressing the Display button (DISPL) on the Command Button Bar. This menu allows you to display any programmed point or series of points, or any current alarm or series of alarms on the Status Line along the top of the display.
Page 10: Recording Options
Chapter 1 General Description 1.2 Recording Options The Recorder can be ordered with one of two storage mediums: a standard PC compatible Floppy disk drive or a CompactFlash™ drive. The optional Companion Software supports both media types. 1.2.1 Floppy Disk Drive The Floppy disk drive uses PC compatible 3½...
Page 11: Specifications
Chapter 1 General Description 1.4 Specifications O P E R A T I N G O P E R A T I N G O P E R A T I N G O P E R A T I N G O P E R A T I N G Input Signals Input Signals...
Page 12 Chapter 1 General Description D I S P L A Y D I S P L A Y D I S P L A Y D I S P L A Y D I S P L A Y Display Type Mono Display Type Mono Display Type Mono Display Type Mono...
Page 13 SAFETY NOTICE This Safety Notice has been included to emphasize the danger of hazardous voltages on the REAR TERMINAL PANEL of your instrument. USE EXTREME CAUTION WHEN INSTALLING OR SERVICING your instrument. Please read the entire contents of the Installation and Wiring Chapter before attempting to install or service your instrument.
Page 14 Chapter 2 Installation/Wiring 2.1 Equipment Handling ..........................2-1 2.1.1 Initial Inspection ..........................2-1 2.1.2 Unpacking Procedure ........................2-1 2.1.3 Detected Damage ........................... 2-1 2.1.4 Equipment Return ........................... 2-1 2.1.5 Storage ............................2-1 2.2 Installation ..............................2-2 2.2.1 Panel Mounting ..........................2-3 2.3 Wiring Specifications and Procedures ......................
Page 15: Equipment Handling
2.1.4 Equipment Return Before returning a damaged or malfunctioning instrument to the factory for repairs, contact Customer Service at Omega Engineering. A Return Merchandise Authorization number must be obtained from the factory before returning an instrument for any reason. 2.1.5 Storage For prolonged storage before installation, re-pack the Recorder in the shipping container.
Page 16: Installation
Chapter 2 Installation and Wiring 2.2 Installation The instrument is intended to operate in the following environment: Indoor Use Only Installation Category II per IEC 664 Pollution Degree Level II per UL3111-1 / IEC61010-1 Altitude up to 2,000 m Temperature -10 °C to 50 °C (5 °C to 40 °C for floppy media) operating per UL3111-1 / IEC61010-1 Humidity...
Page 17: Panel Mounting
Chapter 2 Installation and Wiring 2.2.1 Panel Mounting The Recorder should be mounted in a vertical panel to ensure proper operation. Ensure you have the proper clearances and proceed as follows: 2.2.1.1 Cut a panel opening 5.43” x 5.43” [138 mm x 138 mm]. 2.2.1.2 Remove any packaging material from the Recorder.
Page 18 Chapter 2 Installation and Wiring 2.2.1.5 With the Recorder held firmly in place against the panel, install one of the locking bar assemblies by sliding the locking bar notch into the slot on the side of the Recorder enclosure as shown in Figure 2-3.
Page 19: Wiring Specifications And Procedures
Chapter 2 Installation and Wiring 2.3 Wiring Specifications and Procedures 2.3.1 Power Requirements The Recorder operates on any voltage from 100 to 240 Vac +10%, 50/60 Hz enabling it to be used in most countries. The maximum apparent power required by the unit is 35 VA. 2.3.2 Power Connections NOTE: The Recorder is designed to be panel mounted and as such should be considered as...
Page 20: Signal Input Wiring
Chapter 2 Installation and Wiring This unit is equipped with an AC mains fuse internally. If this fuse should blow, it generally indicates a serious problem with the Recorder. THE FUSE SHOULD NOT BE REPLACED BY AN OPERATOR. The fuse is a quick acting 5 x 20mm type rated at 2.0 Amps 250 VAC (~).
Page 21: Thermocouple Inputs
Chapter 2 Installation and Wiring Read the following procedures prior to connecting inputs to the terminals. WARNING: Ensure the power is off before connecting signal inputs to the unit. The plug in screw terminal connectors are of the clamping screw variety, putting even pressure on the signal wire.
Page 22: Relay Output, Contact Input
Chapter 2 Installation and Wiring 2.3.4 Relay Output, Contact Input WARNING To prevent the possibility of electrical shock, use extreme caution when wiring contact output connections. Hazardous potentials may exist on contact output terminals which are floating with respect to instrument ground. These hazardous potentials may be exposed on the rear terminal panel of your instrument.
Page 23: Serial Interface Option
Chapter 2 Installation and Wiring 2.4 Serial Interface Option Data can be accessed to download Configuration files or Data files using the RS232C option and a modem. The RS485 option allows the Recorder to be installed into an existing Modbus network or it can be used to connect up to thirty-one Recorders in series.
Page 24: Ethernet Option
Chapter 2 Installation and Wiring 2.5 Ethernet Option The 10BaseT Ethernet option allows direct connection to a LAN or WAN and the standard TCP/IP protocol enables the transfer of data over the Internet. Figure 2-11 Ethernet Option The RJ45 Connection for the Ethernet are as follows: Receive Differential Pair Transmit...
Page 25 Chapter 3 Getting Started 3.1 Moving About the Screen .......................... 3-1 3.1.1 Status Bar ............................3-1 3.1.1.1 Disk Status ........................... 3-2 3.1.1.2 Status Line ..........................3-2 3.1.1.3 Alarm Acknowledgment ......................3-2 3.1.2 Button Bar ............................3-3 3.1.2.1 VIEW Button ......................... 3-3 3.1.2.2 BROWSE Button ........................
Page 26 3.11 Setting the Disk Full Alarm ........................3-17 3.12 Saving and Loading Configuration Files ....................3-17 3.13 Browsing, Searching, Compressing and Expanding Data ..............3-18 3.13.1 File Browsing ..........................3-19 3.13.2 Searching Data By Value ......................3-19 3.13.3 Searching Data By Time ......................3-20 3.13.4 Interactive Browse Mode ......................
Page 27: Moving About The Screen
Chapter 3 Getting Started CHAPTER 3 The Instrument is an extremely versatile solid state data recorder. It has a liquid crystal display capable of complex graphical representation and either a floppy disk drive or CompactFlash™ card drive for data storage. The unit is easily programmable, and the average user will probably never need to use most of the features or functions available in the Recorder.
Page 28: Disk Status
Chapter 3 Getting Started 3.1.1.1 Disk Status On the left hand side of the Status Bar is the Disk Status information (disk info). This displays the current condition of the disk/card that is currently being used to save data. When the unit is not recording, this area shows REC OFF.
Page 29: Button Bar
Chapter 3 Getting Started 3.1.2 Button Bar The Button Bar, located on the bottom of the screen, contains “buttons” used to operate the unit. When the unit is powered up, the Main Button Bar is shown (see Figure 3-3). The Main Button Bar has four buttons: VIEW, BROWS, JOG and MENU.
Page 30: Graphics Area
Chapter 3 Getting Started 3.1.3 Graphics Area The Graphics Area is used to display various information in different formats including Bar Charts, Digital Windows, Alarm/Event Data or Trend Charts. The Graphics Area view is changed by pressing the VIEW button on the Main Menu Button Bar. The user can also choose whether certain views are horizontally or vertically oriented (see Section 5.5.4 for details).
Page 31: Alarm/Event Data Window
Chapter 3 Getting Started 3.1.3.3 Alarm/Event Data Window The Alarm/Event Window is used to display Alarms/Events Data Log Alarms, Events and Reset information. The Alarm Check On format of the Alarm/Event Window is shown opposite in Figure 3-7. Date Time Point Status Value...
Page 32: Pop Up Windows
Chapter 3 Getting Started Figure 3-8 Vertical Trend Window The vertical trend chart has the scale UNITS and scale value end points across the top. In the example above, the 0 and 1.00 scale value end points indicate that the trace has a value of zero when it is hard to the left and 1.00 when it is hard to the right.
Page 33: Getting To The Points
Chapter 3 Getting Started 3.2 Getting to the Points The Instrument is a 15 point Recorder of which up to twelve channels may be direct or real world inputs. These are typically voltages or currents. Any channel not being used to record or display live inputs may be used as a computational channel.
Page 34: Using Chart Scales
Chapter 3 Getting Started The outputs of the conditioning block are the values represented in the Digital Windows and are real-world engineering values. The outputs of the conditioning block are also fed through to a scale block where a chart scale is applied to each point.
Page 35: Programming
Chapter 3 Getting Started 3.4 Programming While the unit may be programmed remotely, the exercises in the following sections deal with manually programming the unit from the front panel using the display and the touch screen keypad. Various buttons and keys will be presented on the display.
Page 36: Programming Points
Chapter 3 Getting Started 3.6 Programming Points The points are the input or calculated channels that are assigned to the display or are recorded. It is recommended to clear all points before reassigning them in case there is any incorrect point data stored. To clear all points: 1.
Page 37: Input Scale
Chapter 3 Getting Started 3.6.2 Input Scale To set the Input scale: 1. From the Point Setup menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Input scale and then press the ENTER button.
Page 38: Programming Point Scales
Chapter 3 Getting Started 3.7 Programming Point Scales The next exercise is to program the Chart scale assigned to Point 1 in section 3.6.5. To program the Chart scale: 1. From the Command Button Bar press the PROG button. 2. Use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Chart/Pens and then press the ENTER button. 3.
Page 39: Recording Data
Chapter 3 Getting Started 3.8 Recording Data The Recorder saves data, on command, to either a 3½ inch floppy disk or CompactFlash™ card depending on which option is installed. The disks/cards are MSDOS™ compatible and can be read on any IBM PC compatible with a 3½...
Page 40: Programming The Unit For Recording
Chapter 3 Getting Started 3.8.2 Programming the unit for recording There are a number of parameters that need to be set up before actual recording can take place. These are: which channels or points to record, at what rate to record them, and how to record them (Fill Mode and Data Mode).
Page 41: Setting The Data Mode
Chapter 3 Getting Started To set the Fill Mode: 1. From the Record Setup menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Record Modes and then press the ENTER button. 2.
Page 42: Stopping Recording
Chapter 3 Getting Started 3.8.4 Stopping Recording To stop the unit from recording: 1. Follow steps 1 through 3 from Section 3.8.3. 2. Use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Record Off and press the ENTER button. 3.
Page 43: Setting The Disk Full Alarm
Chapter 3 Getting Started 3.11 Setting the Disk Full Alarm It is possible to set a threshold to indicate when the disk is full. The indication is via a pop up window on the screen, or if the relay option is fitted, via a contact closure. The threshold limit may be set by the user to any value between 1 and 100 percent.
Page 44: Browsing, Searching, Compressing And Expanding Data
Chapter 3 Getting Started To Load an existing Configuration: 1. From the default display, press the MENU button to get the Command Menu Button Bar. 2. Press the PROGram button to get the Program menu. 3. Use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Record Setup and then press the ENTER button. 4.
Page 45: File Browsing
Chapter 3 Getting Started 3.13.1 File Browsing File browsing can be done at any time, even when still recording. However, if you are browsing from disk/card while recording, there may be delays in retrieving data from the disk/card as writing to the disk/card has priority over reading from the disk/card.
Page 46: Searching Data By Time
Chapter 3 Getting Started The search direction is determined by the button to the left of the PEN button. This button toggles between BACK and FRWD. BACK will search BACKWARDS in time from the current cursor position (into older data), while FRWD will search FORWARDS in time from the current cursor position (into newer data).
Page 47: Compressing And Expanding Data
Chapter 3 Getting Started When browsing graphics, the Status Bar at the top of the screen shows the Date and Time stamp and actual value for the trace data directly under the cursor. If you are browsing Memory, there will be an “M” in the right hand corner of this line.
Page 48 Chapter 4 Operation 4.1 Instrument Power-up ..........................4-1 4.1.1 Start-up Tests ..........................4-1 4.1.1.1 Memory Test (RAM) ......................4-1 4.1.1.2 ROM Test ..........................4-1 4.1.2 Load Database (user configuration) ....................4-1 4.1.3 Initialize Database .......................... 4-2 4.1.3.1 Smart Init ..........................4-2 4.1.3.2 Full Init ..........................
Page 49: Instrument Power-Up
Chapter 4 Operation 4.1 Instrument Power-up The Recorder executes multiple tests at initial start-up. These tests are referred to as Start-up Tests. While these tests are being performed, the recorder displays “Wait” on the status line. If the system fails any test, an error message will display and an error beep will sound.
Page 50: Initialize Database
Chapter 4 Operation 4.1.3 Initialize Database Three forms of initialization (init) may be performed on the Unit’s Profile database: Smart Init, Full Init and Erase Configuration. The user will not typically see these options unless the unit is being powered up for the first time, or the unit finds an error in the database.
Page 51 Chapter 4 Operation Bargraph/Pens Block Pen Assignments = Set to Pen 1 = point 1, Pen 2 = point 2, Pen 3 = point 3, Pen 4 = point 4, Pen 5 = point 5, Pen 6 = point 6, Pen 7 = point 7, Pen 8 = point 8, Pen 9 = point 9, Pen A = point A, Pen B = point B, Pen C = point C Bar Assignments =...
Page 52: Menus
Chapter 4 Operation 4.2 Menus Additional menus are available for changing the Display, Programming the unit and setting Functions. When the MENU Button (located at the right of the Main button bar at the bottom of the display) is pressed, the Command Menu Button Bar appears as shown in Figure 4-1.
Page 53: Alarms
Chapter 4 Operation 4.2.1.2 Alarms To display an Alarm status: From the Display menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Alarms and press the ENTER button. The display will show the status of the alarms. If no alarms are present, the display will show “NO ALARMS”.
Page 54: Func (Function) Menu
Chapter 4 Operation 4.2.3 FUNC (Function) Menu Record On/Off Activate pt The FUNCtion Menu allows the user to program the unit for numerous functions. Bypass pt The FUNCtion menu may be password protected in which case you will be required Reset pt to enter the password before proceeding.
Page 55: Activate Point
Chapter 4 Operation The current record status is shown in the Disk Status section in the top left corner of the screen. If the unit is not recording, OFF X% will be displayed where X is the percentage of the disk/card used. If the unit is recording data, RECORD X% will be displayed if the unit is set to record manually or TRIG’D X% will be displayed if the unit is triggered to record from an internal alarm or external event.
Page 56: Record Speed
Chapter 4 Operation 4.2.3.6 Record speed The Record speed is the rate at which data is stored to disk/card irrespective to the rate at which it is displayed on the chart. There are two Record speeds for each channel or point: Low or High. The actual Low and High Record speed values are set in the PROGram, Record Setup, Record Rate menu option (Section 5.7.6).
Page 57: Hidden Menu
Chapter 4 Operation 4.2.4 Hidden Menu The Recorder has a Hidden menu that allows the user to Initialize data, calibrate the Analog-to-Digital Converter (ADC Control), adjust the Ambient Temperature sensor reading (T/C comps cal.), perform various Diagnostics, Clear buffers, set the menu inactivity timeout (Menu inact. T/O), perform File maintenance, and set the Flush interval.
Page 58: Diagnostics
Chapter 4 Operation 4.2.4.4 Diagnostics The Diagnostics menu option allows the user to perform diagnostics checks on parts of the Recorder and media. This menu option is for use by qualified service technicians only. If additional diagnostics are needed, please contact the factory. To perform diagnostics: From the Hidden menu use the UP (↑...
Page 59: Menu Inact. T/O
Chapter 4 Operation 4.2.4.6 Menu inact. T/O The Menu inactivity timeout sets the amount of time before any menus are collapsed and the default graphic screen is displayed. Values are 1 (default) to 255 minutes. A value of zero (0) will disable this feature.
Page 60 Chapter 5 Programming 5.1 Introduction .............................. 5-1 5.1.1 Arrow and ENTER Buttons ......................5-1 5.1.2 EXIT Button Uses ........................... 5-1 5.2 Program Menu ............................5-1 5.2.1 Invoking the Program Menu ......................5-1 5.2.2 Passcode Protection ........................5-2 5.2.3 Program Menu Selections ....................... 5-2 5.3 Time and Date ............................
Page 61 5.6.3.3 Modify an Existing Point (Modify pt) ..................5-11 5.6.3.4 Delete an Existing Point (Delete pt) ..................5-11 5.6.4 Programming Point Types ......................5-11 5.6.5 Programming Parameters ......................5-11 5.6.5.1 Point tag ..........................5-11 5.6.5.2 Input scale ........................... 5-12 5.6.5.3 Output scale ........................5-12 5.6.5.4 Exc.
Page 62 5.7.7 Disk Full Alarm ..........................5-35 5.7.7.1 Disk Full Setpoint (Full setpoint) ................... 5-35 5.7.7.2 Disk Full Alarm Output (Full contact #) ................. 5-36 5.7.7.3 Record Mode Alarm Output (Rec. contact #) ................ 5-36 5.7.8 Format Disk ..........................5-36 5.7.9 Save Configuration (CFG) File ....................... 5-36 5.7.10 Load Configuration (CFG) File .....................
Page 63: Introduction
Chapter 5 Programming 5.1 Introduction This chapter provides information for programming the Recorder. Custom programming is required to define functions and allows you to personalize features for performing specific applications and tasks. Programming is simplified with menu-driven prompts which minimize the amount of time required for programming. The programmed information is stored in nonvolatile memory until modified by the user.
Page 64: Passcode Protection
Chapter 5 Programming 5.2.2 Passcode Protection It is possible to protect the programming menu with a Passcode to prevent unauthorized tampering with the unit setup. Once a Passcode is set, any attempt to enter the programming menu by pressing the PROGram button will bring up a numeric keypad and the user will be prompted for the code.
Page 65: Displays
Chapter 5 Programming 5.4 Displays The Display menu option allows the user to program several items dealing with the way data is displayed on the screen. To program the Display options: From the Program menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Displays and Display rate then press the ENTER button.
Page 66: Unit Tag
Chapter 5 Programming 5.4.3.1 Unit tag The Unit tag is the default display that shows in the Status Line at the top of the display. It may be used to identify a place or process being monitored by the Recorder. The Unit tag can be any number or alpha character string of up to 20 characters.
Page 67: Bar Assign
Chapter 5 Programming 5.4.4 Bar assign The Bar assign menu option allows the user to assign specific points to the individual bars in the bar graph display. To assign points to specific Bars: From the Display menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Bar assign and then press the ENTER button.
Page 68: Rotate Scales
Chapter 5 Programming 5.4.8 Rotate Scales The Rotate Scales menu option allows the user to select whether or not the different scales rotate on the graph automatically or manually. In the Auto mode, all programmed scales will rotate at a set interval automatically. In the Manual mode, the displayed scale will not change until the center of the scale is pressed, which will rotate through all programmed scales.
Page 69: Set Speeds
Chapter 5 Programming To program the virtual chart Speed options: From the Chart/Pens menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Speed and then press the ENTER button.
Page 70: Scale Grid
Chapter 5 Programming end points are programmed in exponents with an implicit base 10 in the range 10 to 10 . The graph will be linear between the low and mid points and the mid and high points, and the mid point need not be midway between the low and high points.
Page 71: Pens
Chapter 5 Programming 5.5.3 Pens Using the Pens menu, any point programmed into the Recorder can be assigned to any of the pens. The pens draw the actual traces on the display and are not necessarily the points recorded to disk. You also have the option to assign any abnormal pen condition (Overrange, TCBO, etc.) to go high or go low and to select the width of the pen being displayed on the graph.
Page 72: Points
Chapter 5 Programming 5.6 Points The Points menu option allows the user to program parameters directly affecting Points. The Points are the actual channels in the Recorder and may be direct inputs, conditioned direct inputs (scaled or adjusted), computational channels or external (serial) inputs for a total of 15. To program Points: From the Program menu use the UP (↑...
Page 73: Setup A Point By Copying (Copy Pt)
Chapter 5 Programming 5.6.3.2 Setup a Point by Copying (Copy pt) After selecting the point you wish to copy to, use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Copy pt and press the ENTER button.
Page 74: Input Scale
Chapter 5 Programming To program a Point tag: From the Point Setup menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Point tag and press the ENTER button. The display will show the existing Point tag, if any, as “ POINT TAG “.
Page 75: Decimal Fix
Chapter 5 Programming 5.6.5.5 Decimal fix Certain points must be assigned a decimal place of up to four places or scientific notation. The choices are: 0 = X (no decimal places) 1 = X.X 2 = X.XX 3 = X.XXX 4 = X.XXXX 5 = Scientific Notation (Decimal places affect displayed point data values only) To program the Decimal fix:...
Page 76: Span/Offset
Chapter 5 Programming 5.6.5.8 Span/offset In order for the Span/offset menu option to be available, the user must turn this feature on in the PROGram, Measurement, Span&offset menu option (see Section 5.8.2). Once this option has been turned on, the user can use Span and Offset to compensate for long thermocouple cable runs or thermocouple inaccuracies.
Page 77 Chapter 5 Programming 5.6.5.10.1 Alarm limits (types) For all inputs other than Linear Dry Contact or Conditional, the Alarm types are:None, High, Low, Rate, or Abnormal. For Linear Dry Contacts the Alarm types are: None, Open, Close or Abnormal. For Conditional Inputs, the Alarm types are: None, True, False or Abnormal.
Page 78 Chapter 5 Programming c. Low Alarm Type Low Alarms become active when the input is lower than the set point. To set the Alarm Type as Low: Use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Type=low and press the ENTER button. You will be prompted with “low XX.XX ”.
Page 79: Chart Scale
Chapter 5 Programming g. True or False Alarm Types NOTE: True and False Alarm Types are available for Conditional Point types ONLY. True and False Alarm conditions become active when a Boolean expression is True or False respectively. No set point is required. To set a True or False Alarm Type: Use the UP (↑...
Page 80: Output Mode
Chapter 5 Programming 5.6.5.12 Output mode The Output mode option allows the user to program a point to display the Time Period Average or Rate of Change. To program the Output mode: From the Point Setup menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Output mode and press the ENTER button.
Page 81: Set Equation
Chapter 5 Programming 5.6.5.13 Set equation The Set equation option is only available for Calculated-Equation points. The user can program equations using the following symbols: P1 to PF are used to represent Points (must be previously programmed) K1 to KF are used to represent Constants (must be previously programmed) is a RIGHT Parenthesis is Add...
Page 82 Chapter 5 Programming 5.6.5.15.1 Auto reset When programming High peak, Low peak, Time average, Gated timer and Totalize points, the system allows an Auto reset function. If Auto reset is disabled, resettable points may only be reset manually. If Auto reset is set up, the point being programmed will reset at programmed intervals, from once a minute to once a month.
Page 83 Chapter 5 Programming numeric keypad to enter the desired start seconds (00 to 59) and press the ENTER button. The programmed start time will be displayed. If the start time displayed is correct, press the ENTER or YES button to proceed to the interval. After the start time is set, you will be prompted with “intrvl XX:XX:XX”.
Page 84: Time Period
Chapter 5 Programming 5.6.5.15.2 Event reset The Event reset option allows Calculated Points to be programmed to reset upon some external Event via the optional digital inputs on the rear panel. When programming the Event reset, the Event number is the digital input number for that external Event (1, 2 or 3). Selecting 0 disables the Event reset. To set the Event reset function: From the Reset control menu use the UP (↑...
Page 85: Low Cutoff
Chapter 5 Programming 5.6.5.19 Low cutoff This function allows the user to program a Low flow cutoff. If Totalization is not wanted below a predetermined flowrate, the Low cutoff can be set at that rate and Totalization will be shut off if the point level falls below the preset value.
Page 86: Linear Current/Voltage Point Types
Chapter 5 Programming 5.6.6 Linear Current/Voltage Point Types The Recorder accepts five types of voltage linear inputs: 150mV, 1.25V, 2.5V, 12.5V and 25V and three types of linear current inputs: 4 to 20mA, 0 to 20mA and 10 to 50mA. NOTE: The Dry contact Point Type is described in Section 5.6.7.
Page 87: Industrial Square Root Current/Voltage Point Types
Chapter 5 Programming 5.6.8 Industrial Square Root Current/Voltage Point Types The Recorder accepts five voltage square root extraction ranges: 150mV sqrt, 1.25 Volt sqrt, 2.5 Volt sqrt, 12.5 and 25 Volt sqrt and three types of linear current square root extraction ranges: 4 to 20mA sqrt, 0 to 20mA sqrt and 10 to 50mA sqrt.
Page 88: Thermocouple (T/C) Point Types
Chapter 5 Programming Output Scale - All Logarithmic linear current and voltage inputs must be assigned low and high output scale endpoints. The endpoints are the exponent values (the x in 10 ) between +25 to -25. When programming the Output scale, after selecting the desired number of places, you will be prompted with “lo exp→XXXX←”.
Page 89: Equation
Chapter 5 Programming Calculations can be performed on current point values of a single point or a group of points if set in Equations. The calculations are performed after each scan of all measured points and the results are stored until the next point scan.
Page 90: Low (Lo) Peak
Chapter 5 Programming NOTE: When Hi peak, Lo peak or Time average Calculated point types are reset, the new value will be the current Basepoint value at the time of reset. 5.6.12.3 Low (Lo) peak Lo peak Calculated Point Types keep track of the lowest data of a given point. This data is stored until some form of reset occurs.
Page 91: Time Average (Avg)
Chapter 5 Programming 5.6.12.6 Time Average (avg) A Calculated Time average point calculates the continuous average of the measured or processed value of a selected point. The result is the weighted average of the present reading and the previous average value. Therefore, this type of point can be used to smooth out noisy or erratic signals and to attenuate the effects of sudden transitions.
Page 92: Conditional Point Types
Chapter 5 Programming Programming Parameters - Once a point has been programmed as a Calculated-Totalize Point Type, the user is presented with the following parameters: Point tag Section 5.6.5.1 Decimal fix Section 5.6.5.5 Basepoint Section 5.6.5.14 Flowrate Section 5.6.5.18 Eng units Section 5.6.5.9 Reset contrl Section 5.6.5.15...
Page 93: Record Setup
Chapter 5 Programming Programming Parameters - Once a point has been programmed as an External point type, the user is presented with the following parameters: Point tag Section 5.6.5.1 Input scale Section 5.6.5.2 Output scale Section 5.6.5.3 Timeout Section 5.6.5.21 Eng units Section 5.6.5.9 Alarms...
Page 94: Record Modes
Chapter 5 Programming 5.7.2 Alarm on/off This option enables the user to enable or disable the recording of Alarm and Event information to disk/card. To enable or disable the recording of Alarm/Event information: From the Record Setup menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Alarm on/off and press the ENTER button.
Page 95: Data Mode All
Chapter 5 Programming 5.7.3.2 Data Mode All There are four Data Modes to choose from: Instantaneous, Average, Peak, and Valley. The Data Mode can be applied to all points simultaneously (Data Mode All) or it can be set independently for each individual point (Data Mode Indiv.).
Page 96: Points (Trigger)
Chapter 5 Programming 5.7.5 Points (Trigger) The user may select which of the fifteen available points are to be used to trigger the Record Mode on or off. Any or all points may be used to trigger recording. When activated, any alarm condition for the point in question will start the unit recording, provided the unit is armed to trigger.
Page 97: Individual Rates
Chapter 5 Programming 5.7.6.2 Individual Rates To set the individual Record Rates per channel: From the Record Rate menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Individual Rate and press the ENTER button.
Page 98: Disk Full Alarm Output (Full Contact #)
Chapter 5 Programming 5.7.7.2 Disk Full Alarm Output (Full contact #) If the relay option is fitted, the Disk Full Alarm can trigger a contact closure. To set the Disk Full Alarm to trigger a contact closure: From the Disk Full Alarm Setup menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Full contact # and press the ENTER button.
Page 99: Load Configuration (Cfg) File
Chapter 5 Programming To save the configuration file: Ensure that a formatted disk/card is in the drive. From the Record Setup menu, use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Save CFG File press the ENTER button. A pop up window will display “save config=NO*”. Press the YES button to change the display to read “save config=YES?”...
Page 100: Measurement
Chapter 5 Programming To enter a Filename: From the Record Setup menu, use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Filename and press the ENTER button. You will be presented with a display that shows “ FILENAME ” where FILENAME is the current filename.
Page 101: Digital I/O
Chapter 5 Programming 5.9 Digital I/O The Digital I/O (Optocoupled Inputs, Relay Outputs) option must be fitted in order for the options in this section to work. If you do not have the option fitted you should ensure that all inputs are programmed off. The Digital I/O menu option allows the user to select what type of signal opens the output contacts and what function the input signals will perform.
Page 102: Reflash
Chapter 5 Programming To turn the Failsafe option on or off: From the Contact outs menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Failsafe and press the ENTER button.
Page 103: Record On/Off
Chapter 5 Programming 5.9.2.3 Record on/off The Record on/off option allows the external inputs to be used to stop and start the recording to disk/card. If the switch is open (inactive), the recording is stopped. If the switch is closed (active), the recording is started.
Page 104: Com Ports
Chapter 5 Programming opening and for each switch closing. The default messages are OPEN and CLOSE. To turn Event messages off set the message to “” (null) and it will not be displayed or logged. NOTE: If the Event messages are changed after an Event file has been opened on the disk, it is necessary to rename the Alarm file or use a new disk/card in order to reflect the new Event message in the file.
Page 105: Port Setup
Chapter 5 Programming 5.10.1.1.2 Modbus ASCII Modbus ASCII is an ASCII output. To select Modbus ASCII: From the Protocol menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to select Modbus asc and press the ENTER button to activate.
Page 106: Network Id
Chapter 5 Programming To setup the Port: From the Com Port Setup menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Port setup and press the ENTER button. The Baud Rate menu will display a list of nine options: 300 baud, 1200 baud, 2400 baud, 4800 baud, 9600 baud, 19200 baud, 38400 baud, 57600 baud and 115200 baud.
Page 107: Network Id
Chapter 5 Programming To set the Subnet mask: From the Ethernet menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Subnet mask and press the ENTER button. Use the multi-page alphnumeric keypad to enter a Subnet mask and then press the ENTER button to return to the Ethernet menu.
Page 108: Modem Setup
Chapter 5 Programming 5.10.3 Modem Setup This menu option allows the user to enable and set up a modem string for a modem connected to the RS232 port. A modem is not supported on the RS485 port. If enabled, the start up string is sent to the modem to set it in the following mode: •...
Page 109: System
Chapter 5 Programming Refer to the modem manual for other modems. The modem needs to be set up as follows. Operation Rockwell etc. US Robotics, etc Modem Attention call Load factory defaults &F &F Ignore DTR line &D0 &D0 Quiet, no response to DTE Auto answer on the first ring S0=1 S0=1...
Page 110: Alternate (Alt.) Language
Chapter 5 Programming To enter or change a Passcode: From the System menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Passcodes and then press the ENTER button. The Passcodes menu will be displayed with two options: Function key (to protect the FUNCtion menu) and Program key (to protect the PROGram and Hidden menus).
Page 111: Save English
Chapter 5 Programming 5.11.3.3 Save English The Save English menu option allows the user to save the English Language file to disk/card for editing. To Save the English Language file to disk/card: From the Alternate Language menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Save English and then press the ENTER button.
Page 112: Data Interval
Chapter 5 Programming 5.11.4.3 Data Interval The Data Interval option allows the user to set the time interval (in minutes) at which Data or Events are sent to the printer. To set the Data Interval: From the Printer out menu use the UP (↑ ↑ ↑ ↑ ↑ ) or DOWN (↓ ↓ ↓ ↓ ↓ ) button to highlight Data Interval and then press the ENTER button.
Page 113: Characters/Line
Chapter 5 Programming An example of the Printer out option is shown below: Printer out menu option Setting Data print data=YES Events print events=YES Data Interval minutes→0← Characters/Line characters/line→40← Data Lines data lines→20← 10/15/01 Unit Tag 11:30:00 CH 1 0 SECS CH 2 5 Secs CH 3...
Page 114 SAFETY NOTICE This Safety Notice has been included to emphasize the DANGER OF HAZARDOUS VOLTAGES on the REAR TERMINAL PANEL of your instrument. USE EXTREME CAUTION WHEN INSTALLING OR SERVICING your instrument. Please read the entire contents of the Installation and Wiring Chapter of this manual before attempting to install or service your instrument.
Page 115 Chapter 6 Calibration 6.1 Introduction .............................. 6-1 6.1.1 Routine Calibration .......................... 6-1 6.1.2 Calibration Equipment ........................6-1 6.2 Zero Calibration ............................6-1 6.3 Scale Calibration ............................6-2 6.3.1 Calibration Scales ........................... 6-2 6.3.1.1 Connecting Voltage Source ....................6-2 6.3.1.2 Programming Calibration Scales .................... 6-2 6.3.1.3 Calibrating the Voltage Ranges ....................
Page 116: Introduction
Chapter 6 Calibration 6.1 Introduction This chapter includes the procedures to calibrate the Analog-to-Digital Converter (ADC) circuit board and the RTD current source. The actual calibration constants are automatically stored in Flash Memory on the Analog-to-Digital Converter boards. WARNING: Do not attempt to perform calibration unless you are fully prepared to do so. Incorrect procedures can destroy factory calibration.
Page 117: Scale Calibration
Chapter 6 Calibration 6.3 Scale Calibration The Recorder menu supports full calibration for the voltage and current input ranges of the instrument. Each range requires a unique calibration constant, which is automatically calculated during the calibration of each range. 6.3.1 Calibration Scales Follow the procedures below to Calibrate Scales.
Page 118: Rtd Current Calibration
Chapter 6 Calibration 6.4 RTD Current Calibration The ADC current source is used for RTD measurements and needs calibration for the RTD’s. 6.4.1 Calibrating the RTD Current The following procedure contains step-by-step instructions on Calibrating the Current source. A 250Ω ±0.05% resistor must be connected across the + and - terminals of a free input and the current source return path C must be connected to the - input terminal.
Page 119 Chapter 7 Get Data Software 7.1 Overview ..............................7-1 7.2 Microsoft Windows™ Installation ......................7-1 7.3 The Menu ..............................7-1 7.3.1 Export ............................. 7-1 7.3.1.1 Exported File Format – Graph Data ..................7-1 7.3.1.2 Export Dialog Box ......................... 7-1 7.3.1.2.1 Start Time and Date ..................... 7-2 7.3.1.2.2 End Time and Date ......................
Page 120: Overview
Chapter 7 Get Data Software 7.1 Overview The Get Data Software is a 16 bit software package that runs under the Microsoft Windows™ 95/ 98/ ME/ NT/ XP Operating Systems and enables the user to export files to spreadsheets such as Excel and Quattro .
Page 121: Start Time And Date
Chapter 7 Get Data Software 7.3.1.2.1 Start Time and Date Select the time and date to start exporting data, thus allowing part of the file to be exported. 7.3.1.2.2 End Time and Date Select the time and date to stop exporting data. 7.3.1.2.3 Time Format Select the time format either as Sample number, where each value output will be numbered;...
Page 122: Help
Chapter 7 Get Data Software 7.3.2 Help 7.3.2.1 About Opens a window that gives the title of the program, version number, and company information. 7.3.2.2 Contents Shows the “Contents” page of the help file. 7.4 Tutorial 7.4.1 Scroll bars A scroll bar is used to move the object in the associated window (lists, etc). There are two types of scroll bars, vertical and horizontal.
Page 123: Appendix
Chapter 7 Get Data Software 7.5 Appendix 7.5.1 File Types The software works with various file types, both on the data card and from the computer disk. Some of the file types are PC specific, while others are used both by the computer and the Recorder. The files may have any name up to a maximum of eight characters.
Page 124 A p p e n d i x A – C o n f i g u r i n g a 1 - 5 V d c i n p u t f o r a 0 - 2 5 0 p s i g p r e s s u r e t r a n s d u c e r A p p e n d i x A C o n f i g u r i n g a 1 - 5 V d c i n p u t f o r a 0 - 2 5 0 p s i g p r e s s u r e t r a n s d u c e r M E N U...
Page 125 A p p e n d i x A – C o n f i g u r i n g a 1 - 5 V d c i n p u t f o r a 0 - 2 5 0 p s i g p r e s s u r e t r a n s d u c e r I f y o u a r e c o n f i g u r i n g t h e R e c o r d e r f o r t h e f i r s t t i m e , a m e n u S e t u p p t C o p y p t...
Page 126 A p p e n d i x A – C o n f i g u r i n g a 1 - 5 V d c i n p u t f o r a 0 - 2 5 0 p s i g p r e s s u r e t r a n s d u c e r T h e n u m e r i c k e y p a d w i l l n o w p r o m p t y o u f o r t h e e n d o f y o u r i n p u t s i g n a l .
Page 127 A p p e n d i x A – C o n f i g u r i n g a 1 - 5 V d c i n p u t f o r a 0 - 2 5 0 p s i g p r e s s u r e t r a n s d u c e r U s i n g t h e u p / d o w n a r r o w k e y s s e l e c t E n g u n i t s a n d t o u c h E N T E R .
Page 128 A p p e n d i x A – C o n f i g u r i n g a 1 - 5 V d c i n p u t f o r a 0 - 2 5 0 p s i g p r e s s u r e t r a n s d u c e r Y o u w i l l b e p r o m p t e d w i t h s c a l e ? ( 1 A - 2 H w i l l a l s o b e d i s p l a y e d ) U s e t h e u p / d o w n a r r o w k e y s t o s c r o l l t h r o u g h t h e d i f f e r e n t s c a l e s u n t i l 1 A i s d i s p l a y e d a n d t h e n t o u c h...
Page 129 A p p e n d i x A – C o n f i g u r i n g a 1 - 5 V d c i n p u t f o r a 0 - 2 5 0 p s i g p r e s s u r e t r a n s d u c e r →...
Page 130 A p p e n d i x B – C o n f i g u r i n g a 4 - 2 0 m A i n p u t t o e q u a l 0 t o 1 5 0 g p m A p p e n d i x B C o n f i g u r i n g a 4 - 2 0 m A i n p u t t o e q u a l 0 t o 1 5 0 g p m M E N U...
Page 131 A p p e n d i x B – C o n f i g u r i n g a 4 - 2 0 m A i n p u t t o e q u a l 0 t o 1 5 0 g p m I f y o u a r e c o n f i g u r i n g t h e R e c o r d e r f o r t h e f i r s t t i m e , a m e n u h a v i n g S e t u p p t , C o p y p t a n d R e s t o r e p t w i l l a p p e a r .
Page 132 A p p e n d i x B – C o n f i g u r i n g a 4 - 2 0 m A i n p u t t o e q u a l 0 t o 1 5 0 g p m p l a c e s ? A m e n u p r o m p t i n g y o u w i l l a p p e a r .
Page 133 A p p e n d i x B – C o n f i g u r i n g a 4 - 2 0 m A i n p u t t o e q u a l 0 t o 1 5 0 g p m A l m l i m i t s U s i n g t h e u p / d o w n a r r o w k e y s s e l e c t a n d t o u c h...
Page 134 A p p e n d i x B – C o n f i g u r i n g a 4 - 2 0 m A i n p u t t o e q u a l 0 t o 1 5 0 g p m E X I T T o u c h t w i c e t o g e t b a c k t o t h e m e n u b e g i n n i n g w i t h...
Page 135 A p p e n d i x B – C o n f i g u r i n g a 4 - 2 0 m A i n p u t t o e q u a l 0 t o 1 5 0 g p m U s e t h e u p / d o w n a r r o w k e y s t o s e l e c t S c a l e e n d s a n d t o u c h...
Page 136 A p p e n d i x B – C o n f i g u r i n g a 4 - 2 0 m A i n p u t t o e q u a l 0 t o 1 5 0 g p m T h e p h o t o b e l o w s h o w s t h e p r o p e r c o n n e c t i v i t y f o r a 4 - 2 0 m A s i g n a l .
Page 137 A p p e n d i x C – C o n f i g u r i n g a J t y p e T / C i n p u t f o r a 1 0 0 - 7 5 0 ° C r a n g e A p p e n d i x C C o n f i g u r i n g a J t y p e T / C i n p u t f o r a 1 0 0 –...
Page 138 A p p e n d i x C – C o n f i g u r i n g a J t y p e T / C i n p u t f o r a 1 0 0 - 7 5 0 ° C r a n g e I f y o u a r e c o n f i g u r i n g t h e R e c o r d e r f o r t h e f i r s t t i m e , a m e n u h a v i n g S e t u p p t , C o p y p t a n d R e s t o r e p t w i l l a p p e a r .
Page 139 A p p e n d i x C – C o n f i g u r i n g a J t y p e T / C i n p u t f o r a 1 0 0 - 7 5 0 ° C r a n g e P o i n t t a g T h e m e n u s t a r t i n g w i t h w i l l a g a i n b e d i s p l a y e d .
Page 140 A p p e n d i x C – C o n f i g u r i n g a J t y p e T / C i n p u t f o r a 1 0 0 - 7 5 0 ° C r a n g e S c a l e s U s e t h e u p / d o w n a r r o w k e y s t o s e l e c t a n d t o u c h...
Page 141 A p p e n d i x C – C o n f i g u r i n g a J t y p e T / C i n p u t f o r a 1 0 0 - 7 5 0 ° C r a n g e A n a l p h a n u m e r i c s c r e e n w i l l a p p e a r a n d y o u c a n e n t e r D E G C .
Page 142 A p p e n d i x D – C o n f i g u r i n g t h e T o t a l i z e r A p p e n d i x D C o n f i g u r i n g t h e T o t a l i z e r B e f o r e s e t t i n g u p a m a t h c h a n n e l f o r t o t a l i z a t i o n , y o u m u s t f i r s t h a v e a “...
Page 143 A p p e n d i x D – C o n f i g u r i n g t h e T o t a l i z e r I f y o u a r e c o n f i g u r i n g t h e R e c o r d e r f o r t h e f i r s t t i m e , a m e n u S e t u p p t C o p y p t R e s t o r e p t...
Page 144 A p p e n d i x D – C o n f i g u r i n g t h e T o t a l i z e r Y o u w i l l b e p r o m p t e d w i t h p l a c e s >...
Page 145 A p p e n d i x D – C o n f i g u r i n g t h e T o t a l i z e r T h e a l p h a n u m e r i c k e y p a d s h o u l d n o w a p p e a r a l l o w i n g y o u t o e n t e r u p t o 5 c h a r a c t e r s t o d e s c r i b e t h e e n g i n e e r i n g u n i t s f o r t h i s p a r t i c u l a r p o i n t .
Page 146 A p p e n d i x D – C o n f i g u r i n g t h e T o t a l i z e r Y o u w i l l n o w b e b a c k a t t h e R e s e t C o n t r o l m e n u . U s e t h e R e s e t p r i n t u p / d o w n a r r o w k e y s t o s e l e c t a n d t o u c h...
Page 147 Appendix E Setting the Jumpers for the 3 or 6 Channel Mechanical or Solid State Relay WARNING: Due to hazardous voltages on the Rear Terminal Panel, use extreme caution when installing or servicing your instrument. Please read the entire contents of the Installation and Wiring Chapter before attempting to install or service your instrument.
Page 148 Install Relay Option To install the 3 or 6 Channel Mechanical or Solid State Relay Option into the DIN Standard [144 mm x 144 mm] Data Recorder: 1. Unplug the recorder. 2. Plug the connector and metal tabs of the Relay option into the recorder case as shown in Figure 2. 3.
Page 149 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
Page 150 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at www.omega.com TEMPERATURE Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies Wire: Thermocouple, RTD & Thermistor Calibrators & Ice Point References Recorders, Controllers & Process Monitors...

Omega RD8800 User Manual

Chapter 1 General Description

Chapter 2 Installation/Wiring

Chapter 3 Getting Started

Chapter 4 Operation

Chapter 5 Programming

Chapter 6 Calibration

Chapter 7 Get Data Software

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for Omega RD8800

Summary of Contents for Omega RD8800

Table of Contents
