Mainboard Layout - powersoft M-Drive Service Manual

2. Removing the Module's Cover

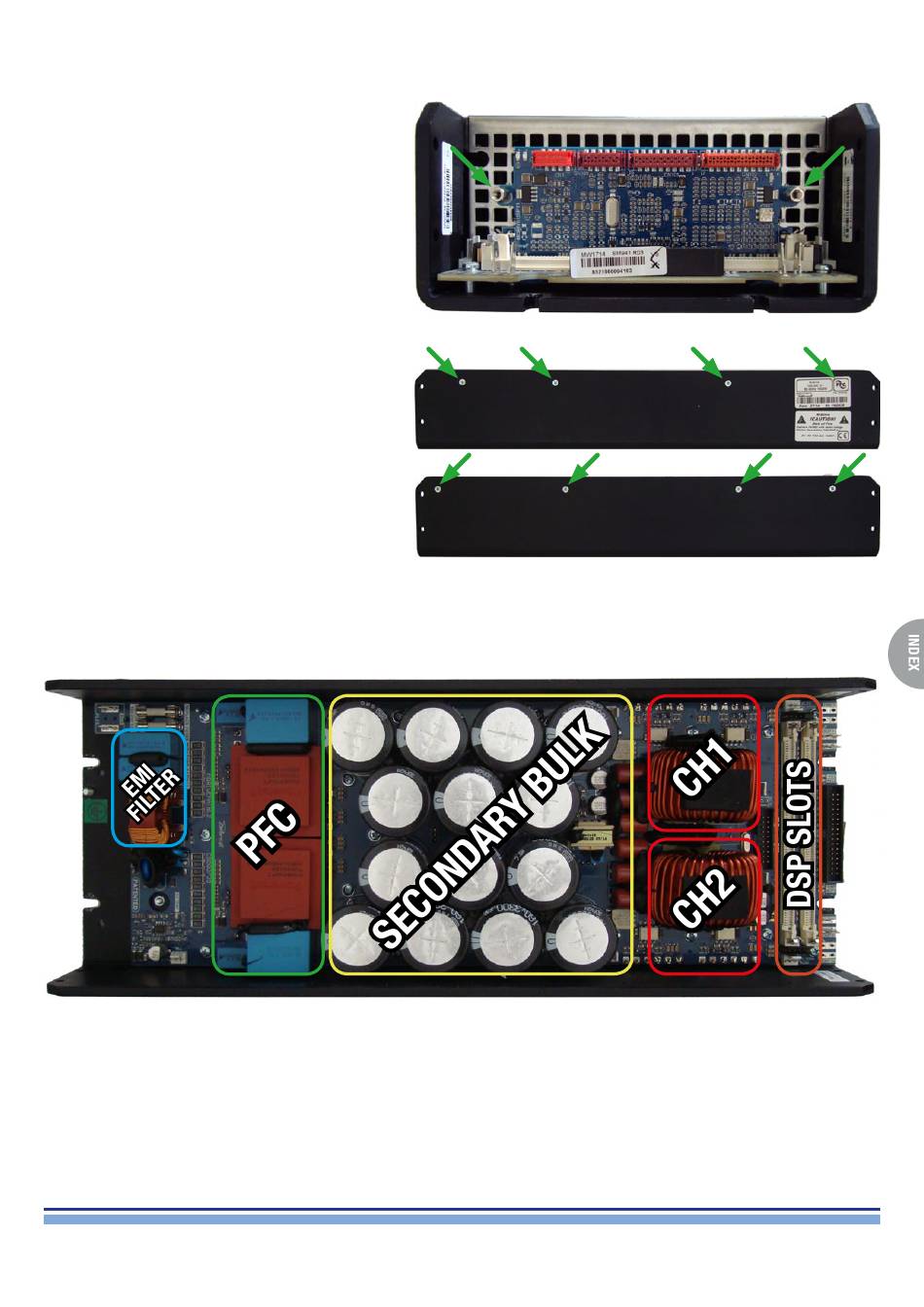

By means of an M5 Socketed Screwdriver, remove the
two metal spacers highlighted on (Fig. 1) and remove the
DSP Board by unclipping it from the retaining brackets.
Using a PH1 Phillips Head Screwdriver, unscrew all 8
screws highlighted on (Fig. 2).
Note that one of the screws could be hidden underneath
the label.
Gently lift the cover from the DSP board side, disconnect
the 2 fans power cables.
It is now possible to safely remove the board.
3. Main Board Layout:
M-Drive | SERVICE MANUAL
(Fig. 1)
(Fig. 2)
5
