9. Main Board Disassembly:

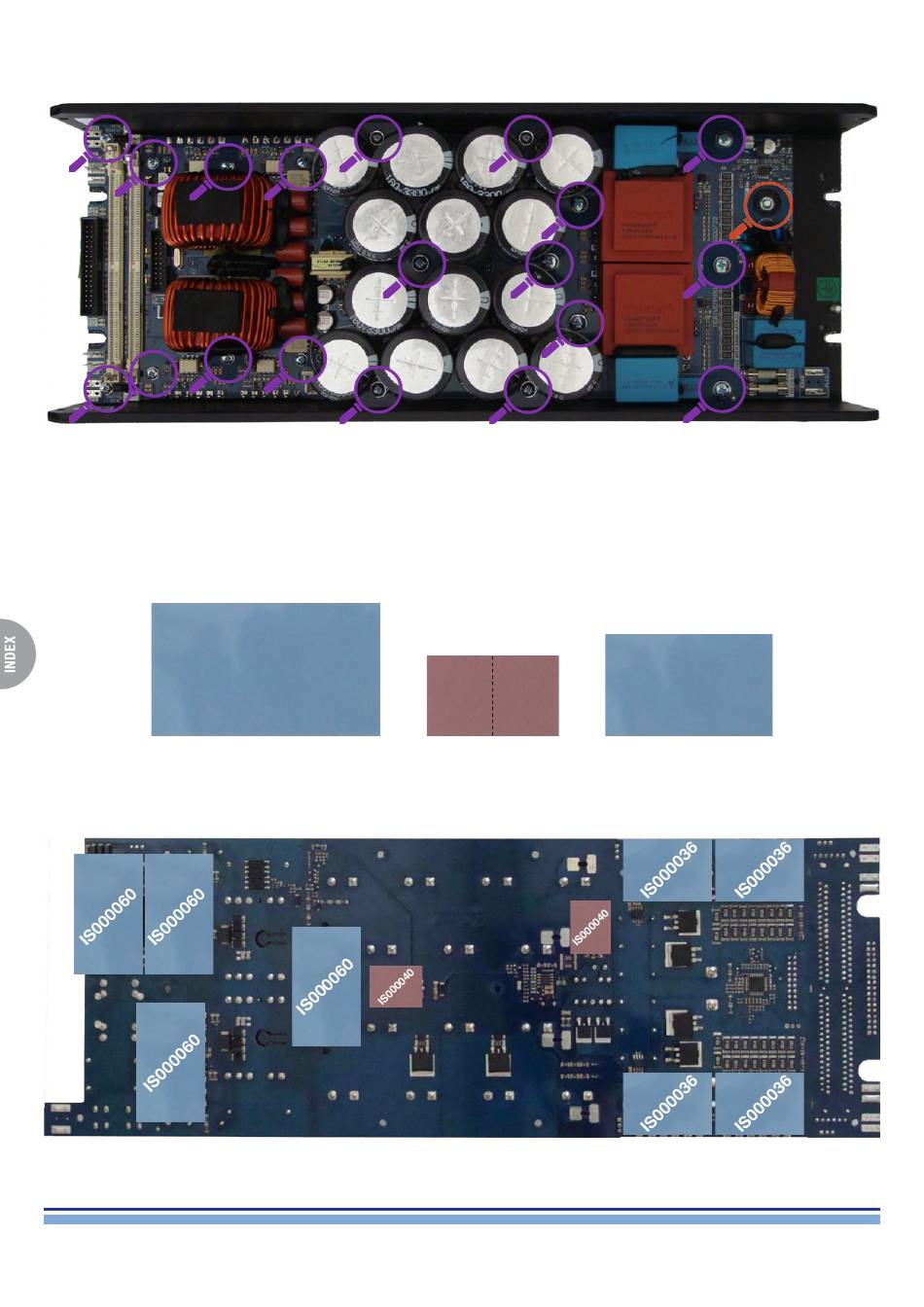

By means of a PH1 Phillips Head screwdriver, screw all 19 screws highlighted in purple.
Remove the nut marked orange with a M5 socketed hex screwdriver.
Gently lift the board.
10. SilPad Replacement:
IS000060 52x30mm
IS000040 18x30mm
IS000036 38x23mm
Always replace all silpads once the service procedure has been ultimated.
Cut the IS000040 SilPad with a pair of sharp scissors.
