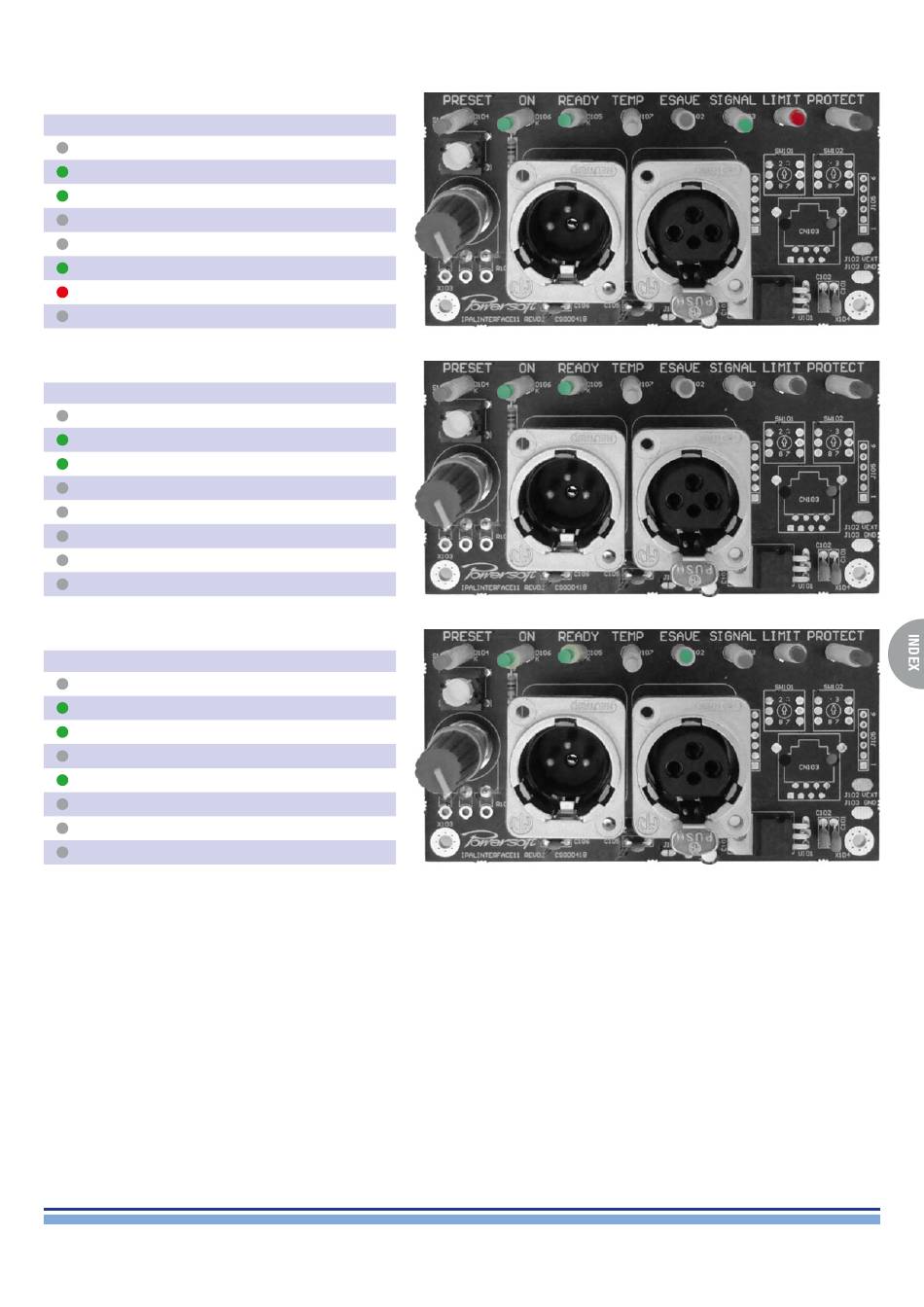

DPC Board LED Status Charts
LED Configuration at Startup
Color
Label
Green
PRESET
Green
ON
Green
READY
Yellow
TEMP
Green
ESAVE
Green
SIGNAL
Red
LIMIT
Red
PROTECT
LED Configuration after 3 seconds
Color
Label
Green
PRESET
Green
ON
Green
READY
Yellow
TEMP
Green
ESAVE
Green
SIGNAL
Red
LIMIT
Red
PROTECT
LED Configuration after 30 seconds
Color
Label
Green
PRESET
Green
ON
Green
READY
Yellow
TEMP
Green
ESAVE
Green
SIGNAL
Red
LIMIT
Red
PROTECT
LED Status
OFF
SOLID ON
SOLID ON
OFF
OFF
SOLID ON
SOLID ON
OFF
LED Status
OFF
SOLID ON
SOLID ON
OFF
OFF
OFF
OFF
OFF
LED Status
OFF
SOLID ON
SOLID ON
OFF
OFF
OFF
OFF
OFF
M-Drive | SERVICE MANUAL
15
