powersoft M-Drive Service Manual page 19

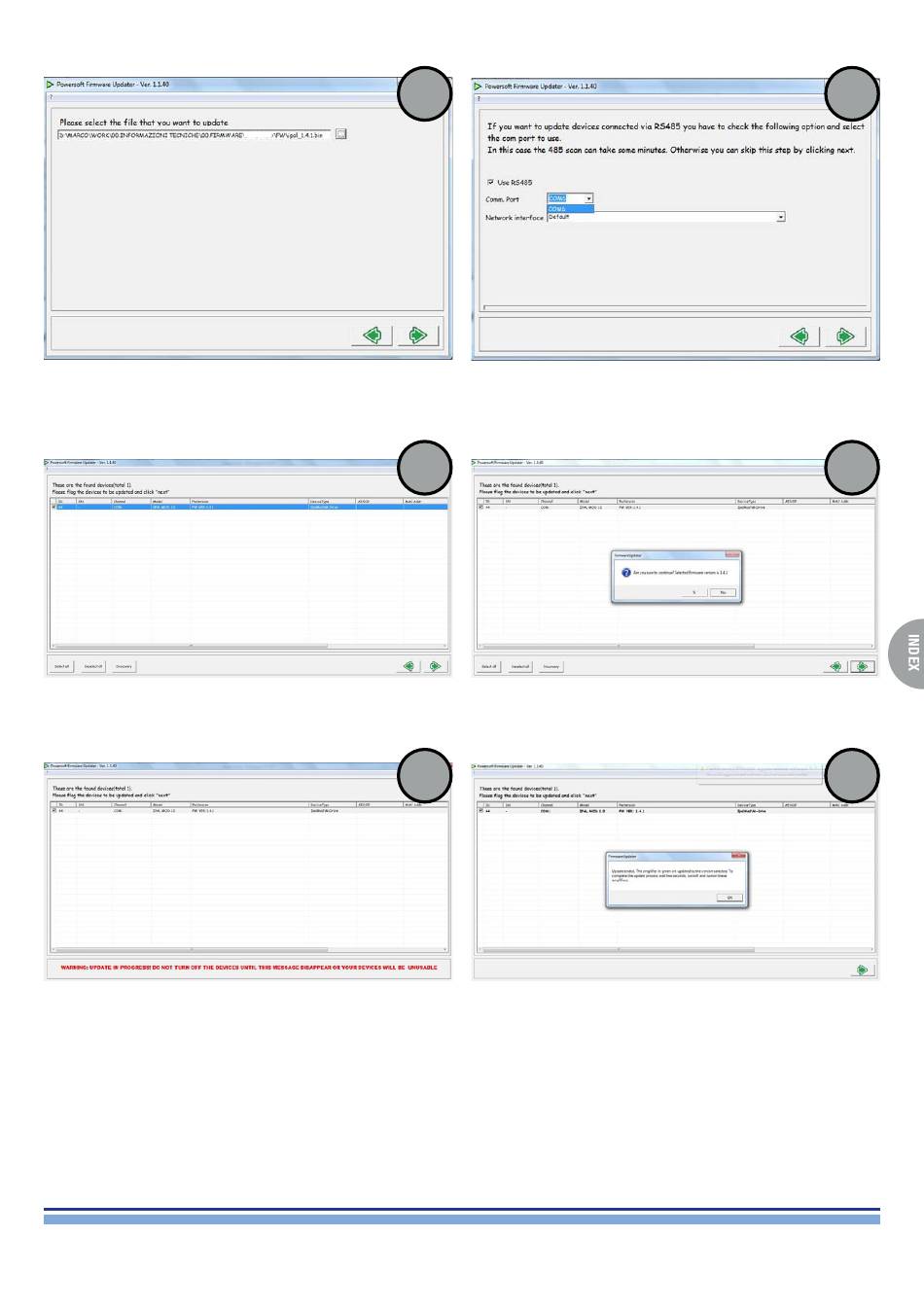

Select the .bin file (available on the restricted area)
Select the module to be updated.
Click on the right arrow.
Wait for the Red Text to disappear (approx 3 minutes)
Once the update has been completed, disconnect the module from the mains power supply and wait a few minutes in order to discharge
the internal capacitors bank.
Cycle the module (power it on, wait for the completion of the startup procedure and switch it off)
The Firmware Update Procedure is completed.
2
m_drive
4
6
Tick the "Use RS485" Box, and select the assigned COM Port
Click on the right arrow, the LED on the RS485 should be blinking
Click on "YES" to confirm the FW Update Procedure.
Once the Update is complete, the program will prompt a confir-
mation box, click OK. The Update is now complete.
M-Drive | SERVICE MANUAL
red.
3
5
7
19
