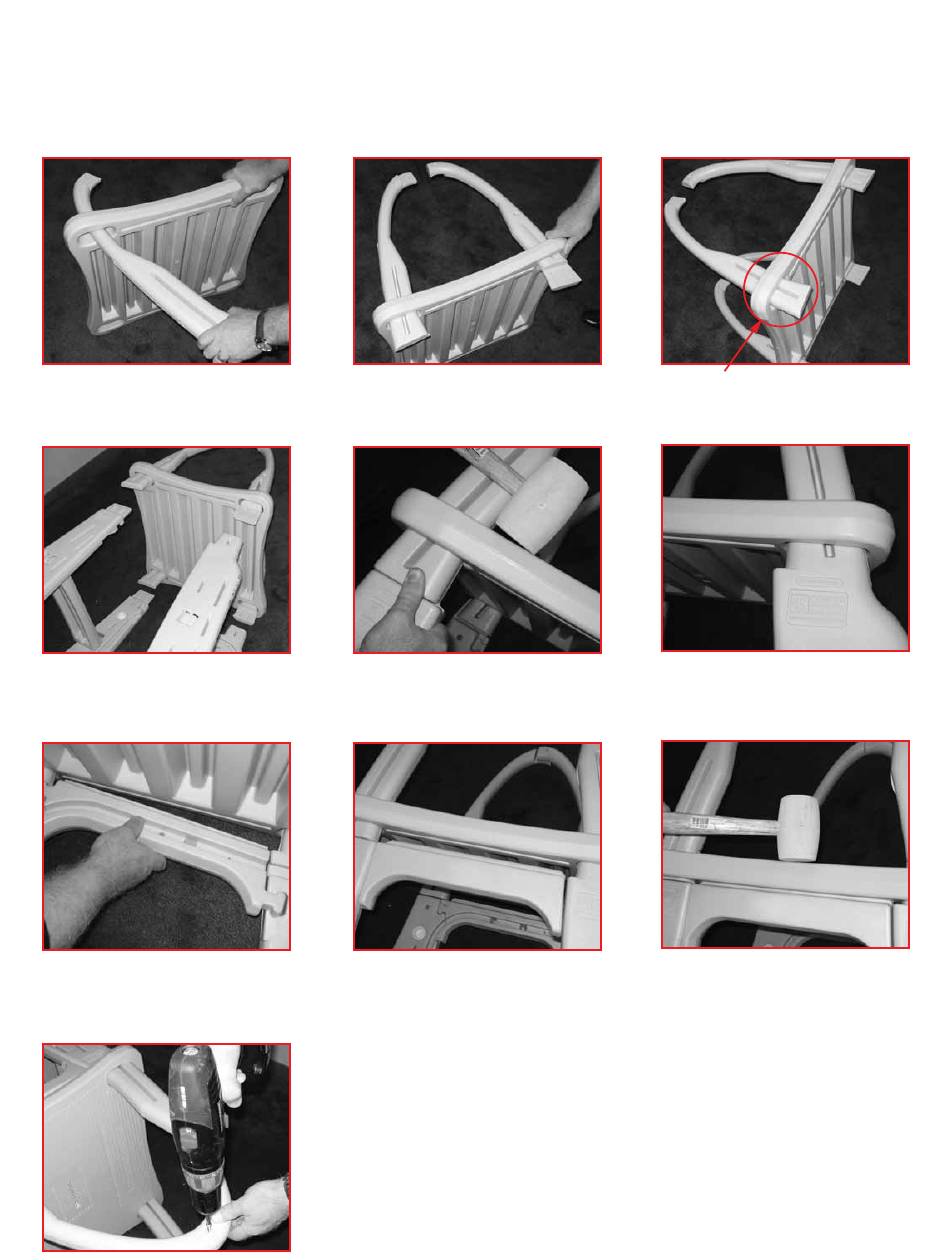

STEP 3:
HANDRAILS/DECK
#1-3: Push handrails up through bottom of deck leaving about 3" exposed.
#4: Align the inside/outside
rails with deck/handrail.
#7-8: Install right and left ladder bridges.
Tools needed:
Parts needed:
#5-6: Partially slide deck down locking handrails onto
ladder sections.
#10: Overlap the flat
sections at top of the
handrails and connect
using 1-#10 x 1-1/4"
self tapping screw.
Repeat for other
handrail.
rubber mallet, cordless drill w/Phillips driver
1- Deck
4- Handrails
1- Left bridge with lock assembly
1- Right bridge
2- #10 x 1-1/4" self tapping screws
#9: Finish tapping deck all
the way down until engaged
on to bridge.
