STEVAL-ISF002V1 hardware description
3.4

Connectors

The STEVAL-ISF002V1 has five connectors (see
●
J7 for V
●
J8 for V
●
J10 to provide 15 Vdc if the VIPER12 is bypassed
●
J15 for connection with the control board (MC + PFC connector)
●
J16 for connection with a 3-ph inverter board (MC connector only)
3.4.1

Vin connector

Refer to J7 of
Figure 8.
3.4.2

Vout connector

Refer to J8 of
Figure 9.
3.4.3

15 V connector

Refer to J10 of
This connector can be used to provide 15 V to the STEVAL-ISF002V1 if the VIPER12 is
bypassed. For correct polarity, follow the board's serigraphy.
3.4.4

MC + PFC connector

Refer to J15 of
16/62
www.BDTIC.com/ST
in
in

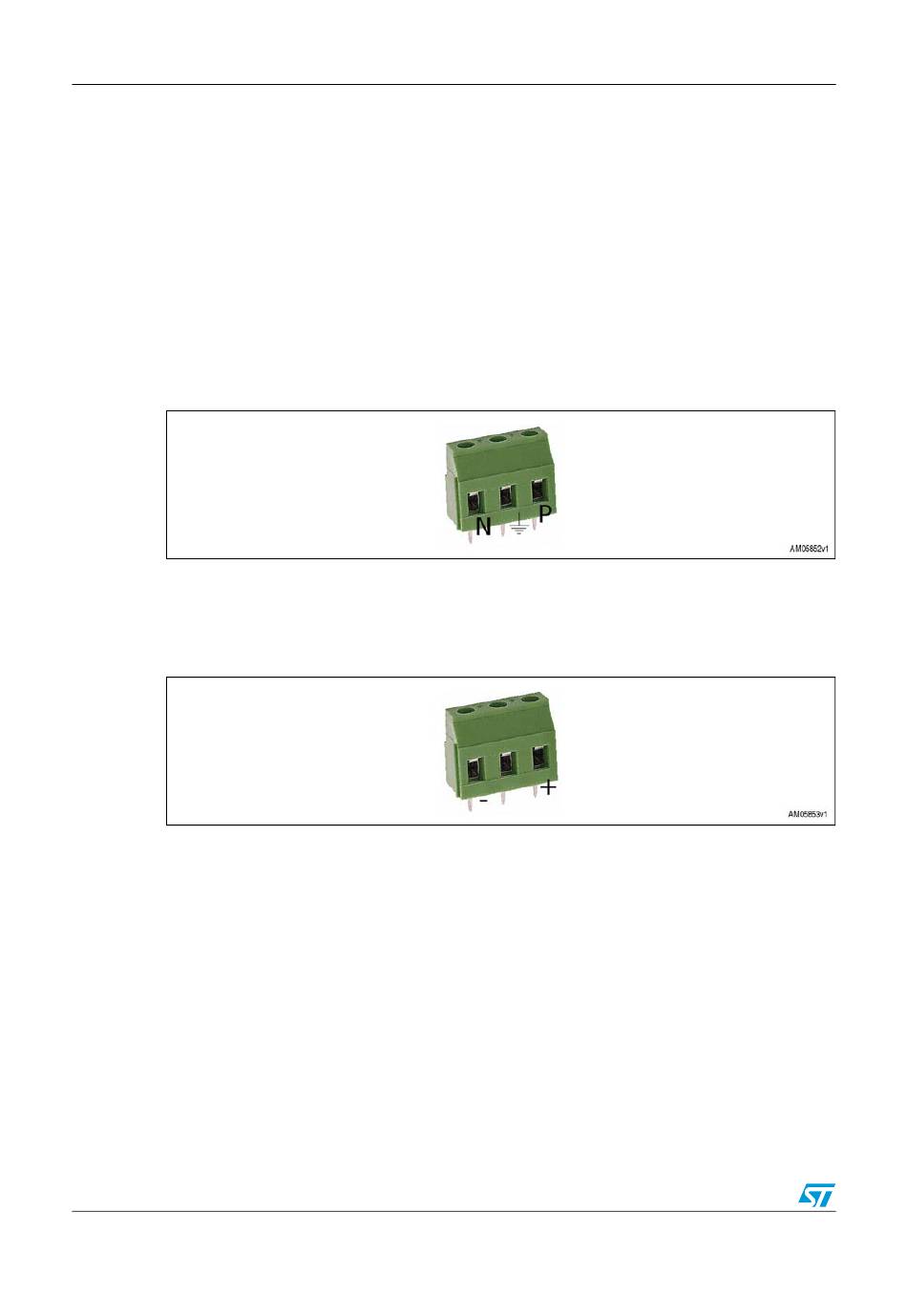

Figure 43 .
Vin connector
Figure 44 .
Vout connector
Figure 44 .
.
Figure 44
Doc ID 16854 Rev 1
Section A.1 ).
UM0877
