COMMAND INPUTS (CONTINUED)

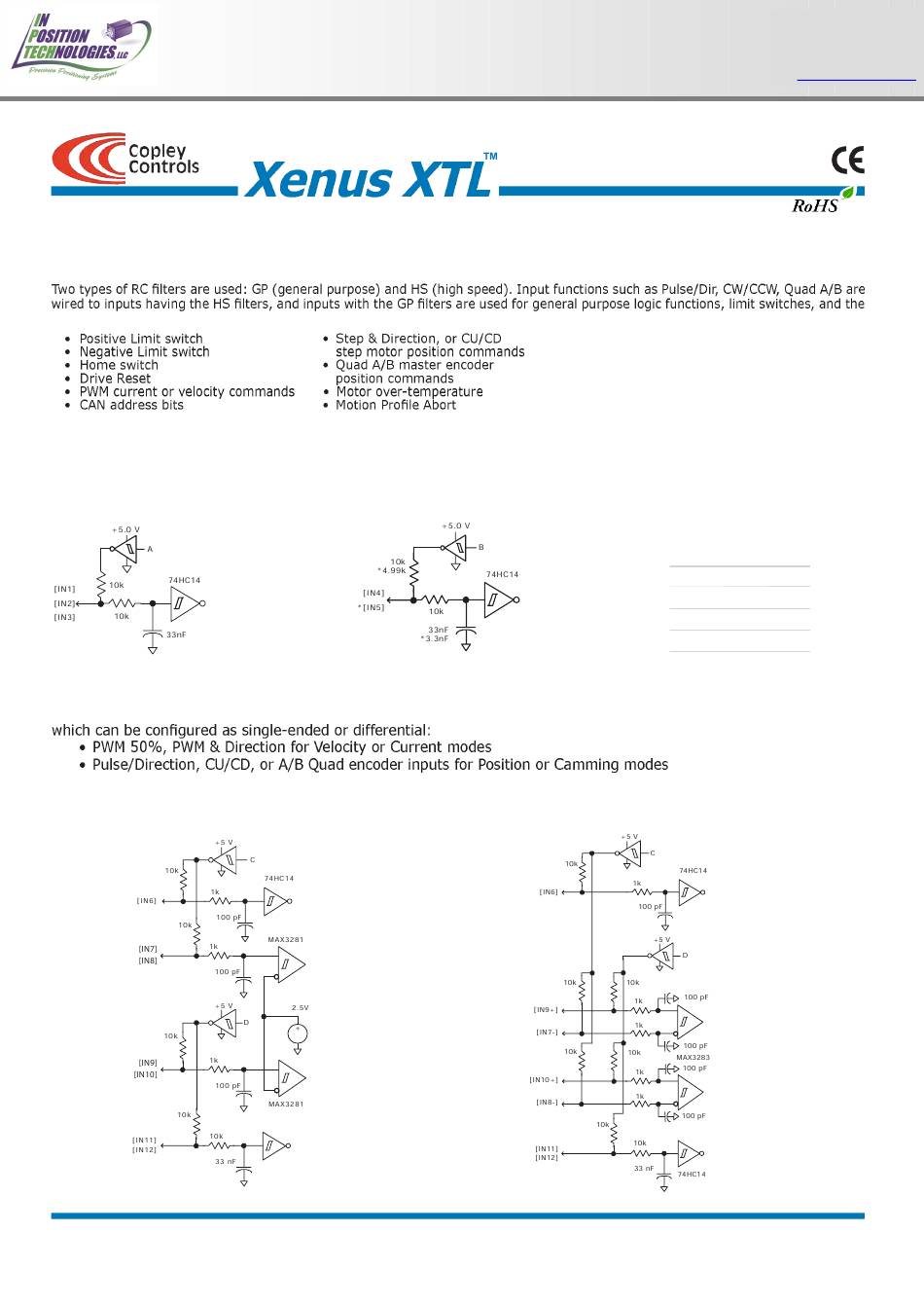

DIGITAL INPUTS

Xenus has twelve digital inputs, eleven of which have programmable functions. Input [IN1] is dedicated to the drive Enable function.
This is done to prevent accidental programming of the input in such a way that the controller could not shut it down.
motor temperature sensor. Programmable functions of the digital inputs include:
DIGITAL INPUT CIRCUITS
24VDC MAX
HS (HIGH SPEED) DIGITAL INPUTS
These inputs have all the programmable functions of the GP inputs plus these additional functions on [IN8] & [IN9]
SINGLE-ENDED
12 Vdc max
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Tech Support: E-mail: sales@copleycontrols.com, Internet: http://www.copleycontrols.com
For Tomorrow's Break Through Discoveries
24VDC MAX
DIGITAL SERVO DRIVE
for BRUSHLESS/BRUSH MOTORS
PULL-UP/PULL-DOWN CONTROL
In addition to the active level and function
for each programmable input, the input
resistors are programmable in four groups
to either pull up to +5 Vdc, or down to
ground. Grounded inputs with HI active
levels interface to PLC's that have PNP
outputs that source current from +24 Vdc
sources. Inputs pulled up to +5 Vdc work
with open-collector, or NPN drivers that
sink current to ground. The table below
shows the PU/PD groups and the inputs
they control.`
Group
DIFFERENTIAL
12 Vdc max
Tel: 781-828-8090
Phone: 877-478-3241
Phone: 877-IP-Tech1
Fax: 877-IP-Tech2
www.iptech1.com
Inputs
A 1,2,3
B 4,5
C 6,7,8
D 9,10,11,12
