COMMUNICATIONS (CONTINUED)

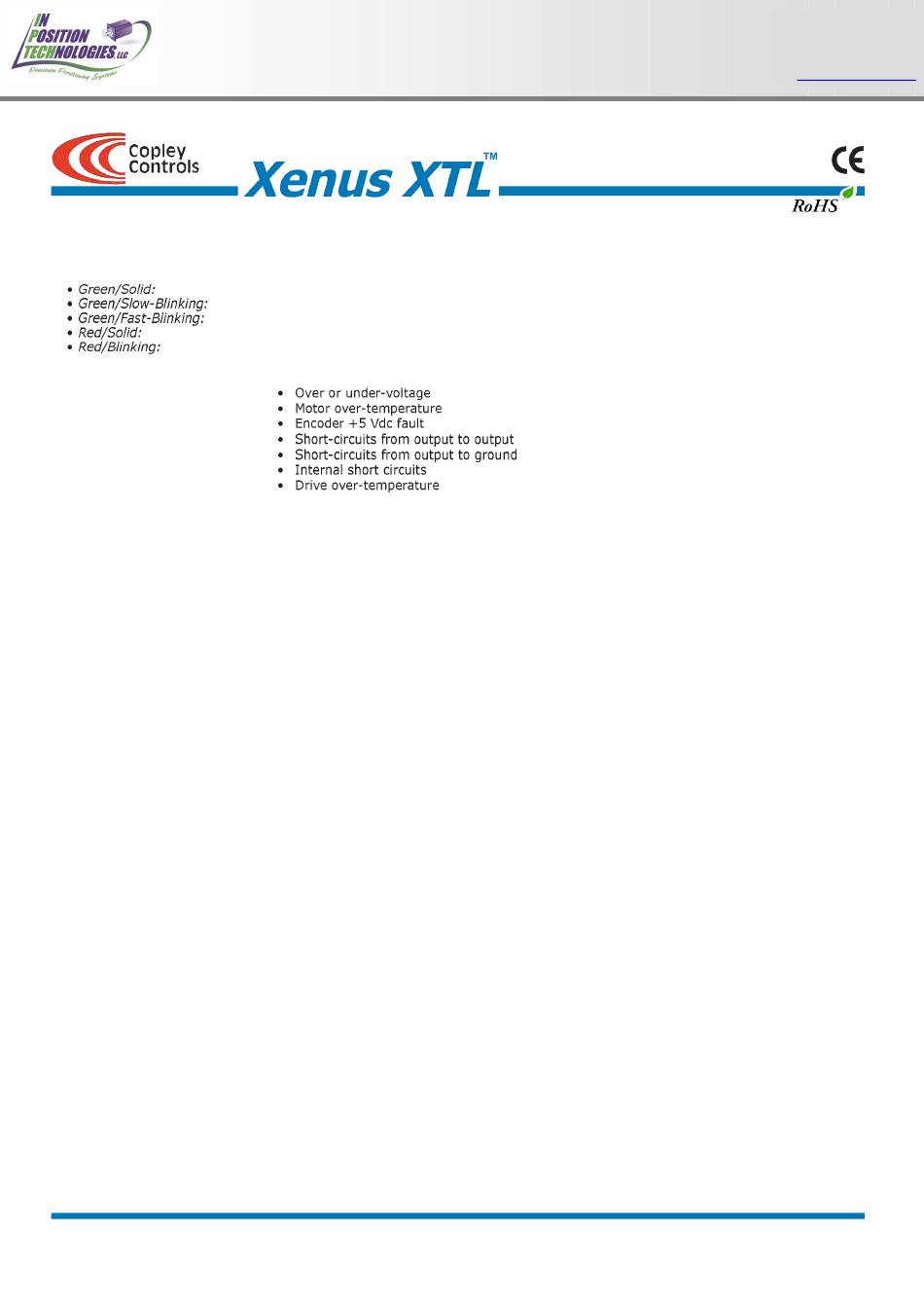

DRIVE STATUS LED
A single bi-color LED gives the state of the drive by changing color, and either blinking or remaining solid.
The possible color and blink combinations are:
Drive OK and enabled. Will run in response to reference inputs or CANopen commands.
Drive OK but NOT-enabled. Will run when enabled.
Positive or Negative limit switch active. Drive will only move in direction not inhibited by limit switch.
Transient fault condition. Drive will resume operation when fault is removed.
Latching fault. Operation will not resume until drive is Reset.
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Tech Support: E-mail: sales@copleycontrols.com, Internet: http://www.copleycontrols.com
For Tomorrow's Break Through Discoveries
Drive Fault conditions:
Faults are programmable to be either
transient or latching
