COMMUNICATIONS (CONTINUED)
CANOPEN
Based on the CAN V2.0b physical layer, a robust, two-wire communication bus originally designed for automotive use where low-cost
and noise-immunity are essential, CANopen adds support for motion-control devices and command synchronization. The result is a
highly effective combination of data-rate and low cost for multi-axis motion control systems. Device synchronization enables multiple
axes to coordinate moves as if they were driven from a single control card.
CANOPEN COMMUNICATION
Xenus uses the CAN physical layer signals CANH, CANL, and GND for connection, and CANopen protocol for communication.
Before installing the drive in a CAN system, it must be assigned a CAN address. A maximum of 127 CAN nodes are allowed on a single
CAN bus. The rotary switch on the front panel controls the four lower bits of the seven-bit CAN address. When the number of nodes on
a bus is less than sixteen, the CAN address can be set using only the switch.
Fo r m or e in fo rm ati on o n C AN ope n c om mu nic ati ons , dow nlo ad th e CA No pe n Ma nua l from th e Co ple y we b- sit e:
http://www.copleycontrols.com/motion/downloads/pdf/CANopenProgrammersManual.pdf

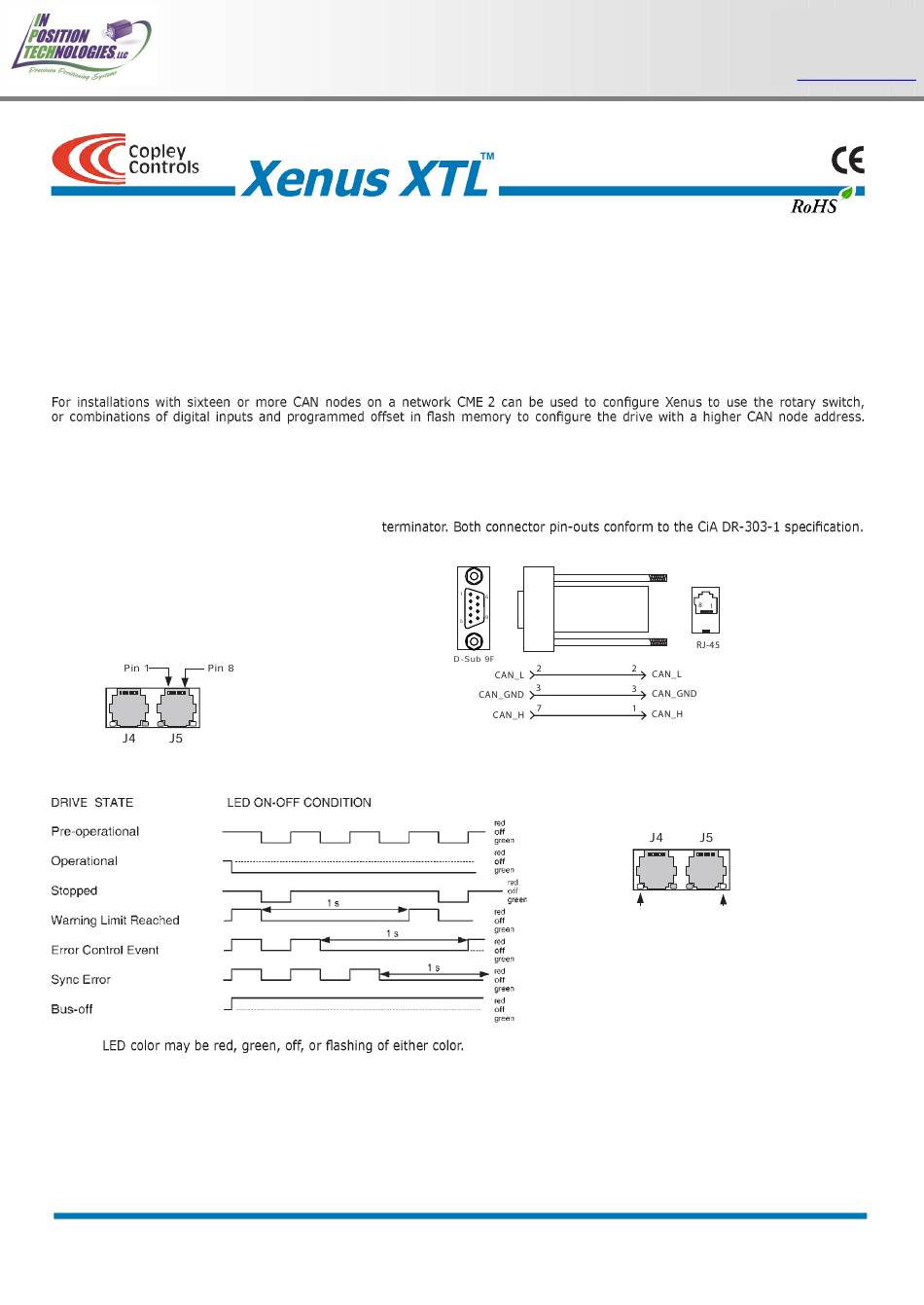

CANOPEN CONNECTORS
Dual RJ-45 connectors that accept standard
Ethernet cables are provided for CAN bus
connectivity. Pins are wired-through so that
drives can be daisy-chained and controlled
with a single connection to the user's
CAN interface. A CAN terminator should
be placed in the last drive in the chain.
The XTL-NK connector kit provides a D-Sub
adapter that plugs into a CAN controller
and has an RJ-45 socket that accepts the
Ethernet cable.
J6 CAN CONNECTIONS
CAN S TATUS LED
Note: Red & green led on-times do not overlap.
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Tech Support: E-mail: sales@copleycontrols.com, Internet: http://www.copleycontrols.com
For Tomorrow's Break Through Discoveries
XTL-NK CAN CONNECTOR KIT
The kit contains the XTL-CV adapter that converts the CAN interface D-Sub
9M connector to an RJ-45 Ethernet cable socket, plus a 10 ft (3 m) cable and
