LABDMM2
USER GUIDE

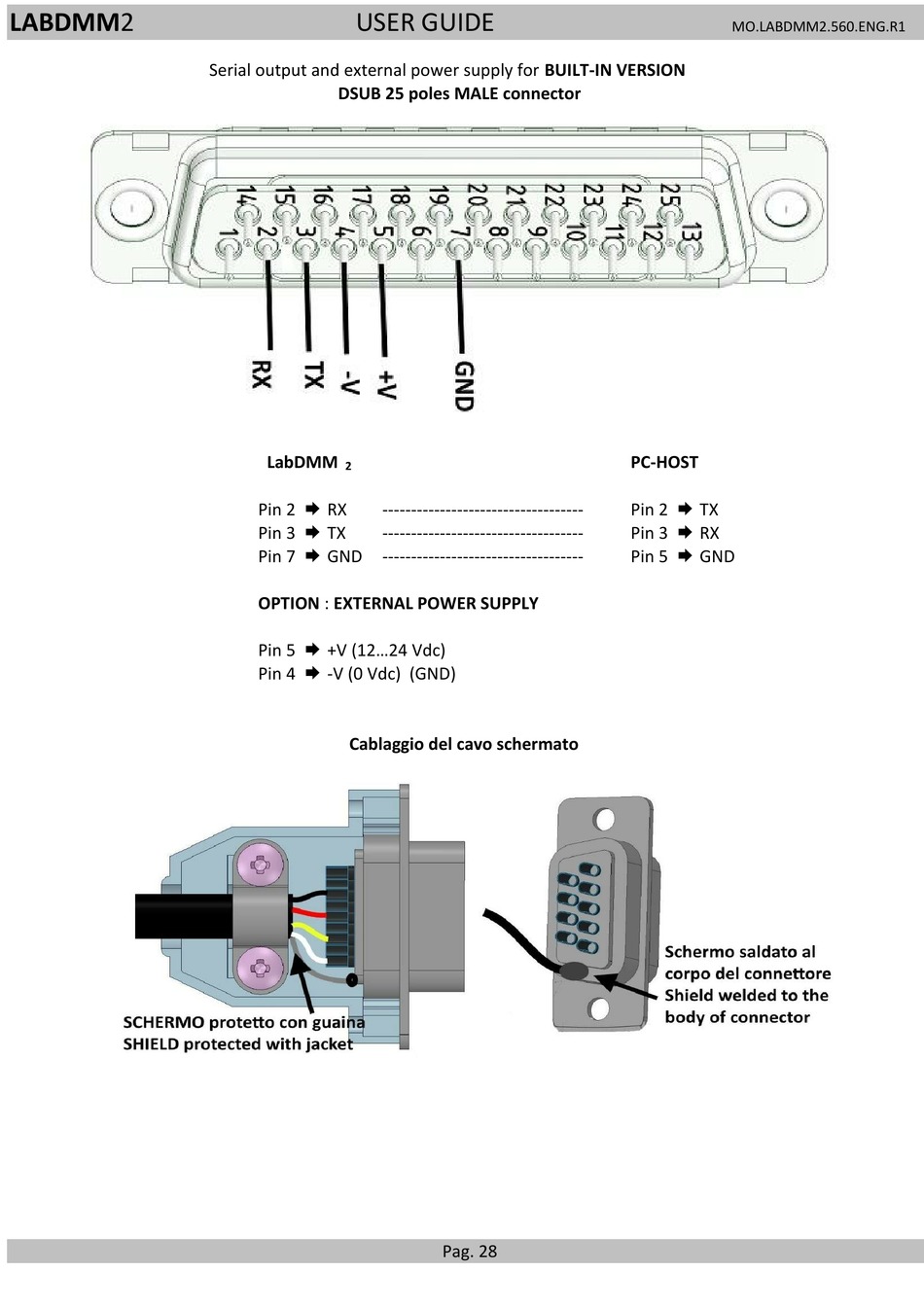

Serial output and external power supply for BUILT-IN VERSION
DSUB 25 poles MALE connector
LabDMM
2
Pin 2 RX
-----------------------------------
Pin 3 TX
-----------------------------------
Pin 7 GND
-----------------------------------
OPTION : EXTERNAL POWER SUPPLY
Pin 5 +V (12...24 Vdc)
Pin 4 -V (0 Vdc) (GND)
Cablaggio del cavo schermato
Pag. 28
MO.LABDMM2.560.ENG.R1
PC-HOST
Pin 2 TX
Pin 3 RX
Pin 5 GND
