BART LABDMM2 User Manual page 49

LABDMM2
The pressure gauge has an internal temperature sensor with an accuracy of 1 ° C and a resolution of 0.1 ° C.
If the temperature reading does not fall within the specifications or if you want to improve this performance,
it is possible to calibrate the sensor.
Calibration of the temperature sensor is performed at two different temperature points.
The first point at room temperature (t1) the second at a temperature of about 40 or 50 degrees ° C (t2).
+
P0000
t1
25.3°C
t2
51.3 °C
End
In the event that problems should arise in the calibration procedure, it is possible to return to the factory
calibration using the password 3125.
USER GUIDE

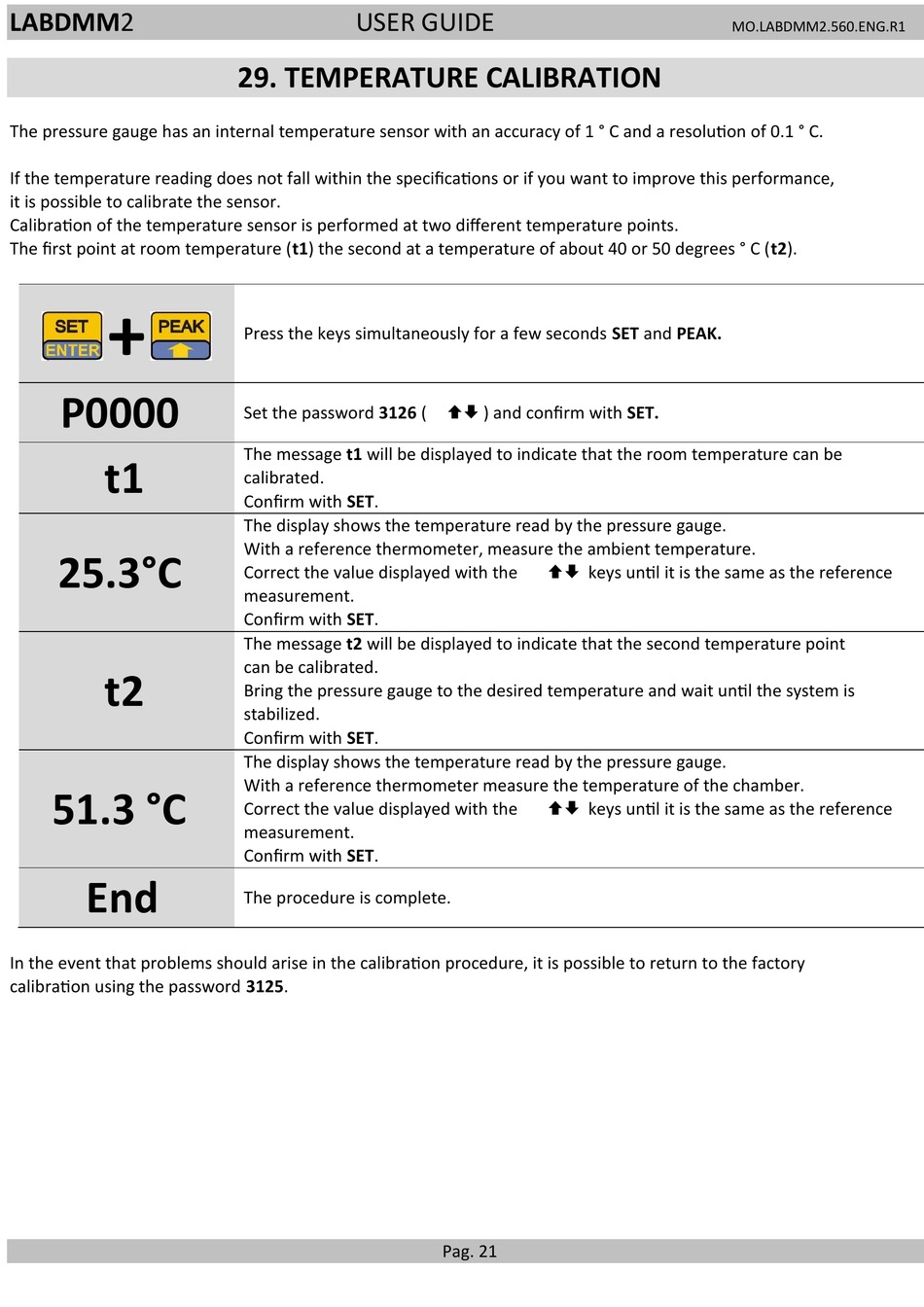

29. TEMPERATURE CALIBRATION
Press the keys simultaneously for a few seconds SET and PEAK.
Set the password 3126 (
The message t1 will be displayed to indicate that the room temperature can be
calibrated.
Confirm with SET.
The display shows the temperature read by the pressure gauge.
With a reference thermometer, measure the ambient temperature.
Correct the value displayed with the
measurement.
Confirm with SET.
The message t2 will be displayed to indicate that the second temperature point
can be calibrated.
Bring the pressure gauge to the desired temperature and wait until the system is
stabilized.
Confirm with SET.
The display shows the temperature read by the pressure gauge.
With a reference thermometer measure the temperature of the chamber.
Correct the value displayed with the
measurement.
Confirm with SET.
The procedure is complete.
 ) and confirm with SET.
 keys until it is the same as the reference
 keys until it is the same as the reference
Pag. 21
MO.LABDMM2.560.ENG.R1
