LABDMM2
USER GUIDE

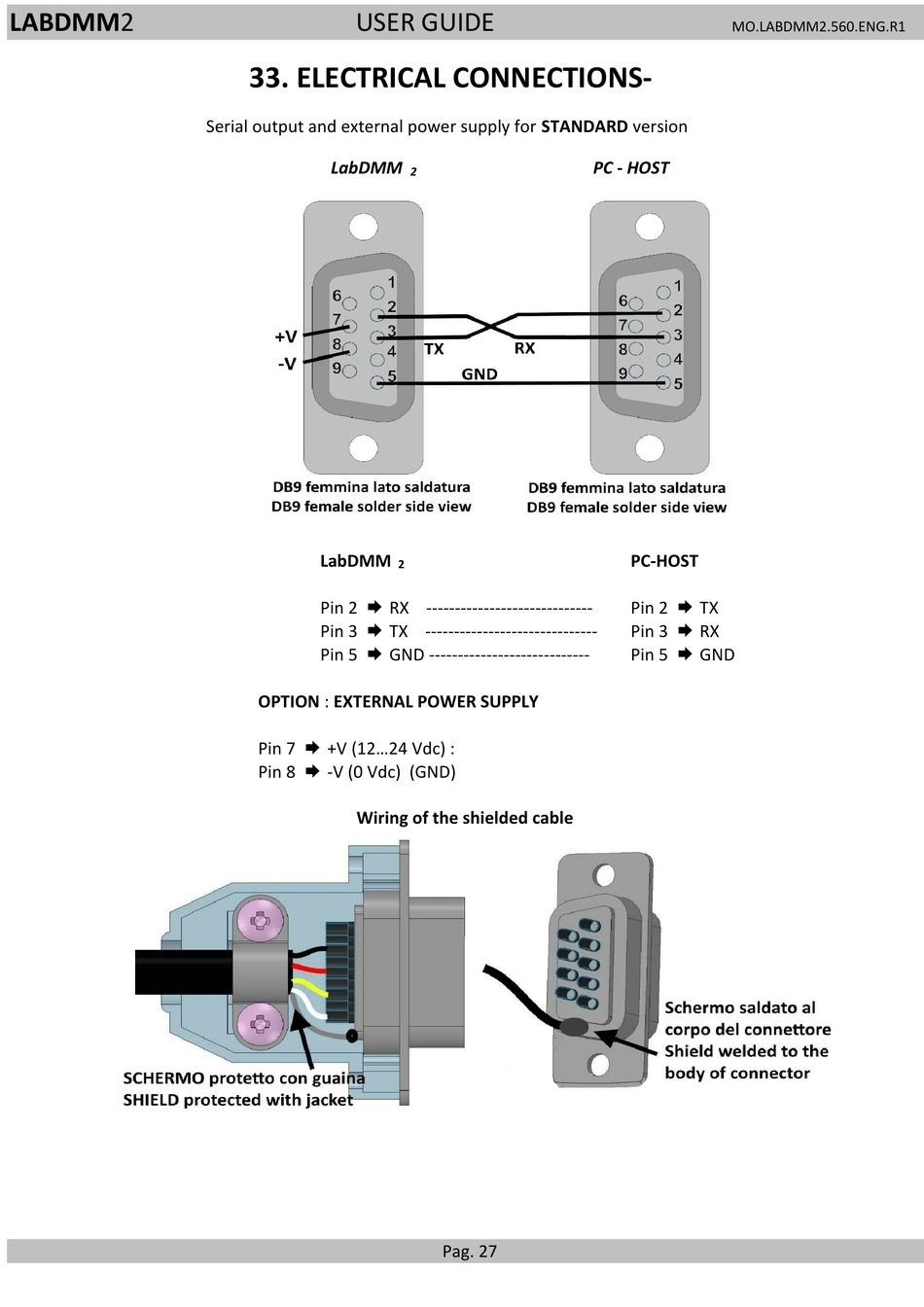

33. ELECTRICAL CONNECTIONS-
Serial output and external power supply for STANDARD version
LabDMM
LabDMM
Pin 2 RX -----------------------------
Pin 3 TX ------------------------------
Pin 5 GND ----------------------------
OPTION : EXTERNAL POWER SUPPLY
Pin 7 +V (12...24 Vdc) :
Pin 8 -V (0 Vdc) (GND)
Wiring of the shielded cable
2
2
Pag. 27
MO.LABDMM2.560.ENG.R1
PC - HOST
PC-HOST
Pin 2 TX
Pin 3 RX
Pin 5 GND
