LABDMM2
Manuale Operativo

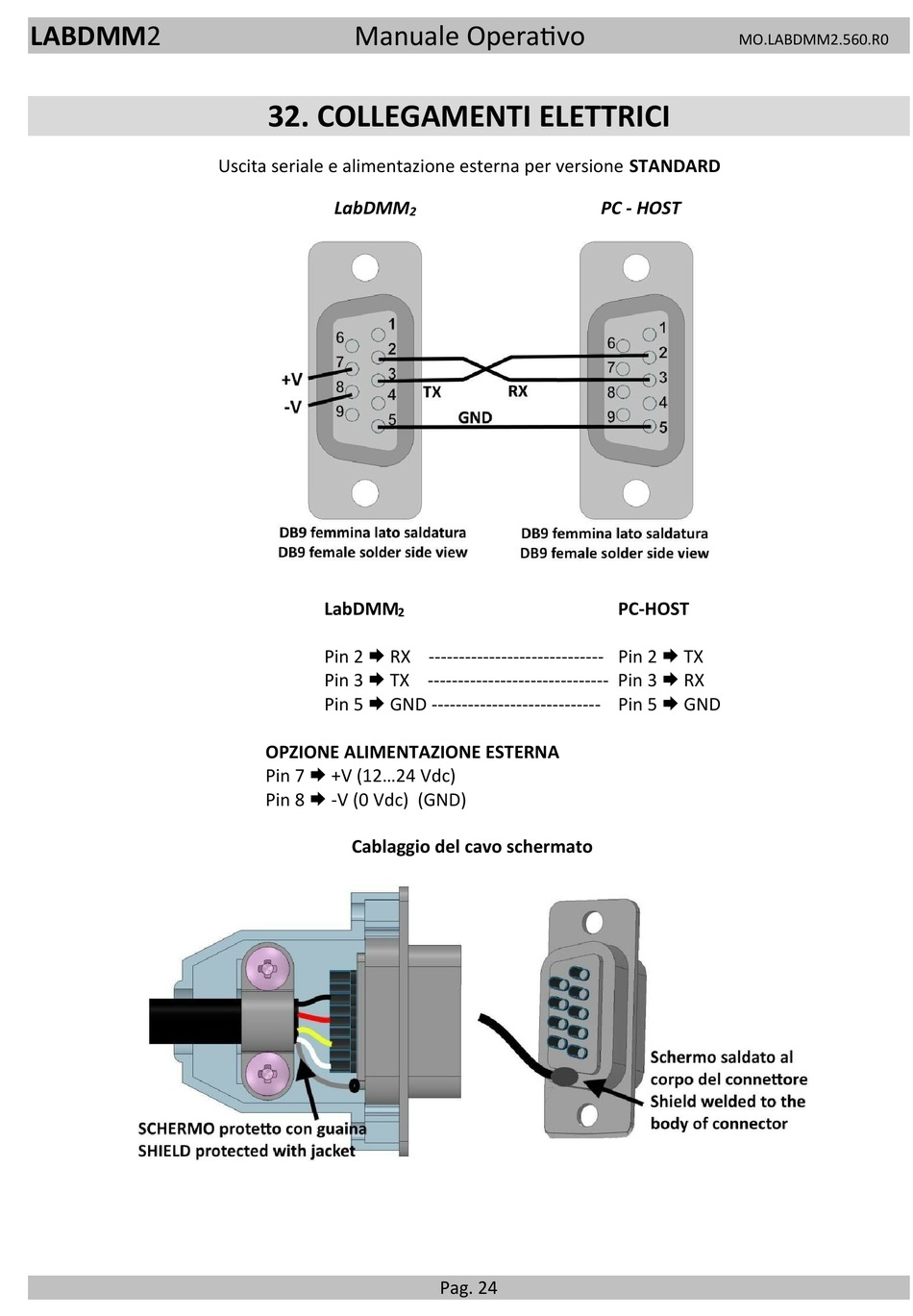

32. COLLEGAMENTI ELETTRICI
Uscita seriale e alimentazione esterna per versione STANDARD
LabDMM
LabDMM
Pin 2 RX ----------------------------- Pin 2 TX
Pin 3 TX ------------------------------ Pin 3 RX
Pin 5 GND ---------------------------- Pin 5 GND
OPZIONE ALIMENTAZIONE ESTERNA
Pin 7 +V (12...24 Vdc)
Pin 8 -V (0 Vdc) (GND)
Cablaggio del cavo schermato
2
2
Pag. 24
MO.LABDMM2.560.R0
PC - HOST
PC-HOST
