LABDMM2
To enter the Parameter Menu keep the SET key pressed for about 3 seconds, until the writing Unit appears.
Unit
FL XX
r XX
LOOPX
oFFXX
cont X
Lt XX
ZEroX
USER GUIDE

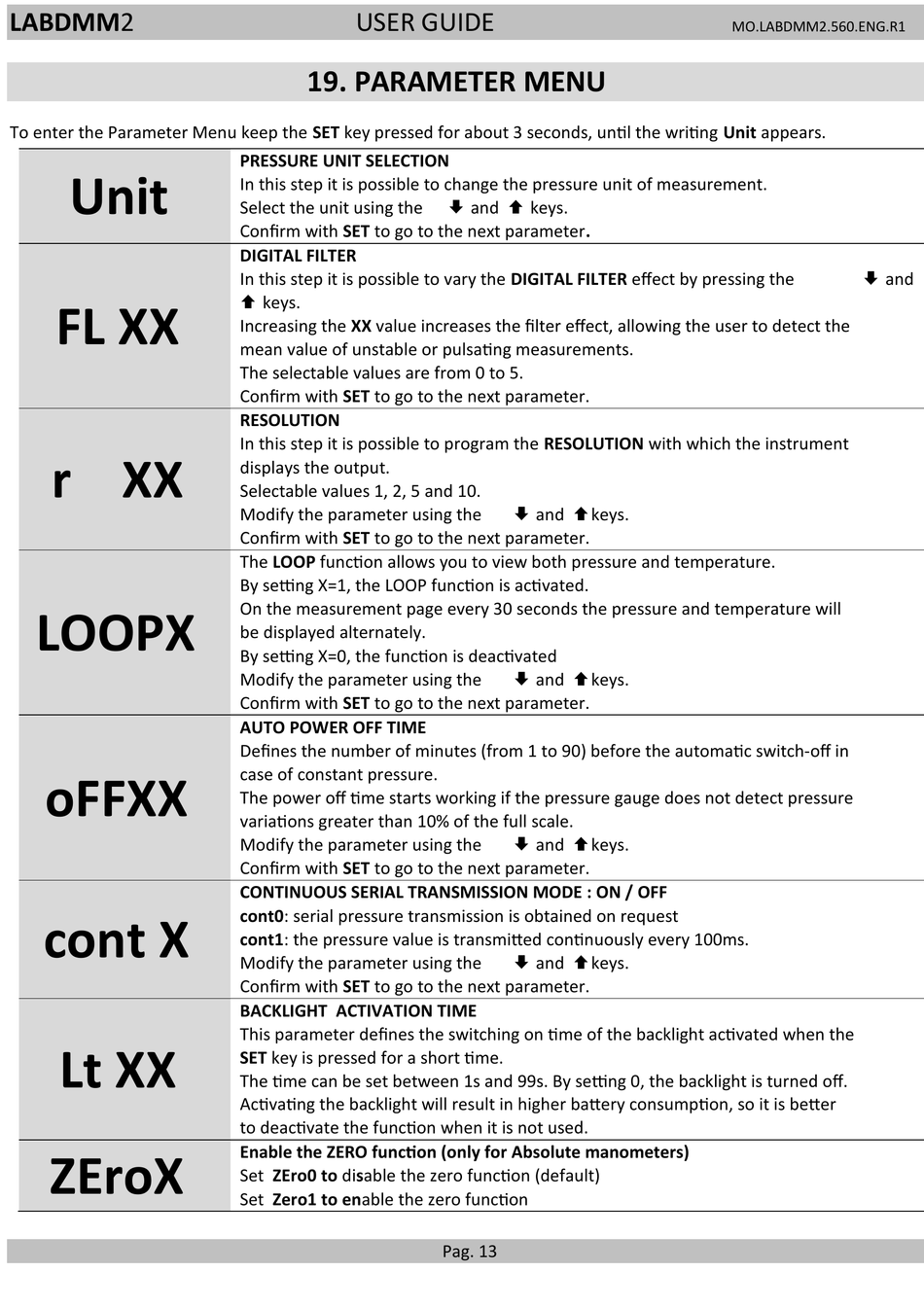

19. PARAMETER MENU
PRESSURE UNIT SELECTION
In this step it is possible to change the pressure unit of measurement.
Select the unit using the
Confirm with SET to go to the next parameter.
DIGITAL FILTER
In this step it is possible to vary the DIGITAL FILTER effect by pressing the
 keys.
Increasing the XX value increases the filter effect, allowing the user to detect the
mean value of unstable or pulsating measurements.
The selectable values are from 0 to 5.
Confirm with SET to go to the next parameter.
RESOLUTION
In this step it is possible to program the RESOLUTION with which the instrument
displays the output.
Selectable values 1, 2, 5 and 10.
Modify the parameter using the
Confirm with SET to go to the next parameter.
The LOOP function allows you to view both pressure and temperature.
By setting X=1, the LOOP function is activated.
On the measurement page every 30 seconds the pressure and temperature will
be displayed alternately.
By setting X=0, the function is deactivated
Modify the parameter using the
Confirm with SET to go to the next parameter.
AUTO POWER OFF TIME
Defines the number of minutes (from 1 to 90) before the automatic switch-off in
case of constant pressure.
The power off time starts working if the pressure gauge does not detect pressure
variations greater than 10% of the full scale.
Modify the parameter using the
Confirm with SET to go to the next parameter.
CONTINUOUS SERIAL TRANSMISSION MODE : ON / OFF
cont0: serial pressure transmission is obtained on request
cont1: the pressure value is transmitted continuously every 100ms.
Modify the parameter using the
Confirm with SET to go to the next parameter.
BACKLIGHT ACTIVATION TIME
This parameter defines the switching on time of the backlight activated when the
SET key is pressed for a short time.
The time can be set between 1s and 99s. By setting 0, the backlight is turned off.
Activating the backlight will result in higher battery consumption, so it is better
to deactivate the function when it is not used.
Enable the ZERO function (only for Absolute manometers)
Set ZEro0 to disable the zero function (default)
Set Zero1 to enable the zero function
 and  keys.
 and keys.
 and keys.
 and keys.
 and keys.
Pag. 13
MO.LABDMM2.560.ENG.R1
 and
