Intellitronix DP6004 Installation Manual page 4

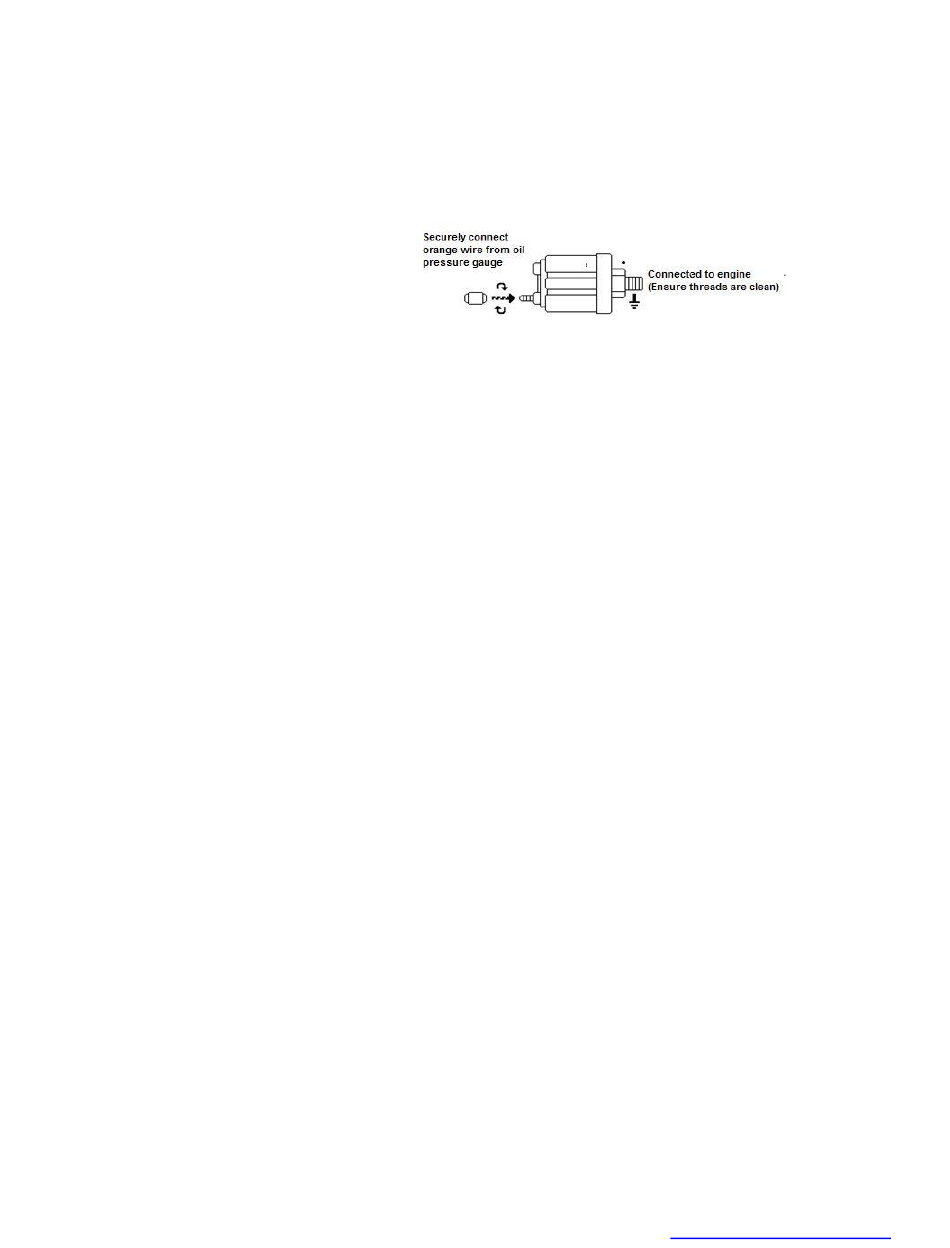

Oil Pressure – Orange Reuse the existing oil pressure sending unit with the unit included.
Do not use Teflon tape or other sealer on the new sending unit's threads. This will avoid
inaccurate ground connections as the sending units get their ground from the threads. The
oil sender gets its ground from the threading into the engine block, thus proper grounding
is crucial. Connect to the sending unit. (Note works best if new wire
Water – Blue This gauge is incompatible with other sending units, so you must replace the existing
water temperature sending unit with the included sender. Do not use Teflon tape or other sealer on the
new sending unit's threads to avoid inaccurate readings. Connect the blue wire to the sending unit.
Dimmer – Purple Connect to the parking lights to dim the LEDs 50% when the headlights are on. However,
*DO NOT * connect to the headlight rheostat control wire, or the dimming feature will not work properly
and may cause damage to Unit.
High-Beam – Brown - Connect the brown wire on the Dash unit to your high beam headlight circuit.
This wire is powered on when the high beam is turned on.
Turn Signals – Grey Two 18-gauge wires, one for each signal. Each wire is labeled on the printed circuit
board as 'LEFT' or 'RIGHT'. Connect each wire to its corresponding indicator circuit.
OR
Right Turn Signals - Grey with White strip 18-gauge wire is the - RIGHT turn signal
Left Turn Signals - Grey with Black strip 18-gauge wire is the – Left turn signal.
Each wire is also labeled on the printed circuit board as 'LEFT' or 'RIGHT'. Connect
each wire to its corresponding indicator circuit.
Brake – Tan - Connect to the parking brake wire from the dash to negative side of parking
brake light switch. NOTE: If you are using a one wire switch you may need to switch to a
two-wire switch. This wire is an optional wire some vehicles may not require
Check Engine - Green/Yellow Connect to the Negative side of the Check Engine Light
circuit. Check Engine light will come on when working with a PCM
Note: Before installing or Setting up you must know your Fuel sender OHMS Range
to properly set Gauge up.
