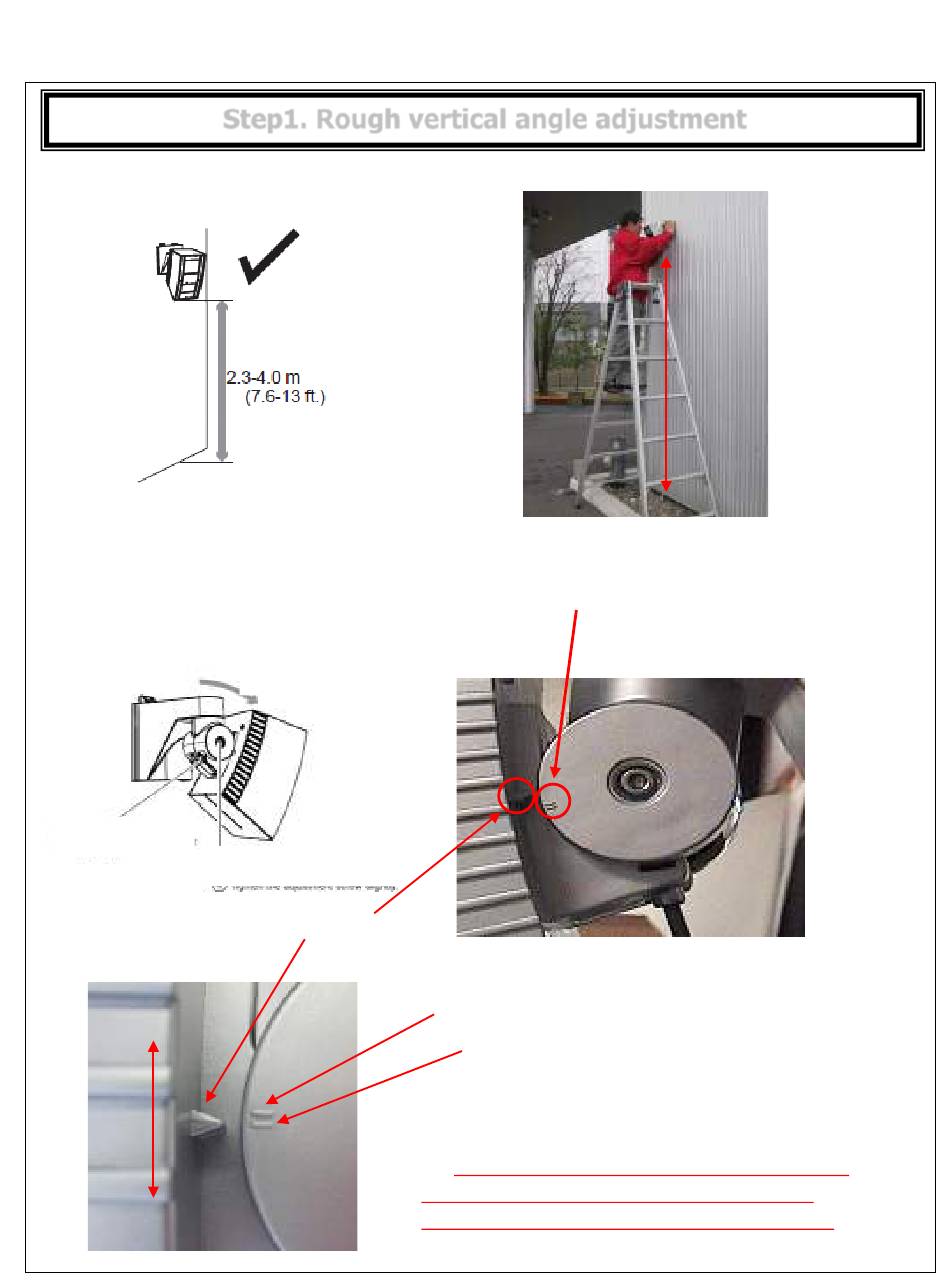

Step1. Rough vertical angle adjustment
1. Measure the installation height.
2. Loosen the fixing screw by allen key.
3. Adjust the vertical position with "Angle Adjustment guide"
according to installation height.
2
Arrow of the main unit
Installation height at 2.3m(7.6ft.)
Installation height at 4m(13ft.)
If the height is between 2.3m
and 4m, set in the middle.
If the mounting wall is at an angle,
this guide might not apply. In such
case, adjust carefully with walk test.
