Checking The Edge Of The Far Area; Fine Angle Adjustment - Optex REDWALL-V Adjustment Procedures Manual

Actual site view

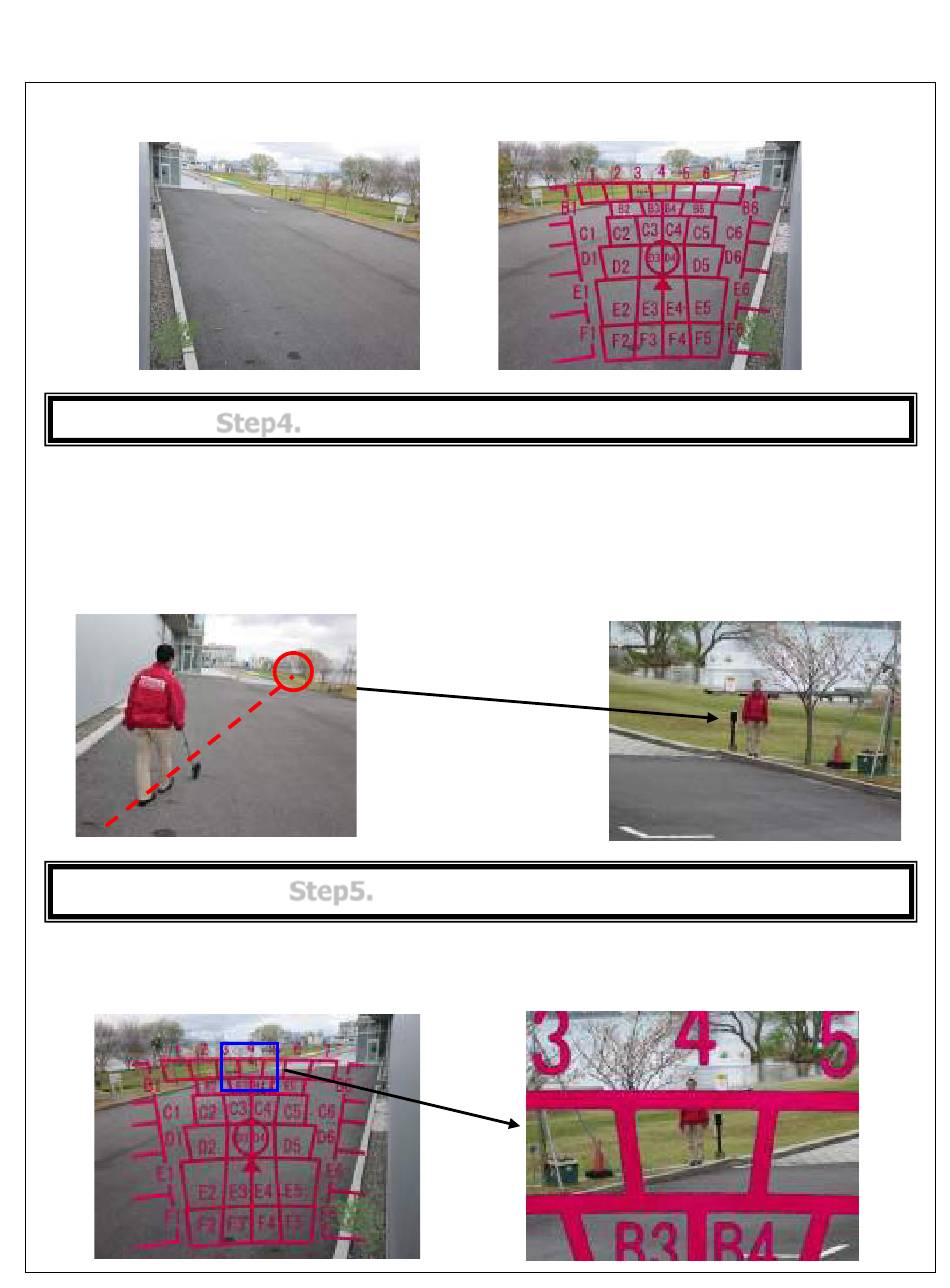

Step4. Checking the edge of the far area
1. Adjust the horizontal angle of the main unit in order to effectively cover
the area required to protect, and avoid possible areas of false alarms.
2. Check the center of the farthest detection area.
3. Measure the detection distance toward the point.
Rating distance
e.g. SIP-3020 = 30m (100ft.)
Adjust the vertical and horizontal angle of the main unit to get the
position that the person is located in the most far detection area.
4. Make a person
stand at the point.
Step5. Fine angle adjustment
View through the AVF-1
Page 6/18
