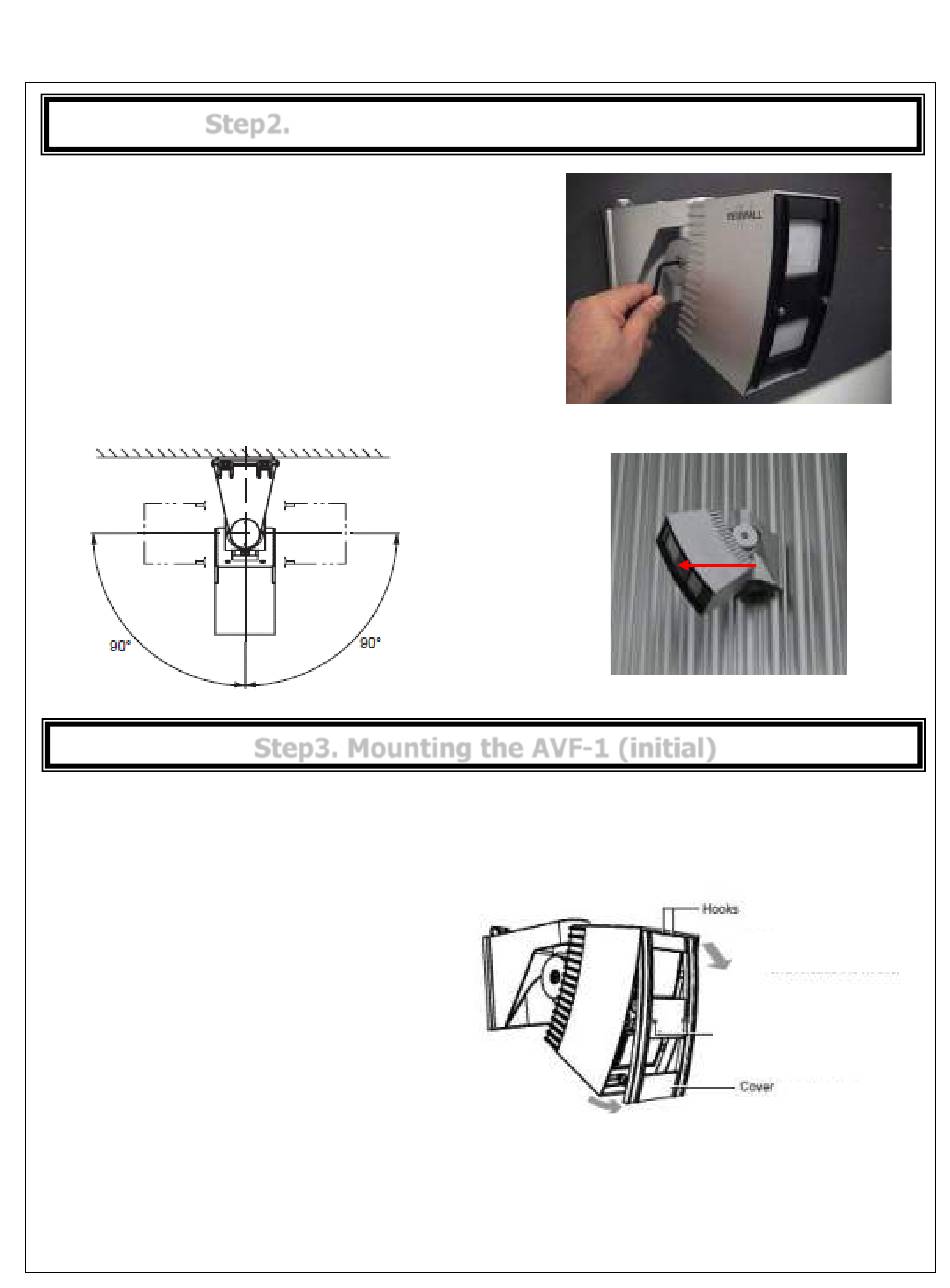

Step2. Rough horizontal angle adjustment
1. Loosen the side adjustment screw
by Allen key. (Loosen the screw on
the opposite side to where its to be
aimed)
2. Rotate the main unit horizontally
to desired area.
3. Tighten the adjustment screw
slightly.
Step3. Mounting the AVF-1 (initial)
Remove the cover before
mounting the AVF-1 View Finder
3
1. Loosen two securing screws.
2. Hold the head of the both screw
1
with your hand and pull them out.
3. Slide the cover downward and
release the hooks.
2
