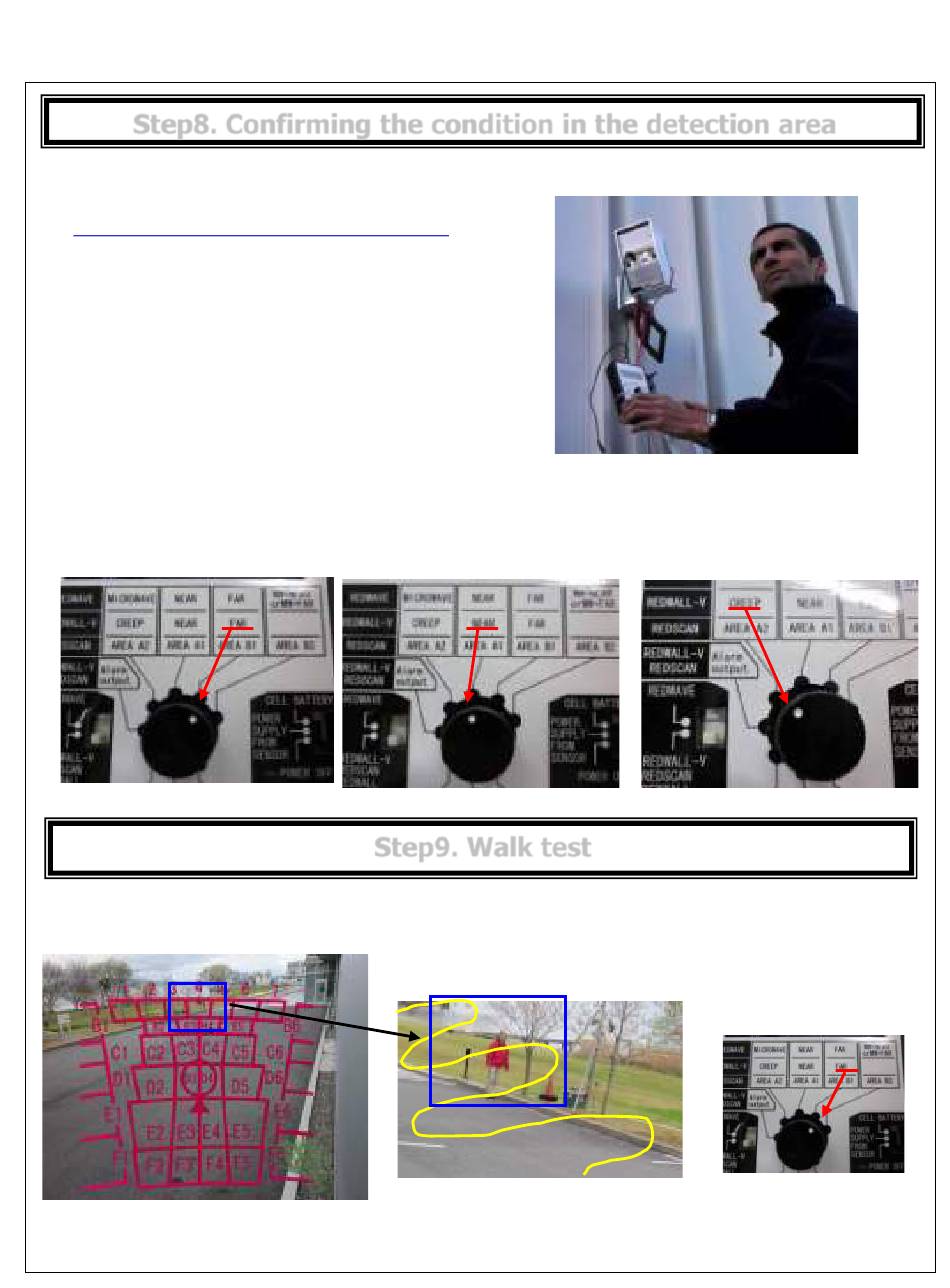

Step8. Confirming the condition in the detection area
1. Slide POWER SELECT SWITCH to
"POWER SUPPLY FROM SENSOR"
2. Check to ensure the tone is
constant (that there is no one in the
detection area).
*No detection: low tone
*Detection: High tone
If not, there might be an object that
could be the cause of a false alarm.
Remove the object or mask it later.
Check "FAR"area.
1. Conduct walk test to confirm the recent position of the person is
actually in the most far detection area or re-adjust the unit to the area.
2. Confirm the detection area is set properly, and check "FAR"area
and "NEAR" area independently.
Check "NEAR"area.
Step9. Walk test
Page 8/18
Check "CREEP"zone.
Check "FAR"area
