Optex REDWALL-V Adjustment Procedures Manual page 5

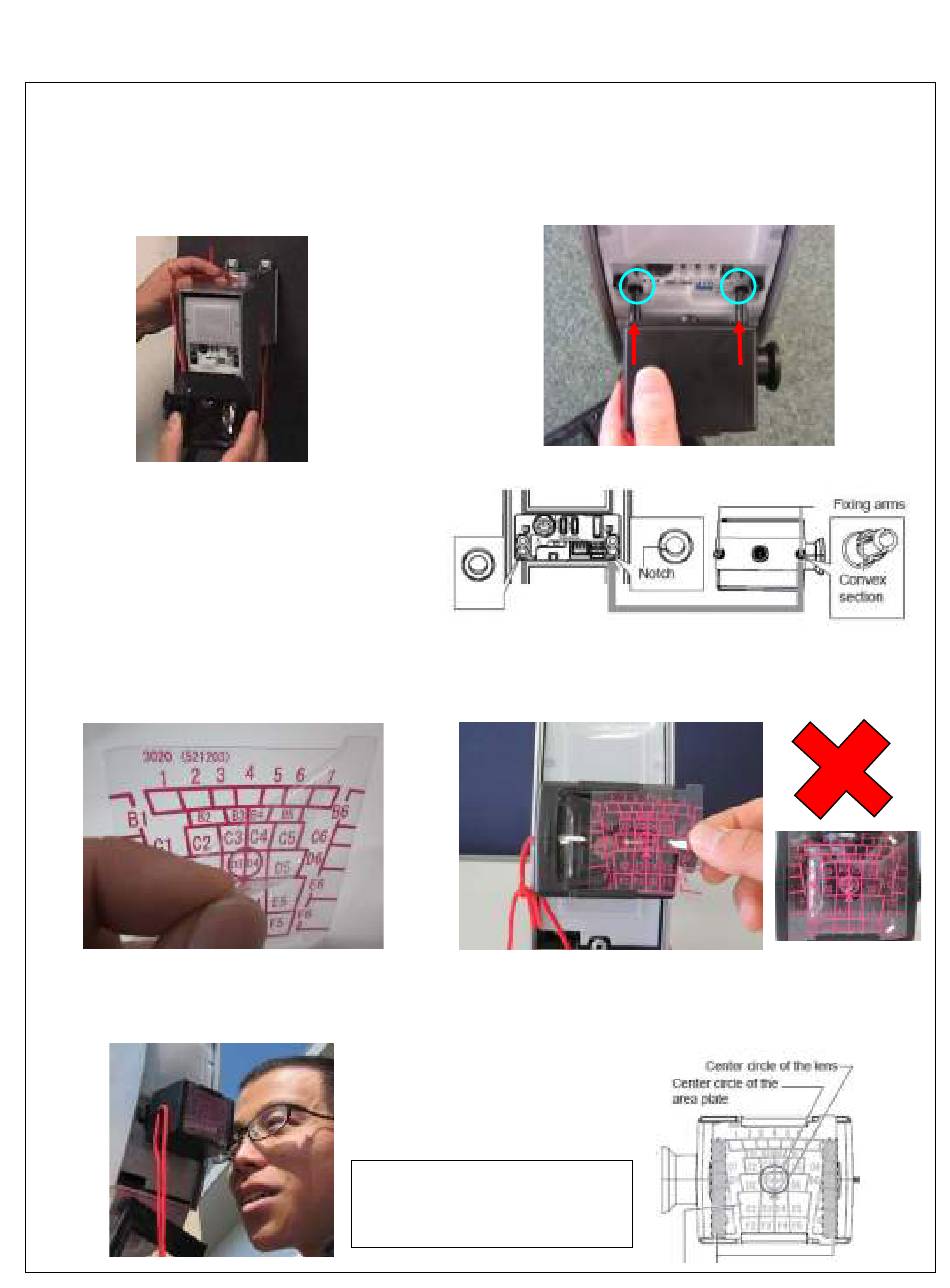

Mounting the AVF-1 (initial)
1. Put the red string attached to the
View Finder around the main unit so
that it does not accidently fall.
*One of two holes is notched
to accept correct arm of
AVF-1. It will not mount to the
SIP incorrectly, otherwise.
For convenience, the AVF-1 unit
can be rotated.
3. Peel off the protection seals
from both sides of the area plate.
5. Look through the inspection
window of AVF-1 View Finder.
2. Insert and mount AVF-1
to the main unit.
4. Insert the area plate into the slot of
View Finder so that the arrow points up.
6. Make sure that center circle of
the area plate comes inside
center circle of the lens and the
detection area..
Confirm the proper
plate is used.
Page 5/18
