1. Remove the AVF-1.
2. Remove the lens window.
(Press the left bottom hole
with your finger, and pull
the window up.)
Because of mirroring effects, the position of the mirror you mask
should be different from that of the detection segment of AVF-1. (What
is seen on the left is physically on the right-side of the mirror. For
example, in Step12, segment F6 should be masked like below.)
See
next
page

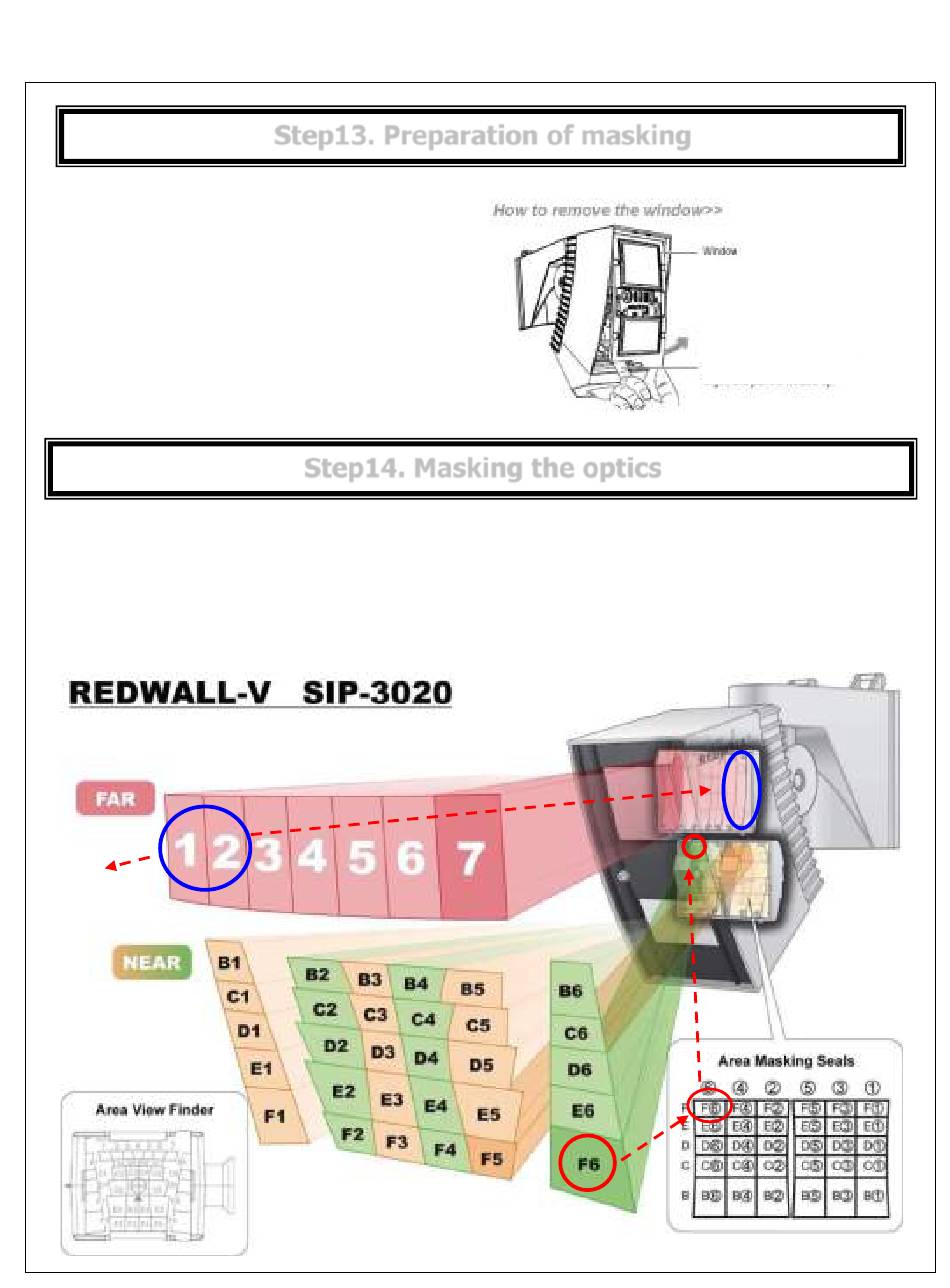

Step13. Preparation of masking
Step14. Masking the optics
Page 10/18
