4.4.2

Front Cover

The front cover is held in place with two shoulder bolts (pre-fitted) and two M4
countersunk screws. Attach the front cover to the Sorter by following the procedure
below.
1. The two shoulder bolts on the Sorter frame fit slots cut into the front cover, as
2. Secure the front cover to the Sorter frame by screwing the two M4 countersunk
Rev E February 2010
shown in the inset figure. Slide the front cover over the shoulder bolts.
screws through the lower two holes in the cover.
Shoulder Bolt
M4 Screws

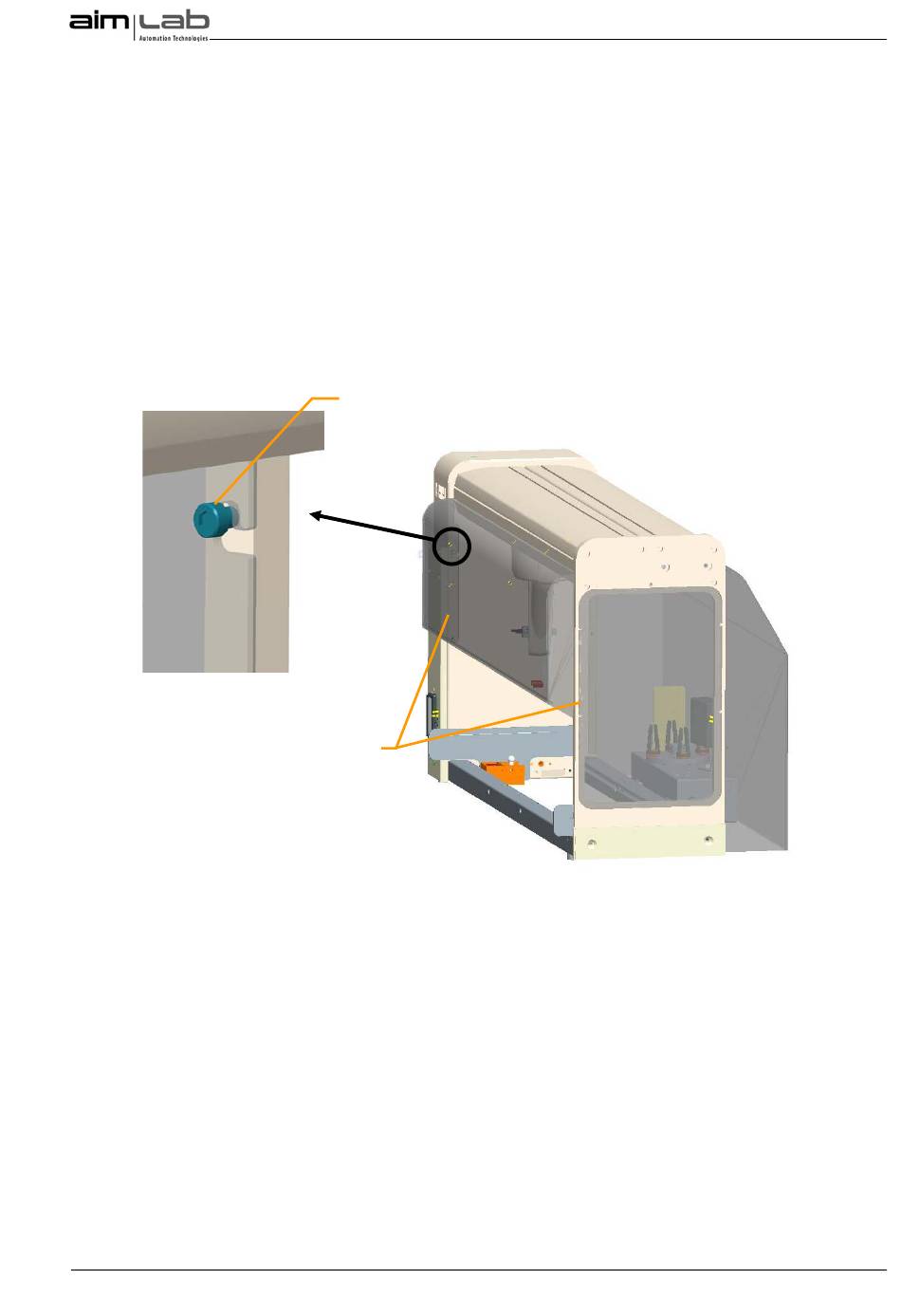

Figure 30 Front Cover Installation
