Naming the Tray

The PathFinder 350S identifies each tray by a unique name which must be
programmed into the Specimen Tray PCB. This name allows the PathFinder 350S to
identify which tray is installed and, via its configuration, where the racks are
located. The tray name is configured via PDS.
1. Close the GUI and PathFinder 350S applications and start PDS. See Section 3.8.3.
2. Once connected, select the Control tab indicated in Figure 79.
3. Half way down the controls page, there is a SetTrayID control. This will program
4. Place the Specimen Tray onto the Sorter. If there is no name assigned, the
New Tray Name
Event Messages
Page 106
the tray name into the Specimen Tray.
events record at the bottom of the screen will show the message Tray State
Changed T|?. If it does have a name programmed, then the message
parameters will display the tray name after the T|.

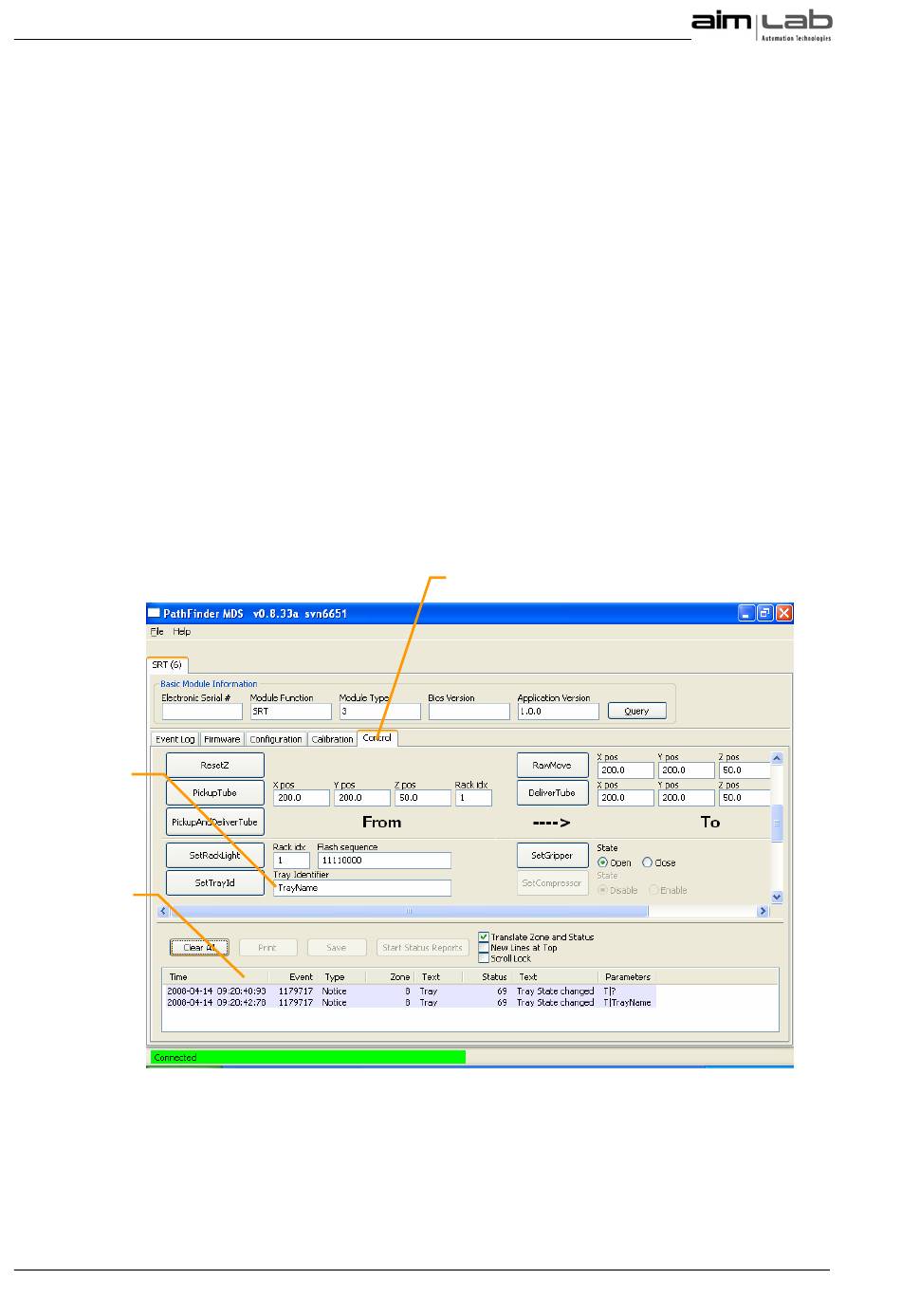

Figure 79 Assigning a Tray Name
