4.3

Carousel

Attach the Carousel module to the Sorter by following the procedure below.
1. Referring to the figure below. Use the two M8 Hex bolts (blue) supplied to
2. Tighten using the 6mm Hex Driver.
3. Install the Carousel by pushing it over the two legs. It is designed to fit snugly
4. Plug the Carousel cable into the MODULE port on the back of the Sorter.
Rev E February 2010
attach the two short Carousel legs (green) to the Sorter base (grey). The top of
the legs should be level with the Sorter base.
over the two legs, and should sit on top of the legs when fully seated.

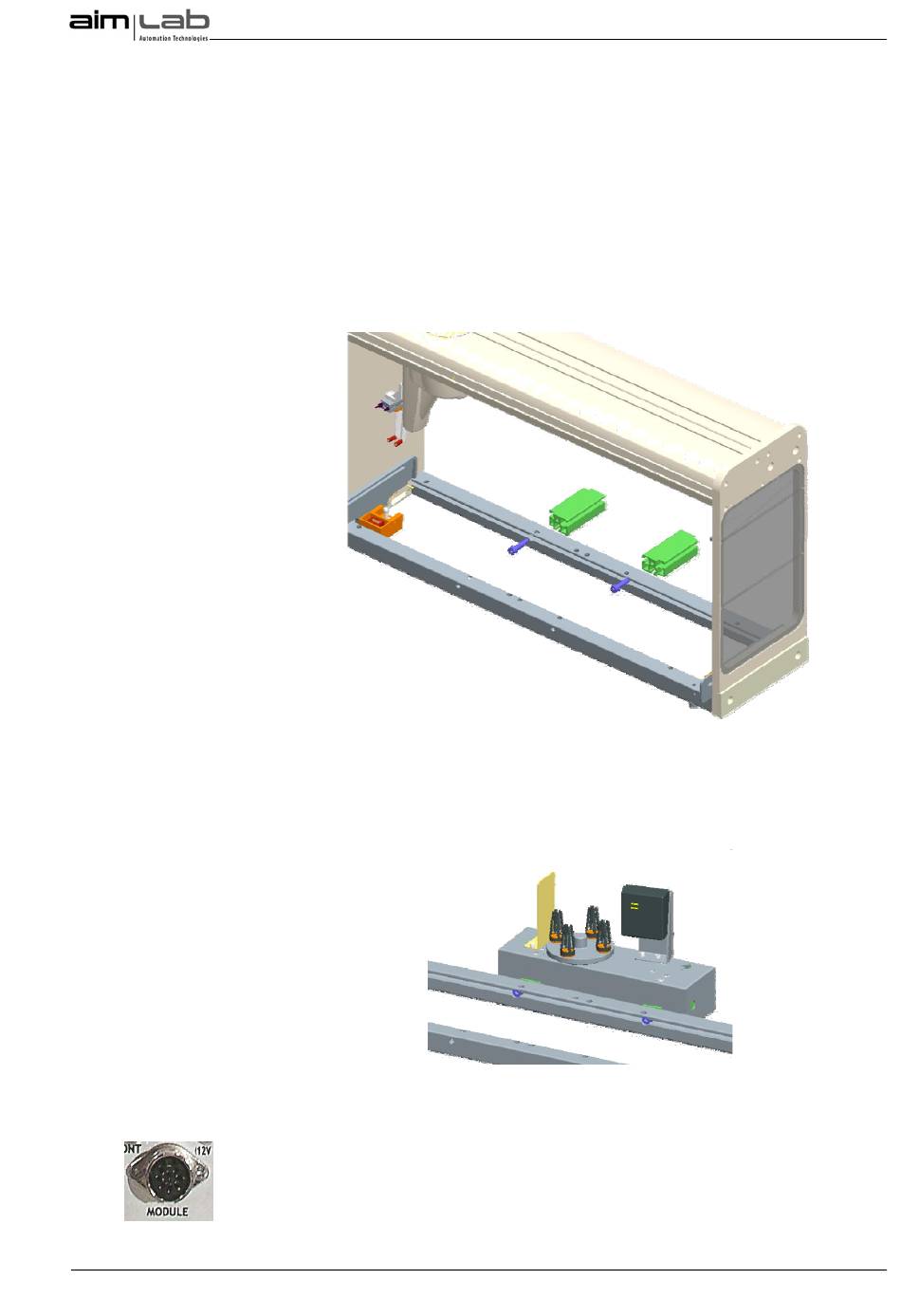

Figure 27
© Copyright 2010 Aim Lab Pty Ltd
Figure 26 Carousel Leg Installation
Carousel Installation
