Error Rack Fence Cables –
Shown already fitted.
RIGHT
Error Rack Fence
Rev E February 2010
Gate 5

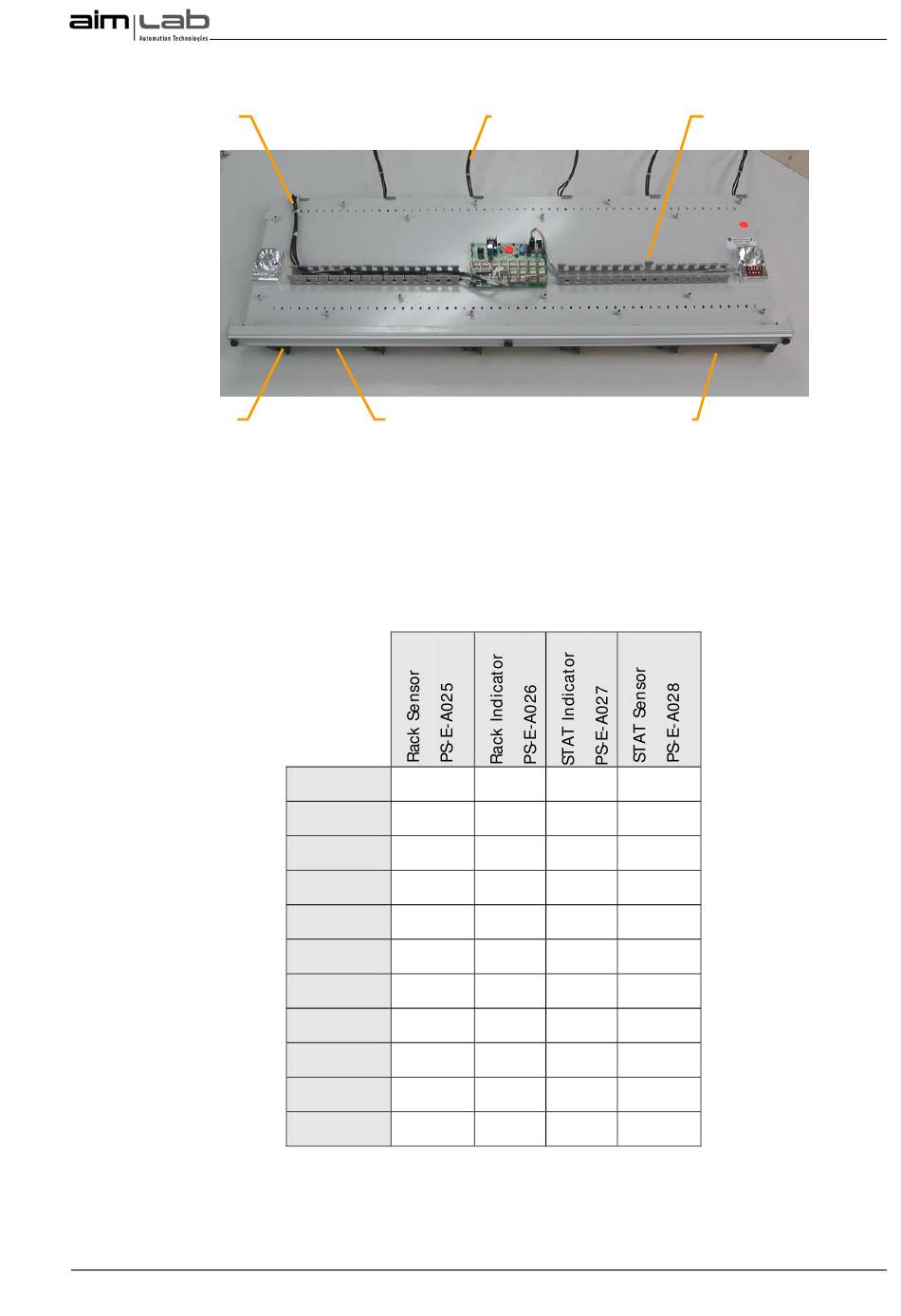

Figure 78
6. Gate 1 is the left most gate on the tray. The subsequent gates are numbered 2
thru to a maximum of 10. Referring to Table 9, connect each fence cable to its
assigned IO port on the Tray PCB.
7. Tidy the fence cables using the cable ducting.
Gate 1 B5
Gate 2 B6
Gate 3 B7
Gate 4 B8
Gate 5 C1
Gate 6 C2
Gate 7 C3
Gate 8 C4
Gate 9 C5
Gate 10 C6
Error Rack C7
Table 9
© Copyright 2010 Aim Lab Pty Ltd
Fence Cables
Rack Fence Wiring
A1
A2
A3
A4
A5
A6
A7
A8
B1
B2
B3 B4 C8
Rack Fence IO ports
PathFinder 350S Service Manual
Cable Ducting
Gate 1
LEFT
