PathFinder 350S Service Manual
Firmware Image
to Load
Scripts
Page 114

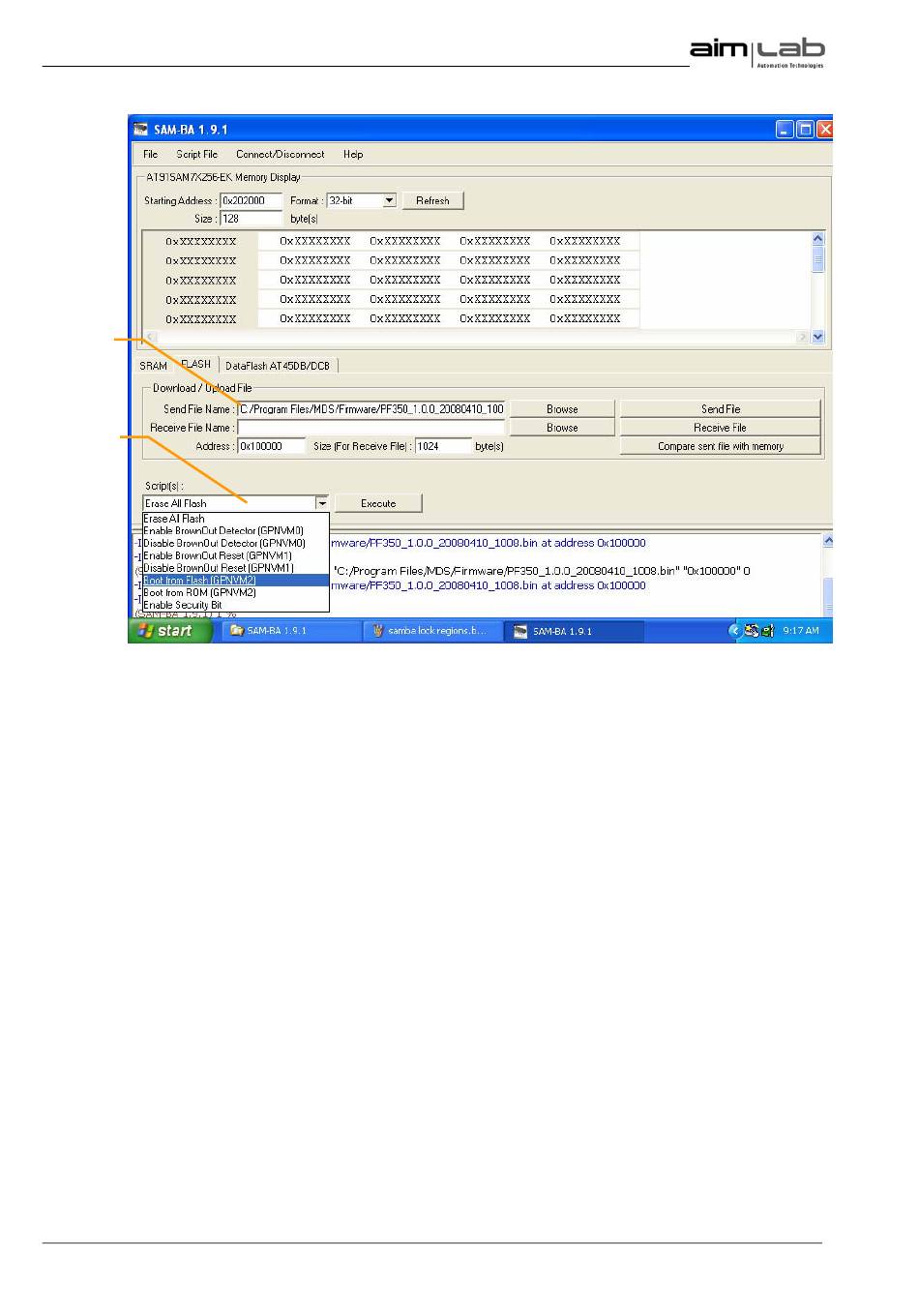

Figure 85
8. Select the Firmware Image to load (.bin file) by pressing the Browse button to
the left of the Send File Button.
9. The path for the file will be displayed in the Send File Name text box.
10. Press the Send File button.
11. SAM-BA may ask "Do you wish to unlock regions...", Press Yes.
12. The firmware download may take a minute. Once it is complete SAM-BA will ask
"Do you wish to lock regions...", Press Yes.
13. Just above the status window is a dropdown list of scripts. Select Boot From
Flash (GPNVM2).
14. Press the Execute button. The script will run instantly.
15. Close SAM-BA.
16. Press the Reset button on the Main PCB. The Sorter will initialize itself.
17. Use PDS to check the firmware version and restore the Configuration Variables,
see Section 7.6.
18. Turn off power to the PathFinder 350S and refit the tombstone cover.
© Copyright 2010 Aim Lab Pty Ltd
SAM-BA Main Window
Rev E February 2010
