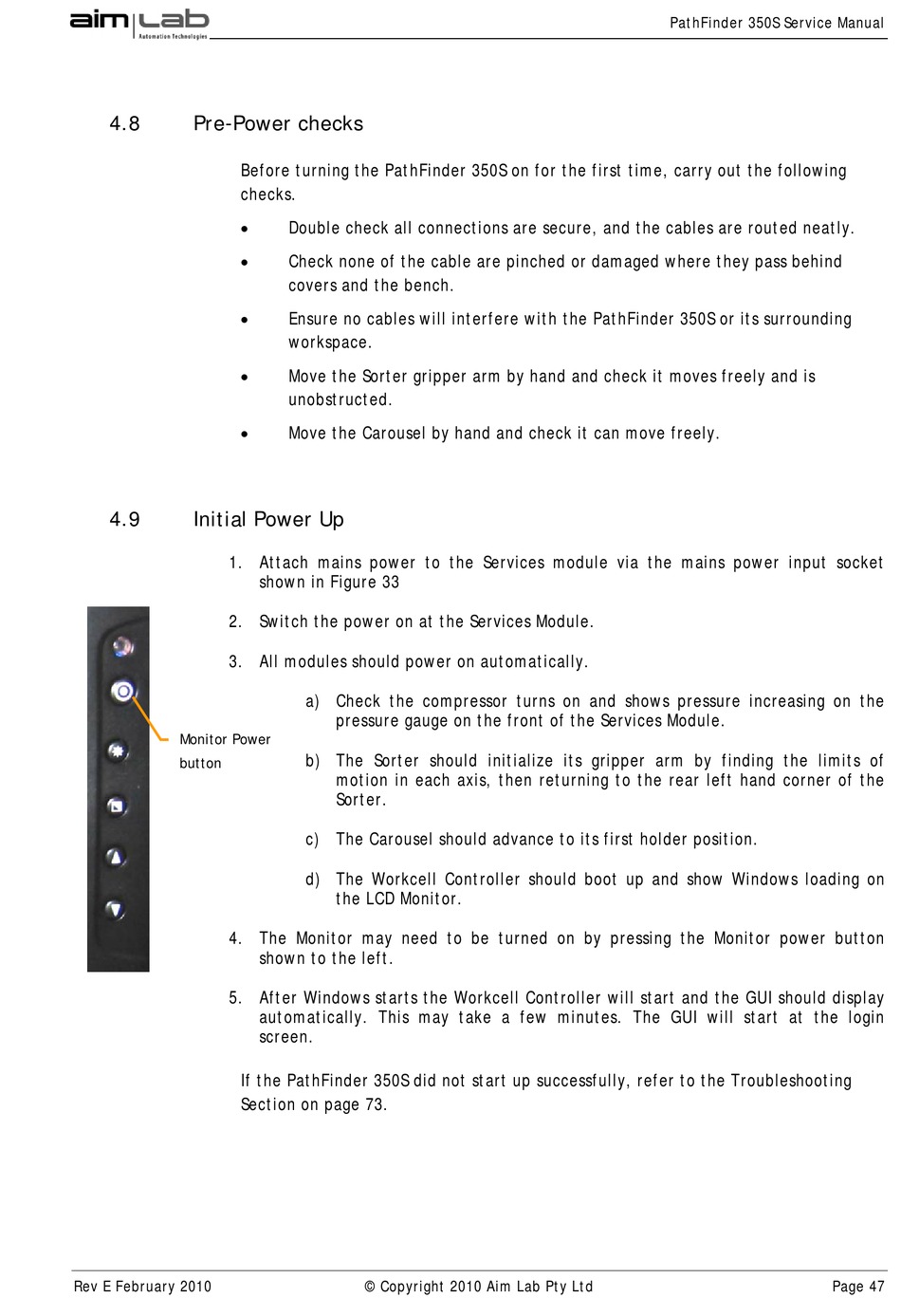

4.8

Pre-Power checks

Before turning the PathFinder 350S on for the first time, carry out the following
checks.





4.9

Initial Power Up

1. Attach mains power to the Services module via the mains power input socket
2. Switch the power on at the Services Module.
3. All modules should power on automatically.
Monitor Power
button
4. The Monitor may need to be turned on by pressing the Monitor power button
5. After Windows starts the Workcell Controller will start and the GUI should display
If the PathFinder 350S did not start up successfully, refer to the Troubleshooting
Section on page 73.
Rev E February 2010
Double check all connections are secure, and the cables are routed neatly.
Check none of the cable are pinched or damaged where they pass behind
covers and the bench.
Ensure no cables will interfere with the PathFinder 350S or its surrounding
workspace.
Move the Sorter gripper arm by hand and check it moves freely and is
unobstructed.
Move the Carousel by hand and check it can move freely.
shown in Figure 33
a) Check the compressor turns on and shows pressure increasing on the
pressure gauge on the front of the Services Module.
b) The Sorter should initialize its gripper arm by finding the limits of
motion in each axis, then returning to the rear left hand corner of the
Sorter.
c) The Carousel should advance to its first holder position.
d) The Workcell Controller should boot up and show Windows loading on
the LCD Monitor.
shown to the left.
automatically. This may take a few minutes. The GUI will start at the login
screen.
