ASSEMBLE THE APPLIANCE FOR STORAGE

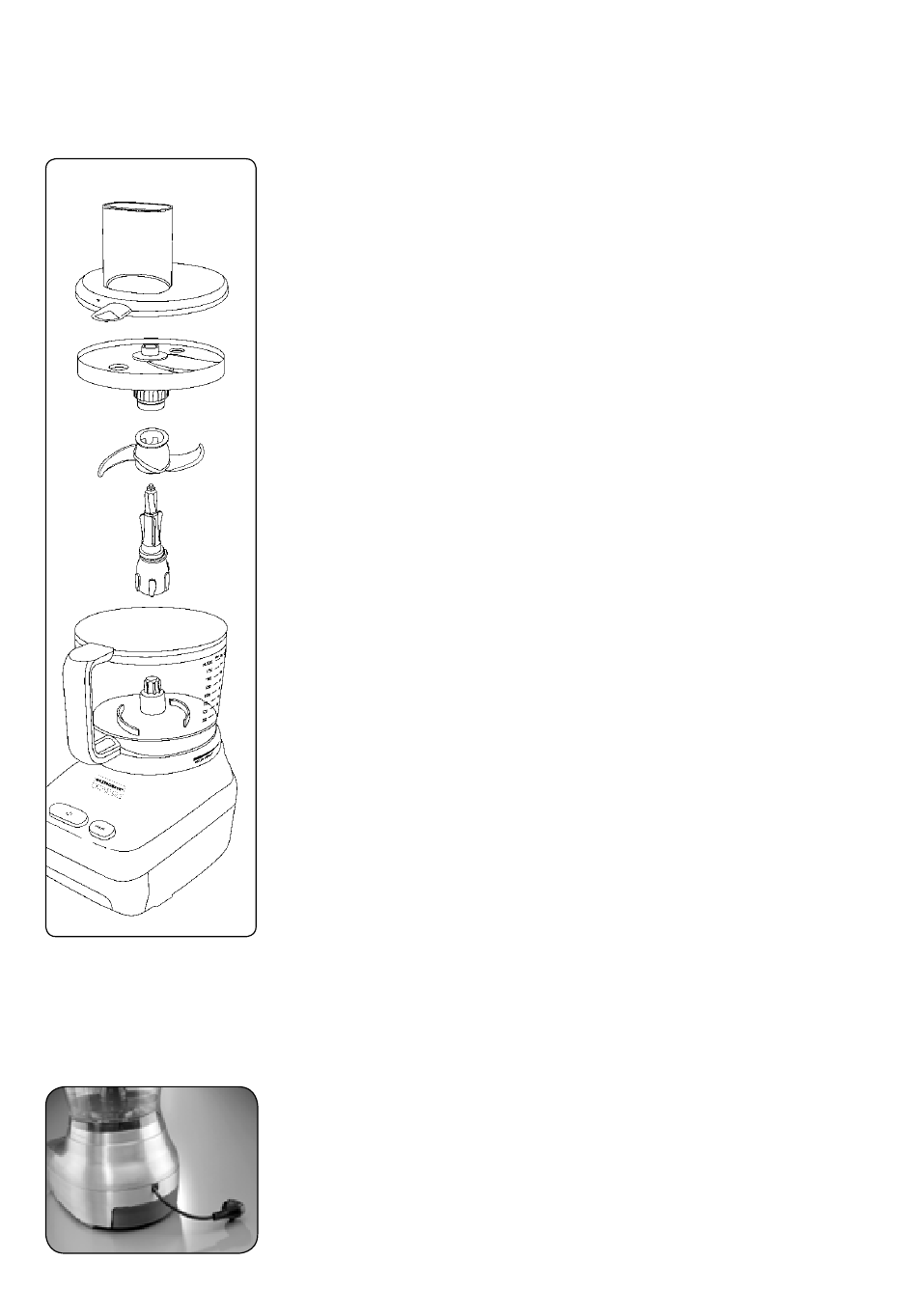

(PICTURE F):
F
(see 'Care and Cleaning'). Ensure to store the appliance and accessories (such as
the second processing bowl, mini processing bowl including the lid and the disc),
where it is clean, dry and safe from frost, direct sunlight and inadmissible strain
(mechanical or electric shock, heat, moisture) and where it is out of reach of young
children. Place the appliance on a clean and stable surface, where it can not fall.
G
A. Place the bowl on the motorblock turning it anticlockwise
until it is securely locked in position. Do not use any force.
The handle should be facing the front which is above the
control panel (picture A).
B. Fit the spindle onto the drive shaft, in the middle of the
processing bowl (picture B). The long shaft of the spindle
has to slide over the drive shaft and the end with the aglet
should face upright. If necessary turn the spindle a little to
fit in position. The spindle sticks out of the processing bowl
for 1 or 2 cm.
C. Fit the universal ›s‹ blade over the spindle and press firm-
ly into place. Ensure the blade is securely locked on the
spindle. The blade is correct assembled if the central
plastic section faces upwards and flushes with the wider
part of the spindle. The blade is placed a few millimetres
above the bottom of the processing bowl.
D. Fit the variable slicing disc over the spindle. The side with
the blade has to face upwards.
E. Take the lid and place it on top of the processing bowl
according to the instructions ›Operating with the normal
processing bowl‹).
F. Fit the food pusher including the internal pusher into the
feed chute and place the food collector underneath the
processing bowl chute. You can store the small universal
's' blade inside the food collector.
Always clean the appliance and accessories before storing
Do not place any hard or heavy objects on the appliance.
The power cord can be stored by pushing it into the back of
the motor base (picture G).
