Operating With The Processing Bowl With Chute - Gastroback DESIGN FOOD PROCESSOR ADVANCED Operating Instructions Manual

A
Note:
All attachments must be firmly attached to the spindle. Always adjust the attach-
ments until you are sure that they are correctly fitted.
4. Put the disc on top of the spindle turning the disc until the hexagonal nut of the
disc fits on the hexagon bolt of the spindle. The side with the long central plastic
selection has to face downward and the side with the dents has to face upwards.
Note:
The dents on the disc will transport the processed food into the food
collector.
IMPORTANT:
cing on the spindle. Ensure the disc is securely locked into position and can not
wobble.
5. Put the disc or blade you want to use on top of the spindle turning the disc until
the hexagonal nut of the disc fits on the hexagon bolt of the spindle. The side
which you want to use has to face upwards (regard to ›Operating the different
discs and blade‹)
B
62
OPERATING WITH THE PROCESSING BOWL WITH
CHUTE
After processing the food is guided into the food collector.
Act according to the instructions ›Operating with the normal
processing bowl‹ including point 2. The chute should be
facing the left side (picture A).

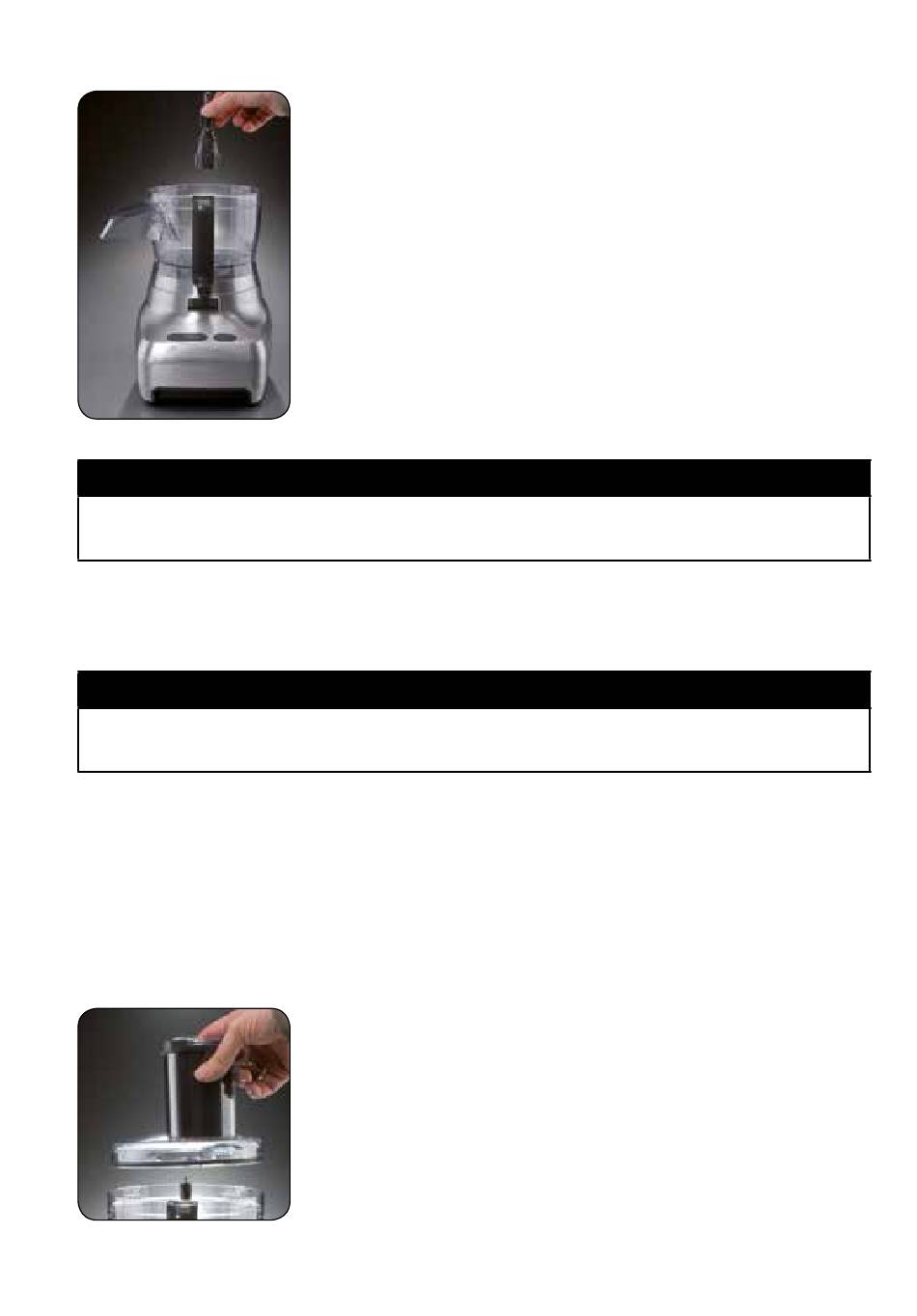

3. Fit the spindle onto the drive shaft, in the middle of the
processing A bowl (picture A). The long shaft of the disc
stem has to slide over the drive shaft and the end with the
aglet should face upright. If necessary turn the spindle a
little to fit in position. The spindle sticks out of the bowl
for 1 or 2 cm.
Pay attention to the guiding pins and cannelures on the spindle pla-
6. Position the lid onto the processing bowl (picture B). You
will notice a solid grey arrow to the left of the holding lip
on the lid, when placing the lid onto the bowl this arrow
needs to align with the solid grey arrow on the handle of
the bowl. To lock, turn the lid clockwise.
The lid has four guiding pins which have to fit into the can-
nelure of the processing bowl in order to lock the lid. Turn
the lid clockwise and push up against. The lid is securely
