Parts List
1

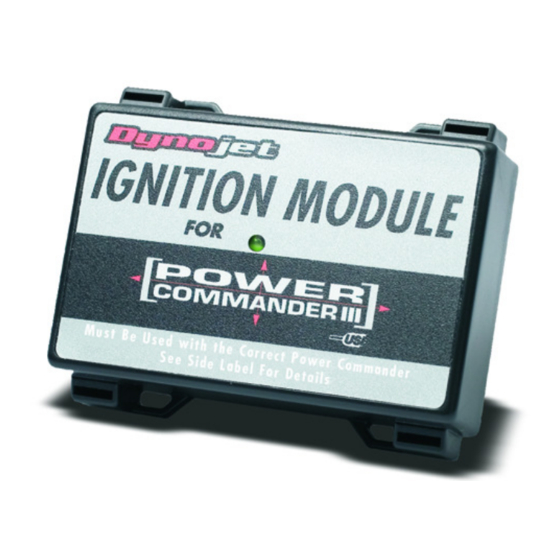

Ignition module
1
Installation Guide
2
Velcro
®
1
Alcohol Swab
6
Zip ties
You can also download the
Power Commander software and
latest maps from our web site at:
www.powercommander.com
The ignition MUST be turned OFF before installation!
This module is intended to be used in conjunction with Power Commander 437-411
Before this module can be used the
Power Commander may need to be updated.
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993
6-66
www.powercommander.com
2008 Yamaha T-Max 500
Installation Instructions
Strip
(see included instructions)
2008 Yamaha T-Max 500 - Ignition module - 1
Advertisement
Table of Contents
Related Manuals for Dynojet Power Commander III USB Ignition Module
Summary of Contents for Dynojet Power Commander III USB Ignition Module
- Page 1 Power Commander may need to be updated. (see included instructions) PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 6-66 www.powercommander.com 2008 Yamaha T-Max 500 - Ignition module - 1...
- Page 2 Ground wire from IM Remove the front fairing panel to access the battery. This panel is the one above the headlights. Install the Ignition Module on top of the PCIII using the supplied velcro (Fig. A). Remove the ignition switch cover and the central tunnel cover (Fig.
- Page 3 Route the IM harness down to the left side of the scooter following the fair- IM harness ing frame support Use the supplied plastic ties to secure Crank the IM harness to the fairing frame connectors Zip ties support (Fig. D) Locate the clear 2 pin crank pickup coil connector.
