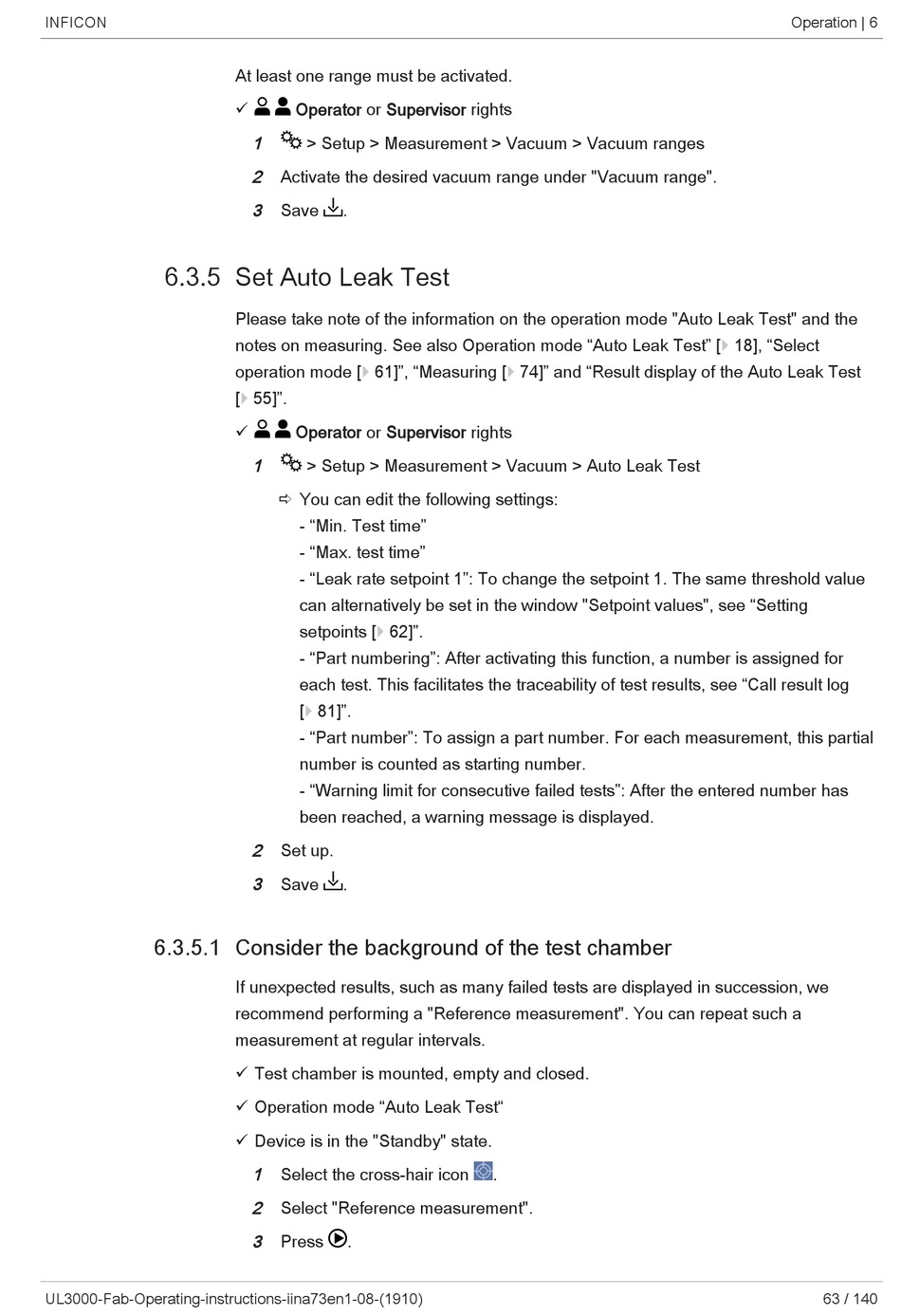

6.3.5 Set Auto Leak Test

6.3.5.1 Consider the background of the test chamber

UL3000-Fab-Operating-instructions-iina73en1-08-(1910)
At least one range must be activated.
ü
Operator or Supervisor rights
1 > Setup > Measurement > Vacuum > Vacuum ranges
2
Activate the desired vacuum range under "Vacuum range".
3
Save .
Please take note of the information on the operation mode "Auto Leak Test" and the
notes on measuring. See also Operation mode "Auto Leak Test" [} 18], "Select
operation mode [} 61]", "Measuring [} 74]" and "Result display of the Auto Leak Test
[} 55]".
ü
Operator or Supervisor rights
1
> Setup > Measurement > Vacuum > Auto Leak Test
ð You can edit the following settings:
- "Min. Test time"
- "Max. test time"
- "Leak rate setpoint 1": To change the setpoint 1. The same threshold value
can alternatively be set in the window "Setpoint values", see "Setting
setpoints [} 62]".
- "Part numbering": After activating this function, a number is assigned for
each test. This facilitates the traceability of test results, see "Call result log
[} 81]".
- "Part number": To assign a part number. For each measurement, this partial
number is counted as starting number.
- "Warning limit for consecutive failed tests": After the entered number has
been reached, a warning message is displayed.
2
Set up.
3
Save .
If unexpected results, such as many failed tests are displayed in succession, we
recommend performing a "Reference measurement". You can repeat such a
measurement at regular intervals.
ü Test chamber is mounted, empty and closed.
ü Operation mode "Auto Leak Test"
ü Device is in the "Standby" state.
1 Select the cross-hair icon
2
Select "Reference measurement".
3 Press .
.
