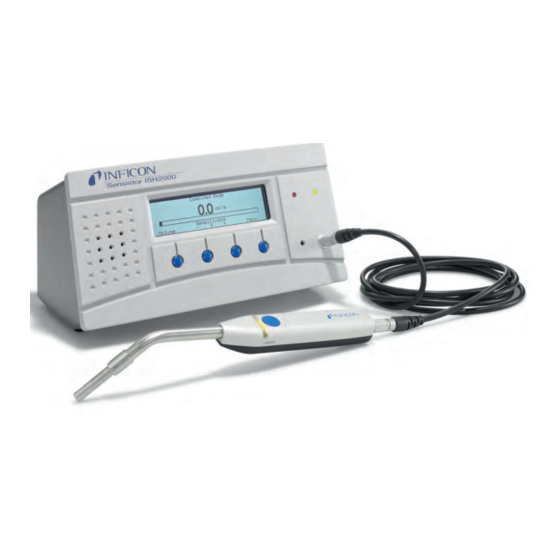

Hydrogen Leak Detector
Sensistor ISH2000
Instrument SW version 6.22
Probe SW version 1.08
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sensistor ISH2000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Inficon Sensistor ISH2000 Series

Summary of Contents for Inficon Sensistor ISH2000 Series

  • Page 1 Hydrogen Leak Detector Sensistor ISH2000 Instrument SW version 6.22 Probe SW version 1.08 Operating Manual...

  • Page 3: Table Of Contents

    8.17 Sensistor ISH2000P installation ....................45 8.18 Default parameters........................ 46 Trouble-shooting......................... 49 Sensistor ISH2000 specifications ....................50 Spare parts and accessories......................52 Support by INFICON ........................53 12.1 How To Contact INFICON ...................... 53 12.2 Returning your instrument to INFICON................... 53 OM-Sensistor ISH2000-EN-201304...
  • Page 4 Hydrogen leak detector Sensistor ISH2000 Operating Manual Menu Overview .......................... 54 Declaration of conformity ......................56 Recycling ............................57 OM-Sensistor ISH2000-EN-201304...
  • Page 5 Welcome to Sensistor ISH2000 Dear customer, You have just bought an INFICON Hydrogen Leak Detector Sensistor ISH2000. The Sensistor ISH2000 is an extremely sensitive and selective detector for hydrogen gas (H It is especially designed for leak detection using Hydrogen Tracer Gas (Hydrogen diluted with Nitrogen down to a safe concentration) which is the most effective and economical tracer gas for leak testing.

  • Page 6: User Information

    Hydrogen leak detector Sensistor ISH2000 Operating Manual User information Read this user manual carefully before using the Sensistor ISH2000. Notes and safety notices This manual contains warnings and cautions concerning the safe use of the product. See definitions below. WARNING! Warning indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 7: Description Of Equipment

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Description of equipment Sensistor ISH2000 can be purchased in one of three versions. A desktop model (Sensistor ISH2000), a battery operated model (Sensistor ISH2000C), and a panel mount model (Sensistor ISH2000P). Sensistor ISH2000 Sensistor ISH2000 is equipped with a number of powerful functions making it very easy to integrate in a semi or fully automatic test system.

  • Page 8: Sensistor Ish2000C

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Sensistor ISH2000C The battery operated model, Sensistor ISH2000C, has all the Sensistor ISH2000 features apart from the APC system. This means that only passive probes (for example Hand Probe P50) can be used. This is due to power management control. The battery, a Li-ion battery at 14.8 V, can not support the current required to operate external probes.

  • Page 9: Sensistor Ish2000P

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Sensistor ISH2000P The panel mount model, Sensistor ISH2000P, has identical features of the Sensistor ISH2000. The difference is that the Sensistor ISH2000P can be installed in the operator’s panel or any other flat surface. The instrument operates on an external +24VCD power supply, provided by the customer.

  • Page 10: Controls And Connections

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Controls and connections The controls and connections are discussed and shown in this chapter. Fig 3-1. Sensistor ISH2000 controls and indicators Sensistor ISH2000 Combined Mode (1.00E+01) cc/s Volume Sens Menu Item Description Display Loudspeaker Control push-buttons Earphone socket...

  • Page 11: Push-Buttons

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Push-buttons The functions of the push-buttons are shown at the lower edge of the display. In this manual the buttons are numbered, from left to right, 1, 2, 3, and 4. The push-buttons are used to: <...
  • Page 12 Hydrogen leak detector Sensistor ISH2000 Operating Manual Sensistor ISH2000 Fig 3-2. Sensistor ISH2000 ports and connections (rear view). Rear View Item Description Data output Probe control port Fuse Power switch Power input, 100-240 VAC Screw hole for mounting plate Sensistor ISH2000C Fig 3-3.
  • Page 13 Hydrogen leak detector Sensistor ISH2000 Operating Manual Sensistor ISH2000P Fig 3-4. Sensistor ISH2000P ports and connections (rear view). Item Description Probe connection Ground screw Power input (24 VDC) Probe control port Printer port OM-Sensistor ISH2000-EN-201304...

  • Page 14: Precautions

    Never pressurise objects that have not previously been burst tested or otherwise approved for the chosen test pressure. Note: INFICON AB can not take any responsibility for the consequences arising from the inappropriate use of certain test pressures. OM-Sensistor ISH2000-EN-201304...

  • Page 15: Hydrogen Tracer Gas For Leak Detection

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Pressure shocks might cause strong sounds which can cause impairment of hearing. Check that all relevant legislation and safety standards are complied with before putting Sensistor ISH2000 into service. Hydrogen Tracer Gas for leak detection When pure hydrogen gas is released in air its flammability range spans from 4% to 75% of hydrogen in air.

  • Page 16: Working Principle

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Working principle Gas Sensor Technology The Sensistor ISH2000 leak detector is using an extremely sensitive hydrogen gas sensor based on a metal-oxide-semiconductor field-effect-transistor (MOS-FET). The gas sensitivity appears when hydrogen absorbs into the sensor through a metal alloy (metal hydride) layer.

  • Page 17: Operating The Detector

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Operating the detector To Detect Leaks If all you wish to do is to detect the presence of a leak, that is, find out whether there is a leak or not, then use the Locating Mode (or use the Locating bar in Combined Mode).

  • Page 18: To Quantify Leaks

    CAUTION! • Do not open detector! Service of this equipment may only be carried out by ser- vice organizations authorized therefore by INFICON, Sweden. • If the detector gets outer damage it must be controlled and repaired by service organization authorized by INFICON.

  • Page 19: Calibrate The Leak Detector

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Calibrate the leak detector Introduction The leak detector is the instrument and the probe together. This section of the operating manual consists of step by step examples on how to calibrate the detector in the most common cases. For more about the calibration routine, see the reference section.

  • Page 20: Calibration Procedure

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Calibration procedure Calibration Value, Calibration Unit and Leak Gas Calibration Before calibration, the in the Menu must be set. See “Calibration value with Calibration leak” and “Calibration value with Calibration gas” below. Let the instrument be in operation for at least 30 minutes to achieve the best conditions for a calibration.

  • Page 21: Calibration Value With Calibration Gas

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Leak Gas 3- Set = Helium Feed the Calibration leak with hydrogen tracer gas at the pressure stated on Note: the Calibration certificate. If another pressure is used you must correlate the Calibration Value resulting flow and use this value as The resulted concentration from the Calibration leak should be within the Note:...

  • Page 22: Reference Section

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Reference section This section of the user manual consists of an in-depth explanation and additional information, which completes the operating manual with all relevant information. Menu system The menu system is designed as a tree structure similar to that used in mobile telephones.

  • Page 23: Button Functions

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Button functions The buttons may change functions in different menus. Always read the text, just above the buttons in the display, for the button functions. Save Enter All changes in values are valid only when saved using the button (button 4).
  • Page 24 Hydrogen leak detector Sensistor ISH2000 Operating Manual Sensitivity too low for reject level The Detector will warn if sensitivity of sensor is too low to safely detect a leak equal to the set Reject Level limit. The warning can be ignored and calibration updated and the CAL_CONF output will be set.
  • Page 25 Hydrogen leak detector Sensistor ISH2000 Operating Manual Message Explanation Action No gas or unstable signal. No gas signal or no stable Check if Calibration leak/ signal detected during gas valve is shut. calibration. Check that probe tip is not clogged. Signal when Calibration Check the calibrate gas gas is shut off.
  • Page 26 Hydrogen leak detector Sensistor ISH2000 Operating Manual Calibration can be performed with: • a known hydrogen concentration • a known flow leak The following characters can be used: Upper and lower case Roman letters, the ü, numbers ü, Å, Ä,Ö, å,ä,ö,%,/,(,),and - (dash). The space (““) is not supported.

  • Page 27: Locating Mode Settings

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Password Protected Calibration If desired, the calibration can be set under the general password to prevent the operator from calibrating by mistake. In this case you will have to enter the password to start the calibration routine. Setting password protection on calibration General Settings is done in the menu.
  • Page 28 Hydrogen leak detector Sensistor ISH2000 Operating Manual over the condenser, the signal will increase as the probe approaches the leak. If the signal goes off the scale, simply reduce the sensitivity setting to bring the signal within the scale. By working with the sensitivity setting in this way, you will be able to locate multiple leaks that are in close proximity to each other.

  • Page 29: Measuring Mode Settings

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Audio Ready Pulse This sets the standby sound to a silent or pulsating tone. Measuring Mode Settings Measuring Mode the measured value is displayed in figures. The default unit is in cc/s but it is possible to choose other units, See “Default parameters” on page 46. To Measure Leaks The Measuring Mode is used for measuring the size of a leak (or the concentration of a gas sample).
  • Page 30 Hydrogen leak detector Sensistor ISH2000 Operating Manual Displayed Gas Displayed Gas is the unit shown on the display. If another gas is chosen, the measured value is automatically recalculated. When selecting different types of gas it is assumed that the same type of Note: tracer are used in both calibration leak and test objects (typically 95% N2 /5% H2).

  • Page 31: Apc Settings

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Min Presentation Time Measuring Mode Signal values in will never be presented shorter than this time. Values are, however, always presented until the signal has recovered. The default value is 1 second, but values from 0 - 120 seconds can be used. Display Threshold Reject Level Hides all measurements under a set % of...

  • Page 32: Display Settings

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Quick purging also enhances signal repeatability. Purge level interrupts active sampling of APC probes. This means that higher Note: signals will be underestimated as the sensor is purged before full signal has developed. Reset Signal Reset the sensor signal in Measuring mode and Locating mode.
  • Page 33 The default is no password (“”). Password Protected Contact INFICON AB if you have lost your user password. If the Calibration parameter is set to you will be prompted for a password when starting a calibration.

  • Page 34: Service Settings

    Settings Display Settings General Settings Service Settings* * For password to access , please contact INFICON. Service Setting Audio Base Frequency This sets the lowest audio base frequency tone in Measuring and Locating Mode. Set Clock Real time set as hh:mm:ss. Hours and minutes can be adjusted. Seconds will automatically be set to 00 when hours and minutes have been set.
  • Page 35 Operating Manual Show Password Shows the chosen password in case the customer has forgotten the password. Contact INFICON AB to have the code sent to you. See the web address under the section-Info. Instrument System Reset Resets all parameters to default settings. Contact INFICON AB to have the code sent to you.

  • Page 36: Combined Mode

    Hydrogen leak detector Sensistor ISH2000 Operating Manual calibration is required to be useful. Contact INFICON AB to have the code sent to you. See the web address under section-Info. Debug Mode This mode is used during service and software development.

  • Page 37: Probe Control Port

    Hydrogen leak detector Sensistor ISH2000 Operating Manual 3. Remove the union nut by hand. The o-ring in the union nut creates some friction. 4. Remove the probe tip by drawing it straight out. 5. Mount a new probe tip. Make sure it is in correct position. 6.
  • Page 38 Hydrogen leak detector Sensistor ISH2000 Operating Manual Type Signal name DET_ERROR LEAK_OUT DET_ON DET_SIGNAL DET_WAIT OUT_0 OUT_1 OUT_2 OUT_3 OUT_4 OUT_5 24 VDC OUT Status signal patterns Table 8-3. Status signals for pin 14 - 18. Signal Function DET_SIGNAL Gas detected / Sensor not recovered. DET_WAIT High during warm-up.

  • Page 39: Printer Port

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Fig 8-4. Status signals after power on. Locating or Measuring Power off Power on Warming up Mode. No gas detected. DET_ERROR DET_ON DET_WAIT DET_SIGNAL LEAK_OUT When detecting a gas signal Fig 8-5. Status signals when detecting a gas signal. Gas signal Purge level Purge level...
  • Page 40 Hydrogen leak detector Sensistor ISH2000 Operating Manual Signal Comments Signal ground (DSR) Not used (RTS) Not used (CTS) Not used +7 VDC Power feed USB/RS232 converter Only pin 2 (Received data), pin 3 (Transmitted data) and pin 5 (Signal ground) are used.
  • Page 41 Hydrogen leak detector Sensistor ISH2000 Operating Manual Note: Due to the large variety of printers available on the market, INFICON does not take responsibility for the operation of a particular type of printer. Printed data The detector can print the following information: Date and Time for Power on of detector.
  • Page 42 Hydrogen leak detector Sensistor ISH2000 Operating Manual Character Result of the test Calibration failed. Previous cycle was calibration. Test interrupted by “Error” that occurred during cycle (probe or sensor error etc.). 2.5E-04R (LF) Example: This example is a line feed (LF), R means that the test was above the Reject Level limit, and the value was 2.5E-04.
  • Page 43 Hydrogen leak detector Sensistor ISH2000 Operating Manual Data Setting No Printer PC Printer Output Stop bits Parity None None None Flow control None None None RS232 interface commands Table 8-11. Common used functions. Action Command Header Data Calibration Request None Measure Request None Print Request...
  • Page 44 Hydrogen leak detector Sensistor ISH2000 Operating Manual Setup Command Header Data Calibration Fail text Custom Text string (max 35 characters) To return to the original text just leave the text string empty. Reject Level n.nnE+nn Correlation Value n.nnE+nn Measuring Unit Custom Text string (max 12 characters) Measuring Unit...

  • Page 45: Sensistor Ish2000P Installation

    Battery operated model Sensistor ISH2000 does not incorporate the APC Note: feature. For custom APC driver design and installation contact support at INFICON. 8.17 Sensistor ISH2000P installation The panel mount model can be installed in the operator’s panel or any other flat surface of your leak tester.

  • Page 46: Default Parameters

    Hydrogen leak detector Sensistor ISH2000 Operating Manual Installation process Table 8-13. Install the detector as follows Step Action Cut hole in panel according to figure above, and remove burrs. Check that rubber o-ring is in correct position in the grove around the edge of the detector. Put the detector in place in the panel hole.
  • Page 47 Hydrogen leak detector Sensistor ISH2000 Operating Manual Parameter Range Default Battery mode ON/OFF Brightness 0 - 21 Calibration Time Min Calibra. Time-30 s Calibration Tolerance 0-100% Calibration Unit Several Choices cc/s Calibration Value 1.00E-37 - 1.00E+37 1.00E+01 Contrast 0-20 Correlation Values 1.00E-37 - 1.00E+37 1.00E+00 Data Output...
  • Page 48 Hydrogen leak detector Sensistor ISH2000 Operating Manual Parameter Range Default Reject Indicator ON/OFF (Locating Mode) Purge Level 1.00E37 - 1.00E+37 1.00E+02 Reject Indication ON/OFF (Locating) Reject Indication ON/OFF OFF OFF (Measuring) Reject Level 1.00-E-37 - 1.00E+37 1.00E+01 Screen Save Timeout 1 - 60 min 20 min Sensitivity...

  • Page 49: Trouble-Shooting

    If the measures described below do not result in a functioning instrument, send or hand in the instrument to an authorized service workshop for repair. See “Support by INFICON” on page 53. WARNING! Opening or dismantling a Sensistor ISH2000 that is powered up can cause serious personal injury or danger to life.

  • Page 50: Sensistor Ish2000 Specifications

    Hydrogen leak detector Sensistor ISH2000 Operating Manual 10 Sensistor ISH2000 specifications Table 10-1. Power supply specifications. Sensistor Sensistor Sensistor Power ISH2000 ISH2000C ISH2000P AC mains voltage 100-240 V 50/ 100-240 V 60Hz. 50/60 Hz AC mains current Typically 1 A (2 A Typically 300 mA pulse at power on).
  • Page 51 Hydrogen leak detector Sensistor ISH2000 Operating Manual Sensistor Sensistor Sensistor Input/output ISH2000 ISH2000C ISH2000P Output high 22-24 VDC > (Supply voltage - 2.5 VDC) Output low < 1.5 VDC < 1.5 VDC Serial communication 9-pol D-sub male 9-pol D-sub male 9-pol D-sub male port connector Serial communication...

  • Page 52: Spare Parts And Accessories

    There are a variety of spare parts and accessories to the Sensistor ISH2000. In the following table some of these are presented, for a complete list of all spare parts www.inficon.com and accessories please visit Table 11-1. Spare parts and accessories.

  • Page 53: Support By Inficon

    Customer Support Representative. You must obtain a Return Material Authorization (RMA) number from the Customer Support Representative. If you deliver a package to INFICON without an RMA number, your package will be held and you will be contacted. This will result in delays in servicing your instrument.

  • Page 54: Menu Overview

    Hydrogen leak detector Sensistor ISH2000 Operating Manual 13 Menu Overview Volume Sens Change Test Mode Measuring Mode Menu Locating Mode ¹⁾ Combined Mode Calibration Calibrate Calibration Value Calibration Unit Leak Gas Calibration Time Interval Password Protected Calibration Locating Mode Settings Sensitivity Auto Range Direct Sensitivity Adjustment...
  • Page 55 Hydrogen leak detector Sensistor ISH2000 Operating Manual Volume Sens ²⁾ Menu APC Time D ²⁾ Purge Level ²⁾ Reset Signal Display Settings Contrast Brightness Invert Colors Screen Save Timeout General Settings Correlation Value Language Measure/Print Button Probe Button Probe Lamp Change Password Password Protection Level Audio Base Frequency...

  • Page 56: Declaration Of Conformity

    RoHS Restriction of the use of certain hazardous substances in electrical and electronic equipment (202/95/EC) * Relevant only for battery charger (CE marked) on the Battery operated model. Manufacturers declaration provided on request. For INFICON AB, September 01, 2011 ____________________________________ Fredrik Enquist / R&D Manager INFICON AB Box 76, SE-581 02 Linköping, Sweden...

  • Page 57: Recycling

    If you wish you can return this INFICON AB product to the manufacturer for recovery. The manufacturer has the right to refuse taking back products that are inadequately packaged and thereby presents safety and/or health risks to the staff.
