Controls
Rotating machinery can cause serious injury to the operator and
bystanders. Turn off and lock out the machine before making the pre-start
checks. When operating the machine, always be aware of the location of
all people in the vicinity of the machine.
Before Machining
Be sure the machine is secured to the work piece or fixture, and that it has been leveled
•
or aligned to the job's requirements.
Verify that the rigging has been removed from the machine. Do not remove the lifting
•
eyes.
Ensure setup tools are removed.
•
Verify that the machine can move the full length without collisions.
•
Ensure the milling head is properly setup.
•
Page 54

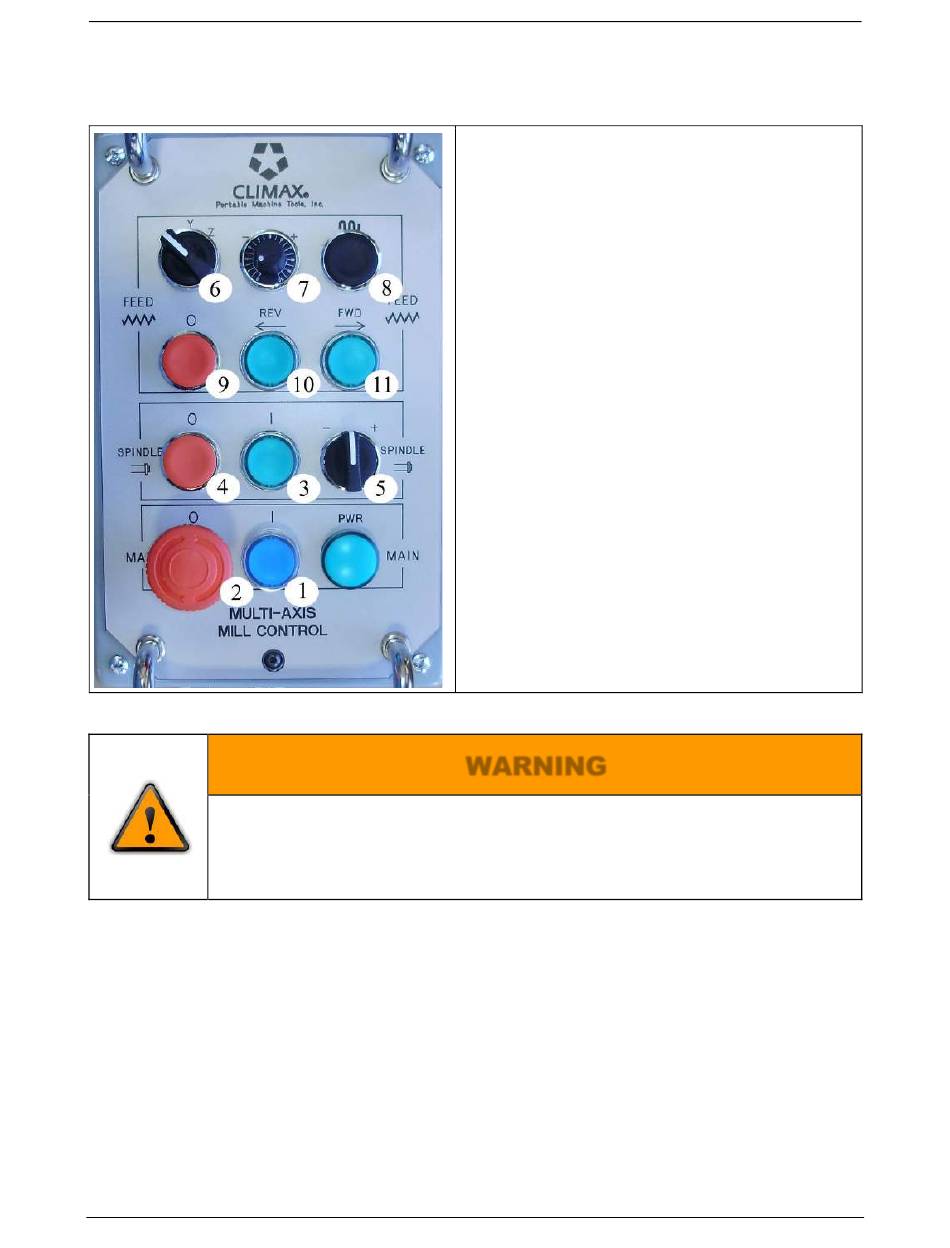

Main Power
Power on (1): Turns main power on to the HPU
E-Stop (2): Push to stop everything, twist to
release and enable the system reset.
Spindle Controls
Spindle Start (3)
Spindle Stop (4)
Flow Control (5): Faster/Slower momentary
selector: controls hydraulic spindle speed.
Feed Controls
Axis Selector Switch (6): Selects which feed
axis is active. Bed (X-axis), Ram (Y-axis), or the
Milling Head (Z-axis).
Rapid Traverse (8): Momentary Override of the
feed speed selector and increases feed speed to
maximum while the button is pressed. When
released feed speed will return to that indicated
on the feed speed selector knob.
Feed Speed Control Knob (7): Increases and
decreases feed speed.
Feed Stop (9)
Feed Start Reverse (10)
Feed Start Forward (11)
WARNING
