Climax VM8000 Operating Manual

Valve reseating machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

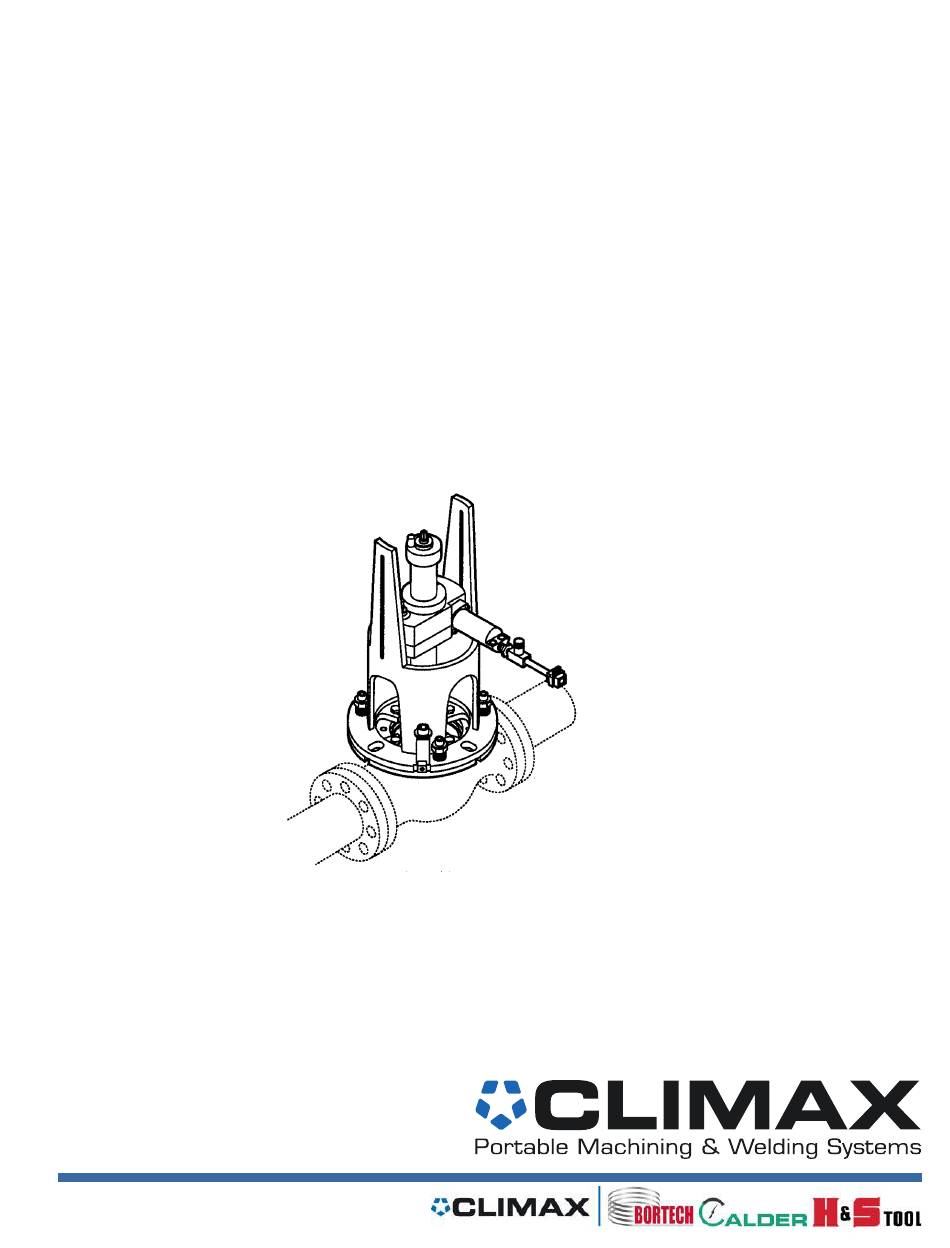

VM8000
VALVE RESEATING MACHINE
OPERATING MANUAL
ORIGINAL INSTRUCTIONS
P/N 21433
May 2017
Revision 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Climax VM8000

Summary of Contents for Climax VM8000

  • Page 1 VM8000 VALVE RESEATING MACHINE OPERATING MANUAL ORIGINAL INSTRUCTIONS P/N 21433 May 2017 Revision 0...
  • Page 3 CLIMAX. CLIMAX hereby grants permission to download a single copy of this manual and of any revision hereto onto an electronic storage medium to be viewed and to print one copy of this manual or any revision hereto, pro-...
  • Page 4 CLIMAX GLOBAL LOCATIONS Page B VM8000 Operating Manual...
  • Page 5 CLIMAX will, at its option, either repair or replace the defective part and/ or correct any defect in the labor performed, both at no charge, and return the part or repaired machine shipping prepaid.
  • Page 6 This page intentionally left blank Page D VM8000 Operating Manual...

  • Page 7: Table Of Contents

    TABLE OF CONTENTS HAPTER ECTION 1 INTRODUCTION ............1 .
  • Page 8 ASSEMBLY DRAWINGS ......... .31 Page ii VM8000 Operating Manual...
  • Page 9 LIST OF FIGURES IGURE 2-1 Components ..............8 3-1 Assembly components .
  • Page 10 Page iv VM8000 Operating Manual...
  • Page 11 LIST OF TABLES ABLE 1-1 Sound levels ..............3 1-2 Risk assessment checklist before set-up .
  • Page 12 This page intentionally left blank Page vi VM8000 Operating Manual...

  • Page 13: Introduction

    The appendices contain supplemental product information to aid in setup, operation, and maintenance tasks. Read this entire manual to familiarize yourself with the VM8000 before attempt- ing to set it up or operate it. AFETY ALERTS Pay careful attention to the safety alerts printed throughout this manual.

  • Page 14: General Safety Precautions

    ENERAL SAFETY PRECAUTIONS CLIMAX leads the way in promoting the safe use of portable machine tools and valve testers. Safety is a joint effort. You, the end user, must do your part by being aware of your work environment and closely following the operating procedures and safety precautions contained in this manual, as well as your employer’s safety...

  • Page 15: Machine - Specific Safety Precautions

    Moving parts – CLIMAX machines have numerous exposed moving parts and interfaces that can cause severe impact, pinching, cutting, and other injuries. Except for stationary operating controls, avoid contact with mov- ing parts by hands or tools during machine operation. Remove gloves and secure hair, clothing, jewelry, and pocket items to prevent them from becoming entangled in moving parts.

  • Page 16: Risk Assessment And Hazard Mitigation

    Due to the unique nature of portable machining applications, identifying one or more hazards that must be addressed is typical. When performing the on-site risk assessment, it is important to consider the Porta- ble Machine Tool and the workpiece as a whole. Page 4 VM8000 Operating Manual...

  • Page 17: Risk Assessment Checklist

    ISK ASSESSMENT CHECKLIST The following checklist is not intended to be an all inclusive list of things to watch out for when setting up and operating this Portable Machine Tool. However, these checklists are typical of the types of risks the assembler and operator should con- sider.
  • Page 18 This page intentionally left blank Page 6 VM8000 Operating Manual...

  • Page 19: Overview

    OVERVIEW EATURES AND COMPONENTS The VM8000 is designed to machine to a depth of 16" (406 mm) with a 10" (254 mm) stroke. Maximum reach is 18" (457 mm). It can be powered either hydrauli- cally or pneumatically. Three tool holders enable the Model VM8000 to face and turn diameters from 3.0"...
  • Page 20 2-1. C IGURE OMPONENTS Page 8 VM8000 Operating Manual...

  • Page 21: Setup

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20 UTTING EXISTING THREADS This section describes the setup and assembly procedures for the VM8000 valve reseating machine.

  • Page 22: Machine Assembly

    The machine ships from CLIMAX with a heavy coating of LPS 3. The recom- mended cleaner is LPS PreSolve Orange Degreaser. All parts must be cleaned before use. ACHINE ASSEMBLY CAUTION Working machinery can cause serious injury. Turn off and lock out the power supply lines before setting up the machine.
  • Page 23 3. Select the appropriate tool holder. Remove the end cap, insert the tool holder and reattach the cap. 4. Position the sharpened tool bit in the tool holder. Tighten the set screws. Sharpen tool bits to the geometry shown in Figure 3-3. 3-2.

  • Page 24: Hydraulic Power Connection

    2. Place the motor drive key in the key seat, then slide the shaft into the rotational drive body. 3. Mount the motor and flange to the rotational drive body using the two socket-head cap screws. Page 12 VM8000 Operating Manual...

  • Page 25: Air Power Connection

    To connect the motor to the hydraulic power unit: 1. Be sure the hydraulic power unit is OFF and the power is locked out. 2. Clean all fittings. CAUTION To prevent serious damage to the hydraulic power unit, be sure the hydraulic motor is connected to the hydraulic power supply before turning it on.

  • Page 26: Machine Feeds

    Radial feed can be either manual or automatic. For manual feed, remove the pinion gear from the radial feed end cap. Place a crank handle on the spur gear drive shaft. One full turn moves the tool holder radially .025" (.63 mm) Page 14 VM8000 Operating Manual...

  • Page 27: Measuring

    HREADING TTACHMENT The Model VM8000 Threading Attachment is designed for on-site maintenance of Fisher type control valves. The attachment cuts threads from 8 to 20 threads per inch in bores ranging from 3.0" (76.2 mm) to 10.0" (254 mm) diameter.

  • Page 28: Mounting To The Machine

    3. Align the feed shaft and the motor drive shaft, and slide the feed box against the rotational drive unit. 4. Use the four 5/16-18 x 2" long socket head cap screw to attach the feed box to the rotational drive. Page 16 VM8000 Operating Manual...

  • Page 29: Preparation, Set Up, And Operation

    Machine setup and operation with the threading attachment is the same as the stan- dard Model VM8000. See Section 3.2 on page 10 through Section 3.7 on page 15. Before starting the threading operation, have a good supply of sharp tool bits on hand.
  • Page 30 “C” on the lid of the threading attachment gear box. 6. Align the split in the locking collar with “B” on the rotational drive body. Tighten the collar. Page 18 VM8000 Operating Manual...

  • Page 31: Cutting New Threads

    3.9.2 Cutting new threads NOTICE The .001" (.025 mm) increments indicated by the dial at “D” measure radius, not diameter. 1. Radially advance the tool bit to the desired diameter. Zero out the “D” dial on top of the turning bar. 2.

  • Page 32: Cutting Existing Threads

    With an ink marker or tape, place a reference point on the side of the torque arm. This mark shows the start of the cut and the home position. Use the top of the rotational drive as the travel indicator. Page 20 VM8000 Operating Manual...
  • Page 33 2. Zero the dial at position “A”. The machine is now at home position. 3. Loosen the locking collar. Using a soft mallet, move the boring bar to just above the area to be threaded. 4. Install the M40-5 Stanley air motor (the longer motor).
  • Page 34 12. Start the machine by opening the air motor valve. Continue cutting until the tool bit enters the thread relief. Stop the machine by shutting the air motor valve. 13. Repeat steps 2 through 12 until all threads are sufficiently cleaned up. Page 22 VM8000 Operating Manual...

  • Page 35: Operation

    OPERATION IN THIS CHAPTER: 4.1 P - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23 OPERATION CHECKS 4.2 O - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23...

  • Page 36: Disassembly

    3. Remove the main body from the base plate. 4. Unclamp the base plate from the centering plate. 5. Remove any standoffs, if necessary. 6. Remove the centering plate from the work piece. 7. Store the machine as described in Section 6. Page 24 VM8000 Operating Manual...

  • Page 37: Maintenance

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 ROPER STORAGE PPROVED LUBRICANTS CLIMAX recommends using the following lubricants at the locations indicated. Failure to use the appropriate lubricants can result in damage and premature machine wear.

  • Page 38: Main Body Assembly

    • Drain the air filter periodically or when dirty. 5.2.6 Threading attachment Though internal components of the threading attachment gear box are mainte- nance-free, repack with grease each time the gears are changed. Page 26 VM8000 Operating Manual...

  • Page 39: Proper Storage

    5.2.7 Proper storage Proper storage of Model VM8000 Valve Reseating Machine will prevent undue deterioration or damage. Before storing, clean the machine with solvent to remove grease, metal chips, and moisture. Spray the machine with a moisture-protective material (WD-40 for short-term storage, Cosmoline for long-term storage) to pre- vent rusting.
  • Page 40 This page intentionally left blank Page 28 VM8000 Operating Manual...

  • Page 41: Storage And Shipping

    STORAGE AND SHIPPING IN THIS CHAPTER: 6.1 S - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29 TORAGE 6.1.1 S - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29...

  • Page 42: Shipping

    To decommission the valve reseating machine prior to disposal, remove the drive assembly from the RDU and dispose of the drive assembly separately from the rest of the machine components. Refer to Appendix A for component assembly infor- mation. Page 30 VM8000 Operating Manual...

  • Page 43: Appendix Aassembly Drawings

    APPENDIX A ASSEMBLY DRAWINGS Drawing list A-1. R (P/N 31024) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 32 IGURE OTATIONAL DRIVE ASEMBLY A-2.

  • Page 44: Igure A-1. Rotational Drive Asembly (P/N 31024)

    ASSEMBLED 20166 10474 11777 A-1. R (P/N 31024) IGURE OTATIONAL DRIVE ASEMBLY Page 32 VM8000 Operating Manual...

  • Page 45: Igure A-2. Rotational Drive Asembly Parts List 1 (P/N 31024)

    BUSHING 1.469 OD X .876 ID X .866 14814 RING SNAP 19/32 OD X .039 TH 14817 HOUSING ROTATIONAL DRIVE VM8000 16207 LEADSCREW & NUT ASSY VM8000 20746 PLUG HOLE 5/8 ID 20972 BRG RACE 1.000 ID X 1.250 OD X .765 22229 VALVE NEEDLE 1/2 IN.

  • Page 46: Igure A-3. Rotational Drive Asembly Parts List 2 (P/N 31024)

    PARTS LIST ITEM P/N: DESCRIPTION 30988 DIAL INCH VM8000 52546 SHIM 7/8 ID X 1-3/8 OD X .001 STEEL 71119 SHIM 7/8 ID X 1-3/8 OD X .001 STEEL 76698 ASSY MOTOR .79 CU IN 5/8 SHAFT W/HOSES 76744 MOTOR AIR MODIFIED STANLEY 76812 KEY 3/16 SQ X 3.45 STEPPED .155...
  • Page 47 This page intentionally left blank P/N 21433, Rev. 0 Page 35...

  • Page 48: Igure A-4. Main Body Assembly (P/N 14697-M)

    A-4. M (P/N 14697-M) IGURE AIN BODY ASSEMBLY Page 36 VM8000 Operating Manual...

  • Page 49: Igure A-5. Main Body Assembly Parts List (P/N 14697-M)

    A-5. M (P/N 14697-M) IGURE AIN BODY ASSEMBLY PARTS LIST P/N 21433, Rev. 0 Page 37...

  • Page 50: Igure A-6. Turning Bar Assembly (P/N 31028)

    A-6. T (P/N 31028) IGURE URNING BAR ASSEMBLY Page 38 VM8000 Operating Manual...

  • Page 51: Igure A-7. Turning Bar Assembly Parts List (P/N 31028)

    A-7. T (P/N 31028) IGURE URNING BAR ASSEMBLY PARTS LIST P/N 21433, Rev. 0 Page 39...

  • Page 52: Igure A-8. Threading Attachment (P/N 16208)

    A-8. T (P/N 16208) IGURE HREADING ATTACHMENT Page 40 VM8000 Operating Manual...

  • Page 53: Igure A-9. Threading Attachment (P/N 16208-M)

    A-9. T (P/N 16208-M) IGURE HREADING ATTACHMENT P/N 21433, Rev. 0 Page 41...

  • Page 54: Able A-1. Spare Parts Kit

    10874 WRENCH END ¾ 10199 WRENCH HEX ¼ SHORT ARM 10200 WRENCH HEX 1/8 SHORT ARM 11082 WRENCH HEX 3/16 SHORT ARM 11919 WRENCH HEX 3/8 SHORT ARM 10600 WRENCH HEX 5/32 SHORT ARM Page 42 VM8000 Operating Manual...
