4. Tighten the 6 M16 fasteners to 200 ft-lb to hold the sections together.

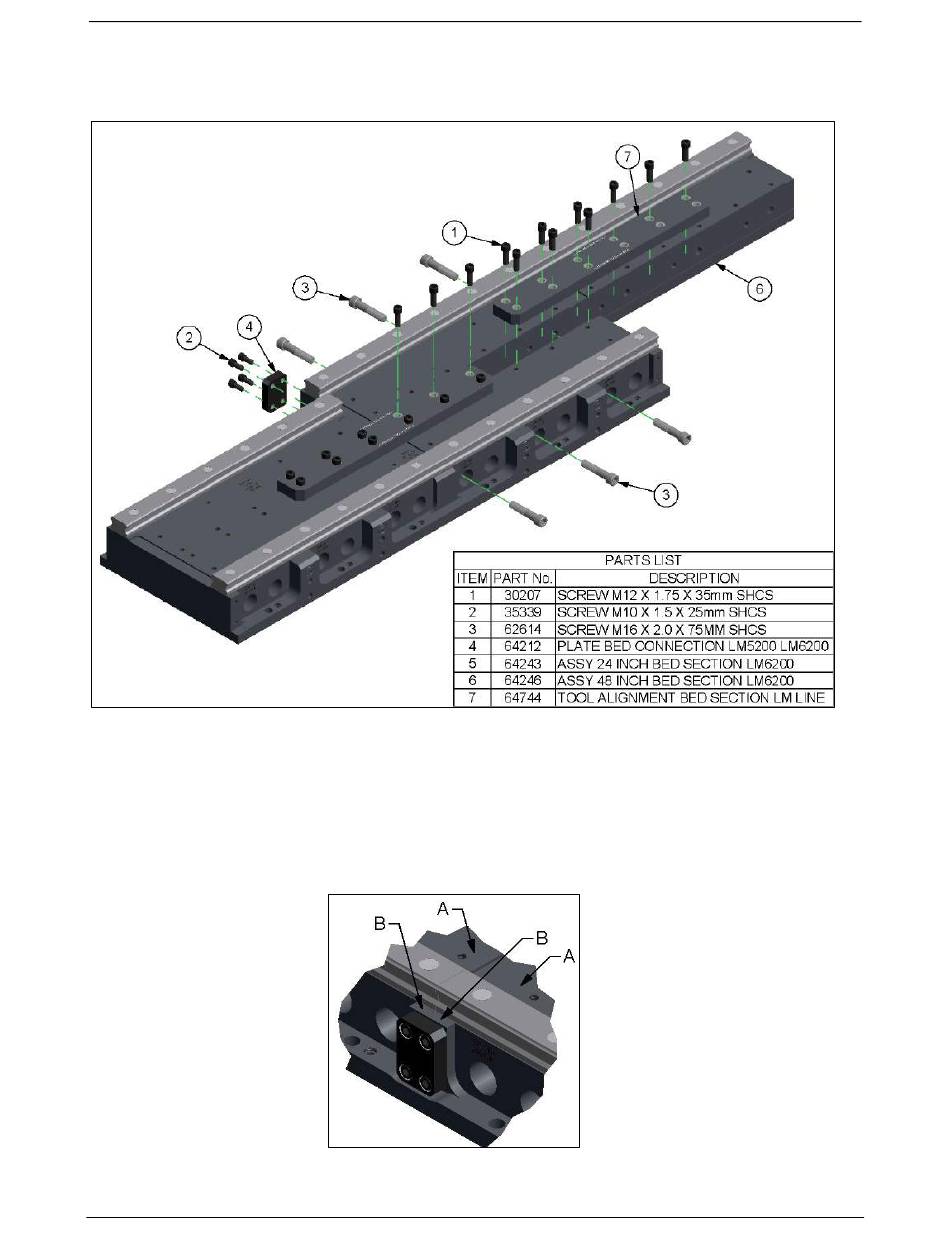

Figure 2
5. Place the next 48 inch section in position and push it against the other sections as
shown in Figure 2. Install 6 M16 fasteners (Item 3) and tighten them to 10 ft-lb. Then
loosen them completely and retighten until they are just touching.
6. Place the second bed alignment tool (Item 7) on the sections as shown in Figure 2.
Tighten the fasteners on the assembled sections first to 65 ft lb. Then tighten the
fasteners on the new section to 65 ft-lb.
