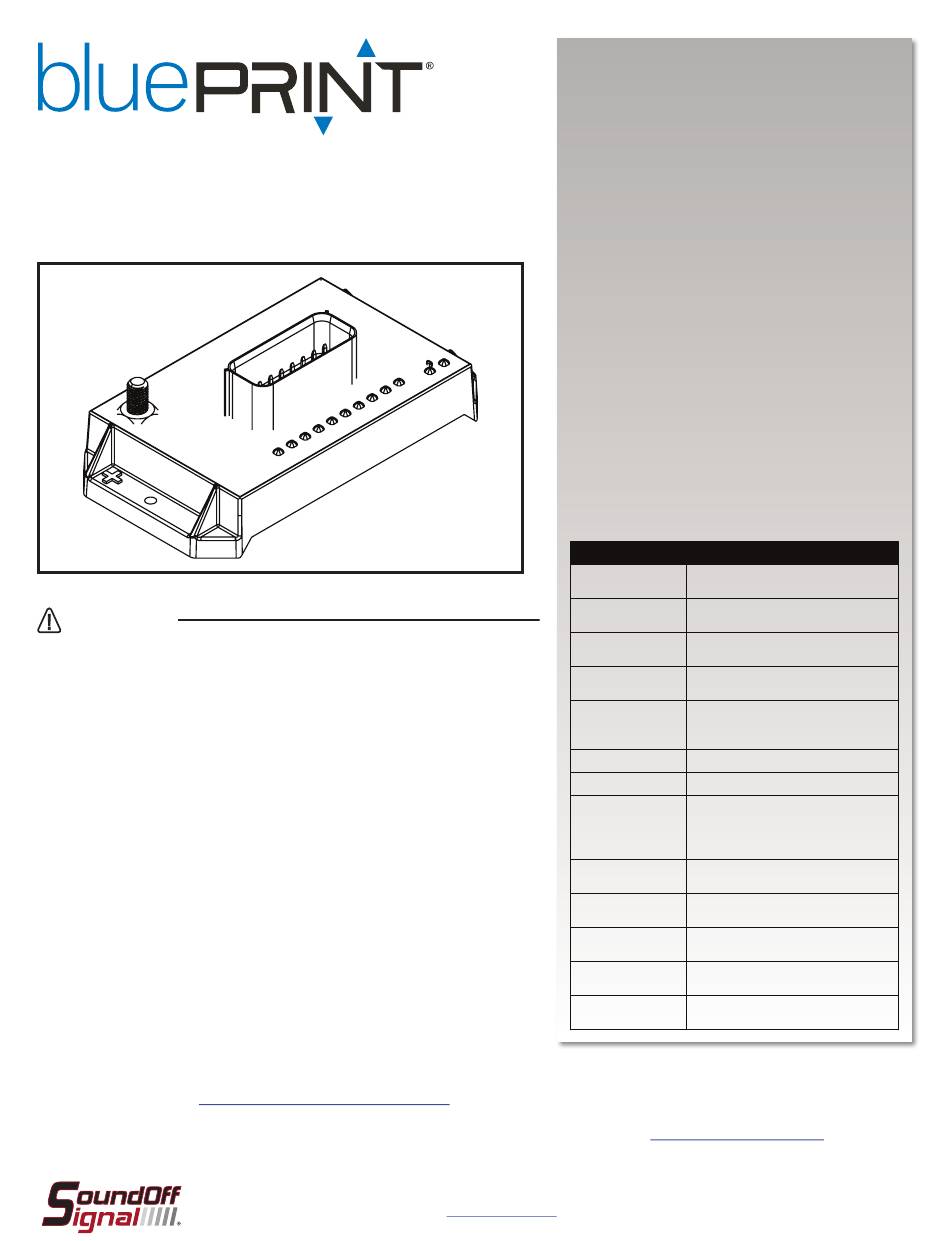

Soundoff Signal blueprint ENGND04102 Instruction Sheet

Remote Node with Magnetic ID
Part Number: ENGND04102
WARNING
• Reversing the power and ground connections will damage the unit and void the warranty.
• HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and fire. Follow crimp connector manufacturer instructions. Always verify that the
mating terminals for high current connectors use the same plating finish.
• DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner's Manual for deployment zones.
• DO NOT use system to disconnect headlights, brake lights or other safety equipment.
• Unit may become hot to touch during normal operation.
• Failure to properly install connectors, fuses or wiring may cause equipment or vehicle failure
or fire.
• Installation must only be performed by trained technician. Installer must determine vehicle
wiring configuration and proper integration of system.
• Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery
terminal or local chassis ground (-) must be sized to supply at least 125% of max. current and
properly fused at power source.
• Install protective grommets when routing wire through firewall or metal.
• It is the installer's responsibility to verify installation of special connectors or greases as listed
in this installation manual. Neglecting to do so may result in product failure and/or warranty
refusal.
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product,
visit our website at https://soundoffsignal.com/support-page/warranty/. All returned items must be properly packed to prevent damage in transit.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800.338.7337 (press #4 to skip the
automated message). Questions or comments that do not require immediate attention may be emailed to techgroup@soundoffsignal.com.
NOTICE:
For Technical Support - Please Call 1-800-338-7337
or visit www.soundoffsignal.com
I
NTRODUCTION
Thank you for choosing to equip your vehicle with
SoundOff Signal's powerful,
bluePRINT has been designed from the ground up as a
complete solution for even the most advanced
emergency vehicle needs. It is capable of managing
multiple connected devices, including lightbars, control
panels, and remote input and output modules.

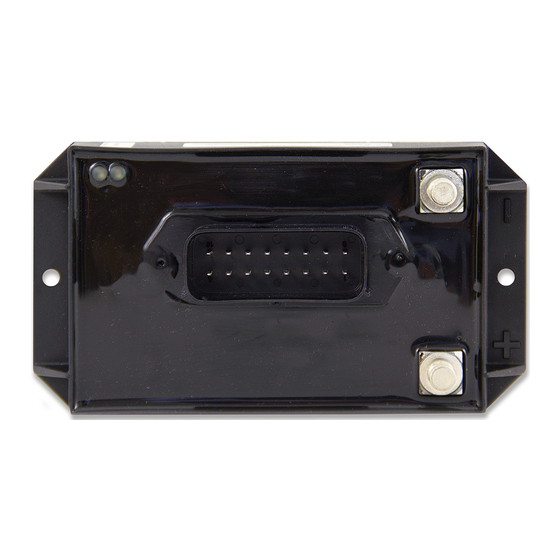

The ENGND04102 Remote Node provides expansion to
the already capable bluePRINT 500 Series Control
System or Central Controller, including:
• Four solid state outputs capable of up to 10 amps
• Six solid state outputs capable of up to 5 amps
• Four positive or negative activated inputs,
programmable through SoundOff Central.
The system's most advanced features are configurable
using our SoundOff Central application for Windows.
With SoundOff Central you can program input and output
relationships, read vehicle data signals, build virtual
inputs, and manage load-shed using voltage or timers.
Additionally, you can use the diagnostics interface to
validate your program and troubleshoot connections.
T S
ECHNICAL PECIFICATIONS
General Information
6.2" x 3.5" x 1.9"
Module Dimensions
156.9 x 89.5 x 47.7mm
Boxed Weight 471.5 grams
Operating -40C to 105C, see "Ambient Heat to
Temperature Maximum Current" section
500 Series Control System
Compatibility
Central Controller
Status
Diagnostic LEDs Address
Outputs 1 through 10
Address Setting Magnet north or south pole
Input Voltage 9 to 16Vdc (Negative Ground)
15 to 50A depending on operating
temperature, must be fused, see:
Input Current
"Ambient Heat to Maximum Current"
section
Ignition ON: 65mA typical
Standby Current
Ignition OFF: < 0.6mA
Over Voltage
Yes
Protection
4 @ 10A
Solid State Outputs
6 @ 5A
Diode Isolated
1 (Output 5)
Outputs
Inrush Capable
4 (Outputs 2, 4, 7, and 9)
Outputs
0000DM
bluePRINT Remote Node with Magnetic ID
bluePRINT system.
Page 1
Rev. B - 02/2023 ENGND04102
