5.3.2 Wall mounting

The control interface unit can also be mounted on the wall using four screws.
Simply pull out the four outer brackets on the back side of the unit.
The unit can be easily screwed onto the wall through the holes in the brackets.
The screw pair spacing is 90 mm (max. screw diameter M5).

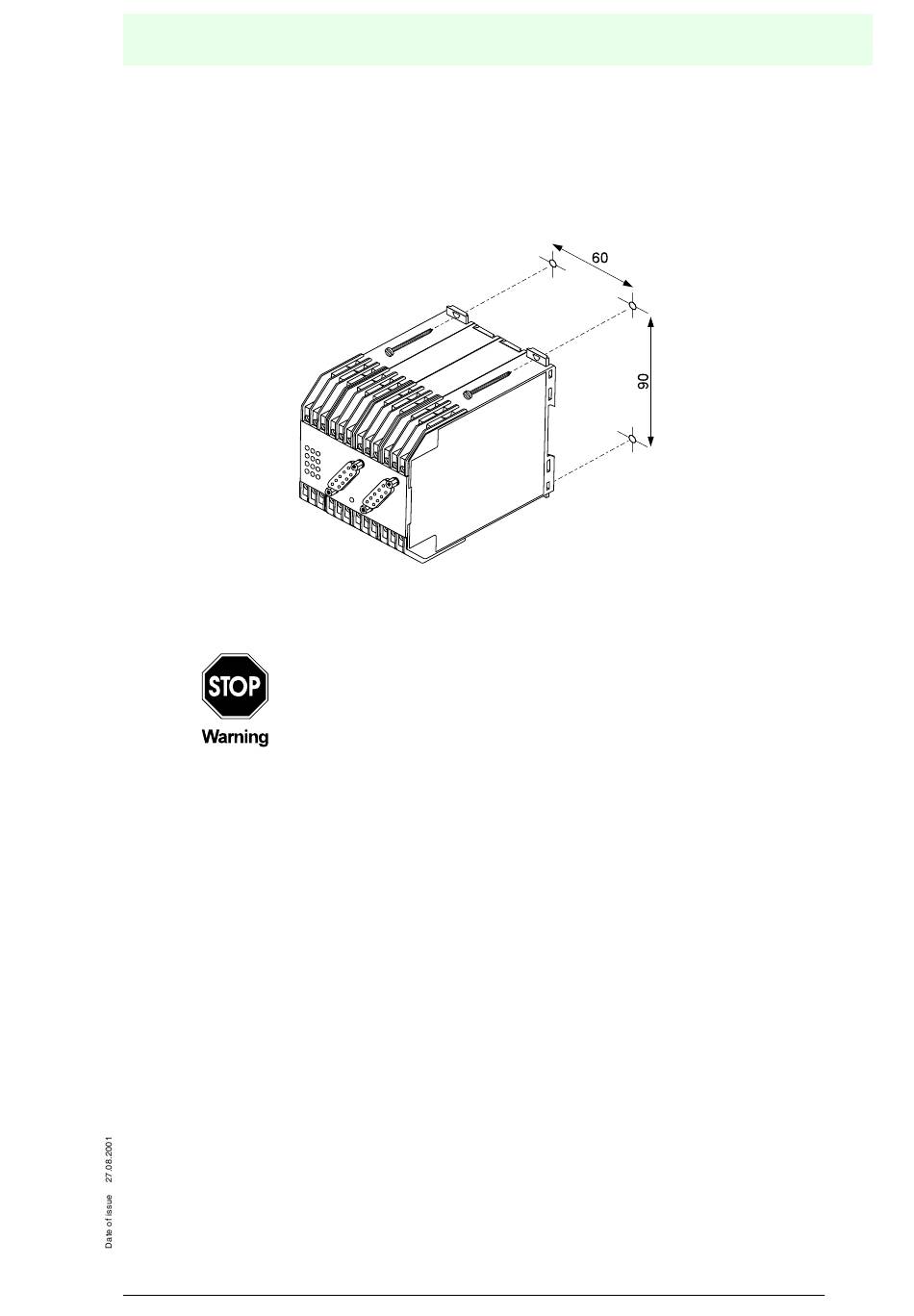

Figure 5.2 Wall mounting
5.4

Electrical connection

Only qualified personnel are permitted to carry out work under voltage
and make electrical connection to the mains.
Ensure that the correct voltage is applied according to the name plate of
the unit.
A mains isolating device must be installed close to the device and
labelled as such for the IRI-KHD2-4HB5/IRI-KHA6-4HB5.
Subject to reasonable modifications due to technical advances.
