Installation

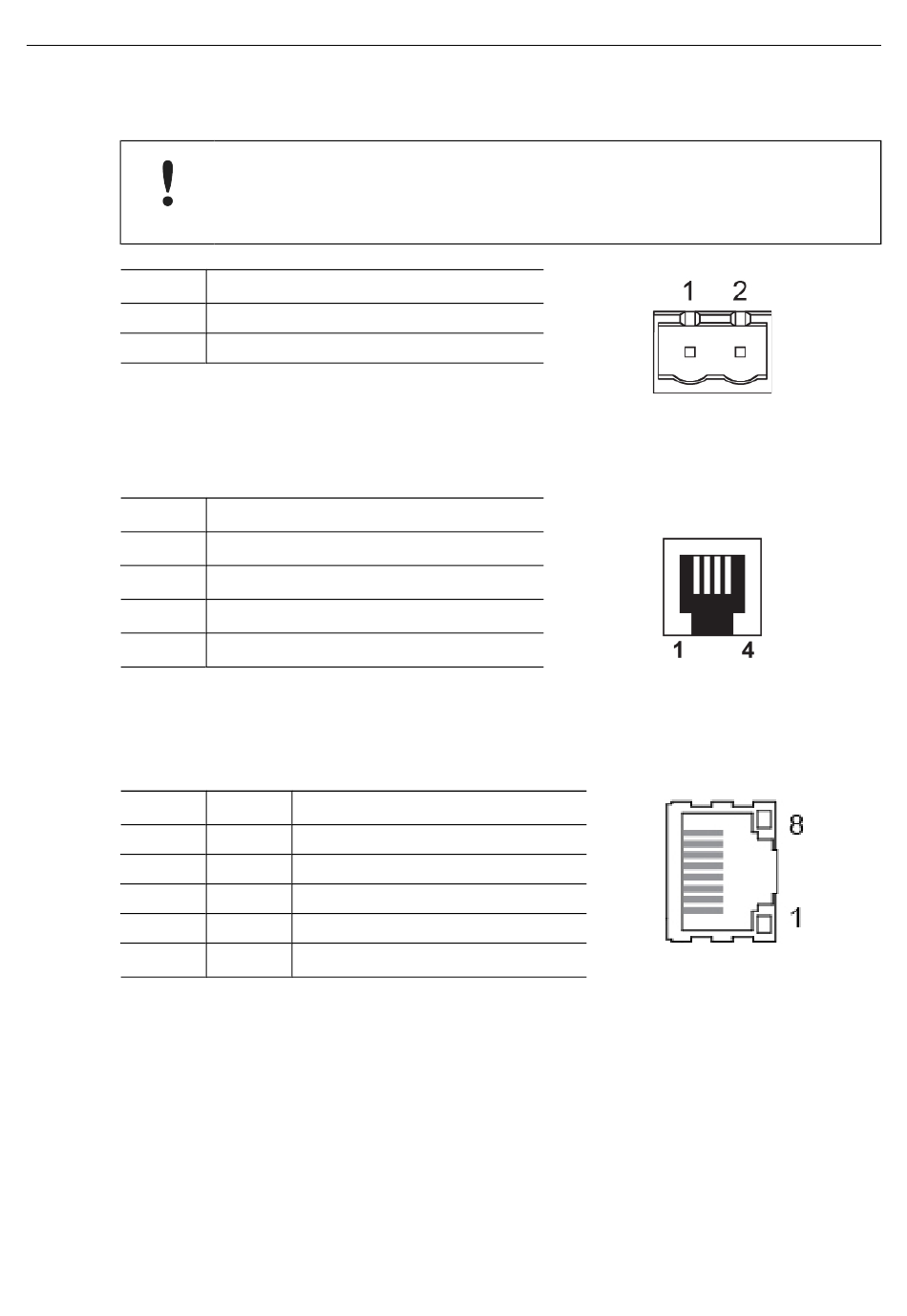

2.3.3 Power Connector (2 pin)
Pin
1
2
2.3.4 PC Connector (RJ11)
Pin
1
2
3
4
2.3.5 Ethernet Connector (RJ45)
Pin
1
2
3
6
4,5,7,8
Anybus
®
Communicator
Connecting power with reverse polarity or using the wrong type of power
supply may damage the equipment. Make sure that the power supply is
connected correctly and of the recommended type.
Signal
+24 VDC
Power Ground
Signal
GND ( signal ground)
GND (signal ground)
RS-232 Rx (input)
RS-232 Tx (output)
Signal
Description
TD+
Transmit data +
TD-
Transmit data -
RD+
Receive data +
RD-
Receive data -
-
(reserved)
Startup Guide
8 (12)
SP2444 1.0 en-US
