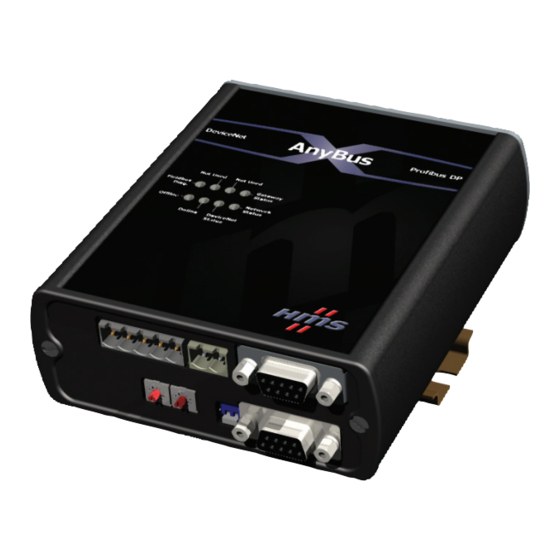

- Page 1 Anybus-X PROFIBUS to DeviceNet Gateway Installation Guide AB7609 Part no. SP0847 Rev. 1.10...
-
Page 2: Table Of Contents
Setting the PROFIBUS Network Termination....6 Configuration Port Connector ........... 7 Further Technical Information........... 8 Technical Specifications............ 8 Environmental Specifications ......... 8 EMC Directive Compliance ..........8 Electrical Specifications..........8 Mechanical Rating............8 Warranty ................9 Support ................10 © 2005 HMS Industrial Networks. -
Page 3: Installation Items Checklist
Terminal tightening torque must be between 5 – 7 lbs-in (0,5-0,8 Nm). • For use in Class 2 circuits only. • Suitable for Surrounding temperature of 65 C max. • Use 60/75 C copper wire only. © 2005 HMS Industrial Networks. -
Page 4: Connectors
AB7609 Installation Guide 3 Connectors DeviceNet Power Aux RS-232 PROFIBUS PROFIBUS PROFIBUS Address Termination Connecting Power The Anybus-X requires 24 volts DC power on the 2 position terminal block con- nector. 24VDC Common 24 VDC + © 2005 HMS Industrial Networks. -
Page 5: Connecting To Devicenet
A 120 ohm termination resistor (not provided) between CAN High and CAN Low may be required for proper network termination. Setting the MAC ID and Baud Rate Factory default DeviceNet settings are: MAC ID Baud Rate 125K © 2005 HMS Industrial Networks. - Page 6 A DeviceNet node commissioning utility, such as RSNetworx or NetTool-DN, may be used to change the MAC ID and baud rate settings. Refer to the user doc- umentation for the tool being used, or the Anybus-X user manual for more details. © 2005 HMS Industrial Networks.
-
Page 7: Connecting To Profibus
Setting the PROFIBUS Network Termination If network termination is required at the Anybus-X, set the termination DIP switch to the ON position. Note: If an external termination connector is used, the termination switch must be in the OFF position. © 2005 HMS Industrial Networks. -
Page 8: Configuration Port Connector
Note: The Anybus-X does not make use of the modem control signals specified for a DTE connector. Connecting the module through devices, such as isolation modules, which assume control of these lines may cause the BWConfig commu- nications to be unreliable. © 2005 HMS Industrial Networks. -
Page 9: Further Technical Information
Complete technical information on installing and configuring the Anybus-X can be found in the Anybus-X ProfiBus to DeviceNet Gateway User Manual. The User Manual can be downloaded from the HMS Industrial Networks AB web site at: http://www.anybus.com and go to the support section or requested directly using the contact information supplied below. -
Page 10: Warranty
AB7609 Installation Guide 9 Warranty HMS Industrial Networks AB warrants all new products to be free of defects in material and workmanship when applied in the manner for which they were intended and accord- ing to HMS Industrial Networks AB’ published information on proper installation. The Warranty period is one year from the date of shipment. -
Page 11: Support
AB7609 Installation Guide 10 Support For product support, visit the HMS Industrial Networks AB web site at: http://www.anybus.com and go to the support section or contact: Support HMS Sweden (Head Office) E-mail: support@hms-networks.com Phone: +46 (0) 35 - 17 29 20...
