Codec Tieline ViA Quick Start User Manual page 25

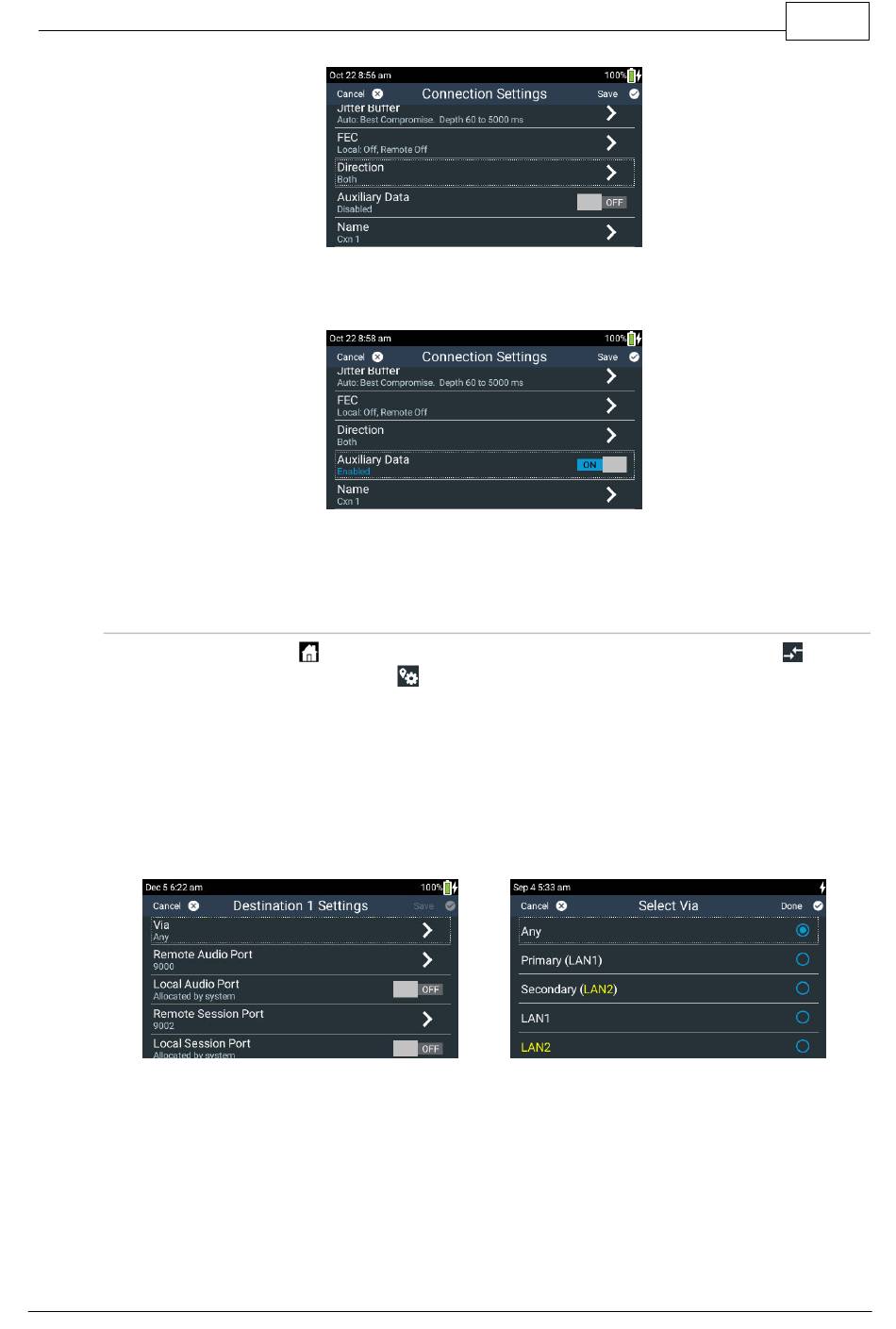

10. Tap to toggle the On/Off button for Auxiliary Data to activate CONTROL PORT I/O
operation and RS232 data in the codec.
11. Tap Name to rename the connection. When all settings have been configured tap Save in
the top right-hand corner of the TOUCH SCREEN.
Destination Settings
1. Press the HOME
2. Tap the Destination Settings
3. Tap Via to select a specific dialing interface in the Select Via screen, or use the default
Any setting. Tap Save in the top right-hand corner of the screen to dial using the default
Any setting. This setting uses the first available interface based on the following default
priorities.
· Primary = LAN1.
· Secondary = LAN2.
· Tertiary = Wi-Fi.
You can also select a specific interface, e.g. Primary, Secondary, LAN1 or LAN2, as displayed in
the preceding image. A LAN interface displayed in yellow text is enabled, but a network cable is not
attached. Interfaces are not displayed if they are unavailable, e.g. if Wi-Fi is turned off or there is no
cellular modem attached to USB PORT 1 or USB PORT 2. To reconfigure the default Primary,
Secondary and Tertiary settings see Configuring Via Interfaces.
4. If required:
© Tieline Research Pty. Ltd. 2020
button to return to the Home screen, then tap Connections
symbol.
ViA User Manual v3 25
.
