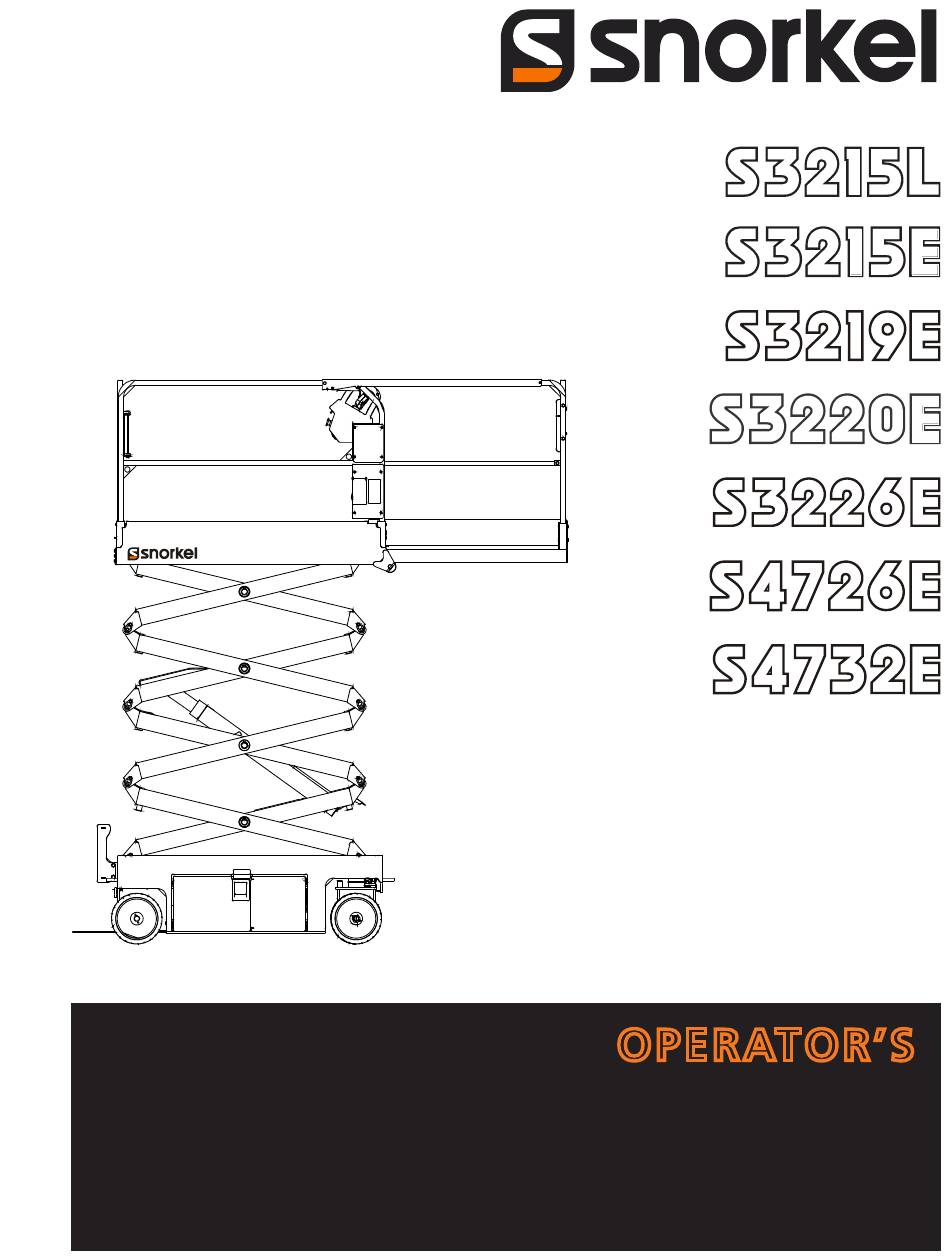

- Page 1 OPERATOR’S MANUAL Part Number 1500834 June 2018 Serial number 000017, 000019 and after Replaces 1500834 April 2018...
-
Page 2: Proposition 65 Warning
The aerial platform is not electrically insulated. Death or serious injury will result from contact with, or inadequate clearance from, an energized conductor. Do not go closer than the minimum safe approach distance as defined by the Minimum Safe Approach Distance section in Chapter 3–Safety. Regard all conductors as energized. -
Page 3: Table Of Contents
Chapter 2 – Specifications Interlock Switch .............24 Steer Switch ............24 Component Identification ..........3 Drive Range Switch ..........25 General Specifications – S3215L .......4 Horn Button ............25 General Specifications – S3215E .......5 Battery Condition Indicator ........25 General Specifications – S3219E .......6 Loading Controls ............25 General Specifications –... - Page 4 Lifting With a Forklift ..........47 Winching ...............47 Driving ..............49 Hoisting ..............50 Securing for Transport ...........51 Chapter 11 – Emergency Operation Emergency Lowering ..........53 Towing ..............53 Chapter 12 – Troubleshooting Troubleshooting Chart ..........57 Appendix A – Glossary Limited Warranty S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 5: Chapter 1 - Introduction
Aerial Platform Features Additional copies of this manual may be ordered from Snorkel. Supply the model and manual part number from The aerial platform is a self-propelled scissors lift that has the front cover to assure that the correct manual will be been designed to raise personnel, their tools, and material supplied. -
Page 6: Maintenance
Owners, Users, Operators, Lessors and Lessees of scope of the machine specifications. ANSI/SIA A92.6-2006 Self-Propelled Elevating Work Platforms” is available from Snorkel dealers or from the The operator bears ultimate responsibility for following factory upon request. all manufacturer’s instructions and warnings, regulations... -
Page 7: Chapter 2 - Specifications
Chapter 2 – Specifications Component Identification Platform Extension Platform All Models Except S3215L Toeboards Emergency Lowering Lever S3215L/S3215E/S3219E Entry Serial Step Number Drive and Steer Wheels Groundstrap Control Valve Tray Battery Tray Tie-Down/Lifting Lugs Freewheeling Valve/Brake Release Valve Hand Pump/Diagnostic Display... -
Page 8: General Specifications - S3215L
Chapter 2 – Specifications General Specifications – S3215L Aerial Platform Drive System Working height 21′ (6.6 m) Standard Two-wheel drive Maximum platform height 15′ (4.6 m) Gradeability Turning radius Maximum drive height 15′ (4.6 m) Inside 4″ (10.16 cm) Outside 64.25″... -
Page 9: General Specifications - S3215E
Platform lower than 6′ (1.8 m) Group Classification 0 to 2 mph (0 to 3.2 km/h) Heavy Duty – intended life 100,000 load cycles Low Drive Platform higher than 6′ (1.8 m) 0 to 0.4 mph (0 to 0.6 km/h) S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 10: General Specifications - S3219E
Platform lower than 6′ (1.8 m) Heavy Duty – intended life 100,000 load cycles 0 to 2 mph (0 to 3.2 km/h) Low Drive Platform higher than 6′ (1.8 m) 0 to 0.4 mph (0 to 0.6 km/h) S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 11: General Specifications - S3220E
Heavy Duty – intended life 100,000 load cycles Platform lower than 6′ (1.8 m) 0 to 2 mph (0 to 3.2 km/h) Low Drive Platform higher than 6′ (1.8 m) 0 to 0.4 mph (0 to 0.6 km/h) S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 12: General Specifications - S3226E
Heavy Duty – intended life 100,000 load cycles Platform lower than 6′ (1.8 m) 0 to 2 mph (0 to 3.2 km/h) Low Drive Platform higher than 6′ (1.8 m) 0 to 0.4 mph (0 to 0.6 km/h) S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 13: General Specifications - S4726E
Heavy Duty – intended life 100,000 load cycles Platform lower than 6′ (1.8 m) 0 to 2 mph (0 to 3.2 km/h) Low Drive Platform higher than 6′ (1.8 m) 0 to 0.4 mph (0 to 0.6 km/h) S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 14: General Specifications - S4732E
Heavy Duty – intended life 100,000 load cycles Platform lower than 6′ (1.8 m) 0 to 2 mph (0 to 3.2 km/h) Low Drive Platform higher than 6′ (1.8 m) 0 to 0.4 mph (0 to 0.6 km/h) S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 15: Chapter 3 - Safety
Over 200kV to 350Kv 6.10 Over 350kV to 500kV 7.62 Over 500kV to 750kV 10.67 Over 750kV to 1000kV 13.72 Table 1 – Minimum Safe Approach Distance Denotes prohibited zone Figure 3 – Minimum Safe Approach Distance S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 16: Prestart Inspection
Make sure there is sufficient by the aerial platform in all operating conditions. Refer clearance around the machine before moving the to the General Specifications chart for the maximum chassis or platform. Allow sufficient room and time S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 17: Electrical System
Do not operate the aerial platform from trucks, trailers, rail- water and get medical attention. way cars, floating vessels, scaffolds, or similar equipment unless the application is approved in writing by Snorkel. If acid contacts your skin, wash off immediately with clear water. - Page 18 Chapter 3 – Safety S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 19: Chapter 4 - Safety Devices
At the upper controls, the emergency stop is a two-posi- tion red push button (refer to Figure 4.2). Push the emergency stop button inward when the Figure 4.3 – Upper Control Panel Top upper controls are not in use to protect against un- intentional operation. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 20: Drive Motion Alarm
This protection system limits the tilt angle if a wheel is The lever for the S3215L/S3215E/S3219E is mounted at driven into a drop-off or hole. This greatly reduces the the front of the aerial platform (refer to Figure 4.5). -
Page 21: Safety Prop
Tilt Alarm An alarm will sound if the aerial platform chassis is out of level when the platform is raised. Refer to the ma- chine general specifications for the specific level sensor settings. Figure 4.7 – Safety Prop S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 22: Horn
The flashing light warns personnel that the aerial platform is in the area. The light flashes at about one flash per second when the machine is set up for operation from the upper controls. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 23: Chapter 5 - Gauges And Displays
• 100% green LED solid On – indicates that the charge cycle is complete. Battery Condition Indicator Figure 5.3 – Top of Upper Controls S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 24: Diagnostic Center Display
When the battery disconnect and emergency stop but- ton at the lower controls are in the on position, the LCD display shows: • The accumulated aerial platform operating time • The available battery power to operate the machine. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 25: Chapter 6 - Batteries
16 hours without the batteries being fully recharged, shut off the charger and have the batteries checked. Fully recharge the batteries, immediately after use. One charging cycle per day is preferred. Fully charged batteries perform best. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... - Page 26 Chapter 6 – Batteries S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 27: Chapter 7 - Controls
Platform Raise/Lower Switch The platform raise/lower switch is used to raise or lower the platform. The switch is spring returned to the center off position. Hold the switch upward to raise the platform. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 28: Upper Controls
This Battery condition indicator switch controls the two front wheels to steer the aerial platform. To steer to the right, engage the interlock switch on the joystick and hold down the right side of the steer switch. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 29: Drive Range Switch
The steer switches (refer to Figure 7.4) are momentary contact. These switches control the two front wheels to Push the emergency stop button inward when the steer the aerial platform. pendant is not in use to protect against uninten- tional operation. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... - Page 30 On the fixed side drive – press the interlock button and hold the switch in the appropriate direction to steer either left or right. Note The steering wheels are not self-centering. Set the steer- ing wheels straight ahead after completing a turn. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 31: Chapter 8 - Prestart Inspection
Electrical System charging. Electrical power is supplied from four, 6 volt batteries. The batteries supply 24 volt DC electrical power to op- erate the aerial platform drive and control system. There S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 32: Battery Terminals
Properly position the safety prop before reaching through the scissors structure. Figure 8.5 – Safety Prop in Stowed Position S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 33: Cables And Wiring Harness
On some manifolds the valve is on the side and on others it is on the back (refer to Figure 8.7). Check the free-wheeling valve to make sure it is in its Figure 8.6 – Hydraulic Tray normal operation position. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 34: Diagnostic Center Display
Pinch points may exist between moving components. from the machine. Death or serious injury will result from becoming trapped between components, buildings, structures, or other obstacles. Make sure all personnel stand clear of the aerial platform while performing the pre- start inspection. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 35: Emergency Stop
10. If the platform raise function is not disabled, or the alarm does not sound remove the aerial platform from service until the problem is corrected. Pothole Protector Skid Figure 8.11 – Pothole Protector Skid S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 36: Emergency Lowering System
2. Locate the emergency lowering control. ward on the emergency lowering lever at the front of the machine to lower the platform. The lever for the S3215L/S3215E/S3219E is mounted at the front of the aerial platform (refer to Figure 8.13). S3220E/S3226E/S4726E/S4732E – pull outward on the emergency lowering handle at the rear of the machine to lower the platform. -
Page 37: Fasteners
1. Inspect the extension handles and locks (refer to Figure 8.18) on each side of the platform to ensure Guardrail System they release to extend the platform. The guardrail system includes (refer to Figure 8.17): A top rail A mid rail S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 38: Operating Controls
Do not operate the aerial platform if it is damaged or malfunctioning. Only operate the upper controls when the upper control panel is securely fastened inside the platform and facing the front of the machine. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 39: Emergency Stop
The horn is operational when the machine is set up for outward and turn the control select/ground operation operation from the upper control panel (refer to Figure switch to either the lower or upper control position. 8.19). S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 40: Placards And Decals
Make certain they are in place, in good condi- tion, and are legible. Placard and decal kits are available from Snorkel. 2. Clean the placards and decals with soap and water, The safety related placards and decals are illustrated on and a soft cloth if the words or pictures cannot be the following pages. - Page 41 OTHER ACTIONS CAN ALSO CAUSE OTHER ACTIONS CAN ALSO CAUSE THIS MACHINE TO TIP OVER THIS MACHINE TO TIP OVER 1502773 – S3215L DO NOT override safety devices. DO NOT ride platform while machine is on a truck, fork lift or other device.
- Page 42 1. Raise platform until the open height is wide enough to position the safety prop. with platform raised. 2. Place the safety prop in the storage position. 0361259 0361259 Left Side 0074311 (Rod End of Lift Cylinder) 0074311 300700 300700 Front S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 43: Prestart Inspection Checklist
Shuts off upper controls Lowering alarm Sounds when platform lowers Drive motion alarm Sounds when aerial platform drive function is operated Battery condition indicator Proper operation Horn Sounds when activated Placards and Decals In place and readable S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... - Page 44 Chapter 8 – Prestart Inspection S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 45: Chapter 9 - Operation
2. Place the battery disconnect switch in the on posi- The upper controls will not operate while the control tion. selector is in the lower position. 3. Close and latch the swing-out trays. 3. Enter the platform and secure the doors. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 46: Platform
There is only one lowering speed. Caution The extension deck is free to move when the extension 1. Place the drive/lift selector switch (refer to Figure 9.2) handle locks are disengaged. Personal injury may in the lift position. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 47: Fold Down Guardrails
Do not drive an elevated aerial platform on that require low speed and high torque operation, soft, uneven, or sloping surfaces. Do not drive on where high range is not sufficient to climb the grade. grades that exceed 25 percent. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 48: Drive Speeds
When closing the trays, close the battery tray first. The Platform raise and drive functions are disabled and an latched tray holds both trays in the closed position. alarm sounds when those controls are activated if the chassis is tilted more than: S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 49: Electrical Power Outlet
(refer to Figure 9.6). Power-Input Connector Figure 9.6 – Rear of Chassis To use the outlet, plug a source of power into the power- input connector. Unplug the source of power before moving the aerial platform. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... - Page 50 Chapter 9 – Operation S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 51: Chapter 10 - Stowing And Transporting
DOT, and/or any other state or federal law are followed. The aerial platform is free to move when the brakes are released. Death or serious injury can result. Re-enable the brakes before operating the aerial platform. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... - Page 52 5. Turn the brake release valve counterclockwise to the fully open position. Turn the free-wheeling valve clockwise to the fully closed position. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 53: Driving
7. Verify that the drive system and brakes operate 7. Drive the aerial platform on or off the transport vehicle properly before operating the aerial platform. in a straight line through the grade transitions with minimal turning. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 54: Hoisting
The loading controls allow for driving the machine while can occur if the sling is attached anywhere else. standing on the ground, outside of the platform. Always look in the direction of movement when operating the loading controls. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... -
Page 55: Securing For Transport
7. Use chains or straps to securely fasten the aerial plat- form to the transport vehicle using the front and rear tie-down lugs as attachment points. Proper tie-down and hauling is the responsibility of the carrier. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... - Page 56 Chapter 10 – Stowing and Transporting S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 57: Chapter 11 - Emergency Operation
4. Make sure there is nothing in the way to obstruct the platform when it lowers. The lever for the S3215L/S3215E/S3219E is mounted at the front of the aerial platform (refer to Figure 11.1). 5. Stand clear of the scissors structure. - Page 58 8. Verify that the drive system and brakes operate valve can be heard when it resets, as the machine properly before operating the aerial platform. is driven. 10. Verify that the drive system and brakes operate properly before operating the aerial platform. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
- Page 59 7. Drive the aerial platform forward or reverse and then stop to reset the parking brakes. 8. Verify that the drive system and brakes operate properly before operating the aerial platform. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
- Page 60 Chapter 11 – Emergency Operation S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 61: Chapter 12 - Troubleshooting
Free-wheeling valve is open. Fully close the free-wheeling valve. Load capacity exceeded. Remove load from platform. Refer to platform capacity placard for maximum capacity. Low hydraulic system pressure. Stow the machine and do not operate until repairs are made. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834... - Page 62 Let fluid cool before resuming operation. Hydraulic system component failure. Stow the machine and do not operate until repairs are made. Severe hydraulic leak. Failure of hose, tube, fitting, seal, etc. Stow the machine and do not operate until repairs are made. S3215L/S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500834...
-
Page 63: Appendix A - Glossary
Although federal regulations, OSHA, ANSI, pothole protection interlock – a safety feature that sounds an alarm and and Snorkel do not require the use of additional fall protection beyond the automatically stops the platform raise function if the pothole protection skids platform guardrails on scissor lift aerial platforms, local, state, or employer are prevented from lowering properly. - Page 65 All parts returning should be still in a factory state, free of any alteration to the original design. If the parts are subject to repair it will need to be pre authorized by the Snorkel Product Sup- port Group and or Warranty Department prior to the repair being completed.
- Page 66 10. Reimbursement policy, labor will be paid at 75% of posted hourly shop rate. Travel time will be paid at $50 per hour up to a maximum of 3 hours. Snorkel will pay 1 hour of troubleshooting time per warranty claim, unless expressly agreed otherwise in writing and in advance by Snorkel’s Warranty Department.
- Page 67 Snorkel will not cover leaks from fittings, hoses and any other connection points after the unit has been in service for 90 days or 150 hours of operation which ever comes first.
-
Page 68: Limited Warranty
Distributor/SSC/Dealer. Warranty support should be from the Distributor/SSC/Dealer from whom the Snorkel product was purchased. Where Snorkel equipment is supplied directly from the factory the end customer, or if unable to contact the Distributor/SSC/Dealer, may contact the Snorkel Warranty Department for further assistance. - Page 70 Local Distributor / Lokaler Vertiebshändler / Distributeur local El Distribuidor local / ll Distributore locale EUROPE, MIDDLE EAST AFRICA & ASIA PHONE: +44 (0) 845 1550 058 FAX: +44 (0) 845 1557 756 NORTH & SOUTH AMERICA PHONE: +1 785 989 3000 TOLL FREE: +1 800 255 0317 FAX: +1 785 989 3070 AUSTRALIA...
