Snorkel S39770RT Repair Parts Manual
  1. Manuals
  2. Brands
  3. Snorkel Manuals
  4. Lifting Systems
  5. S39770RT
  6. Repair parts manual

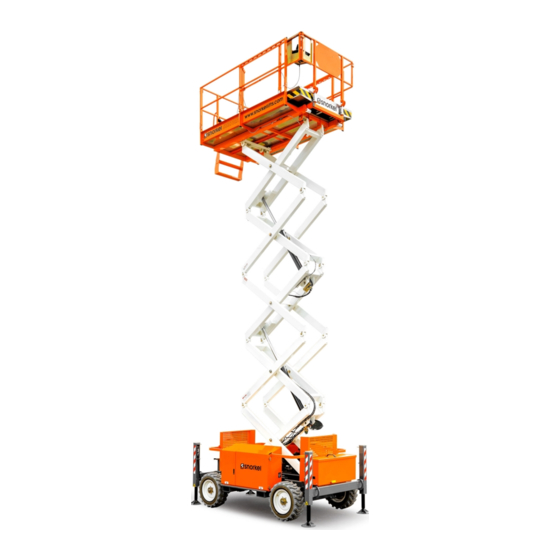

Snorkel S39770RT Repair Parts Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

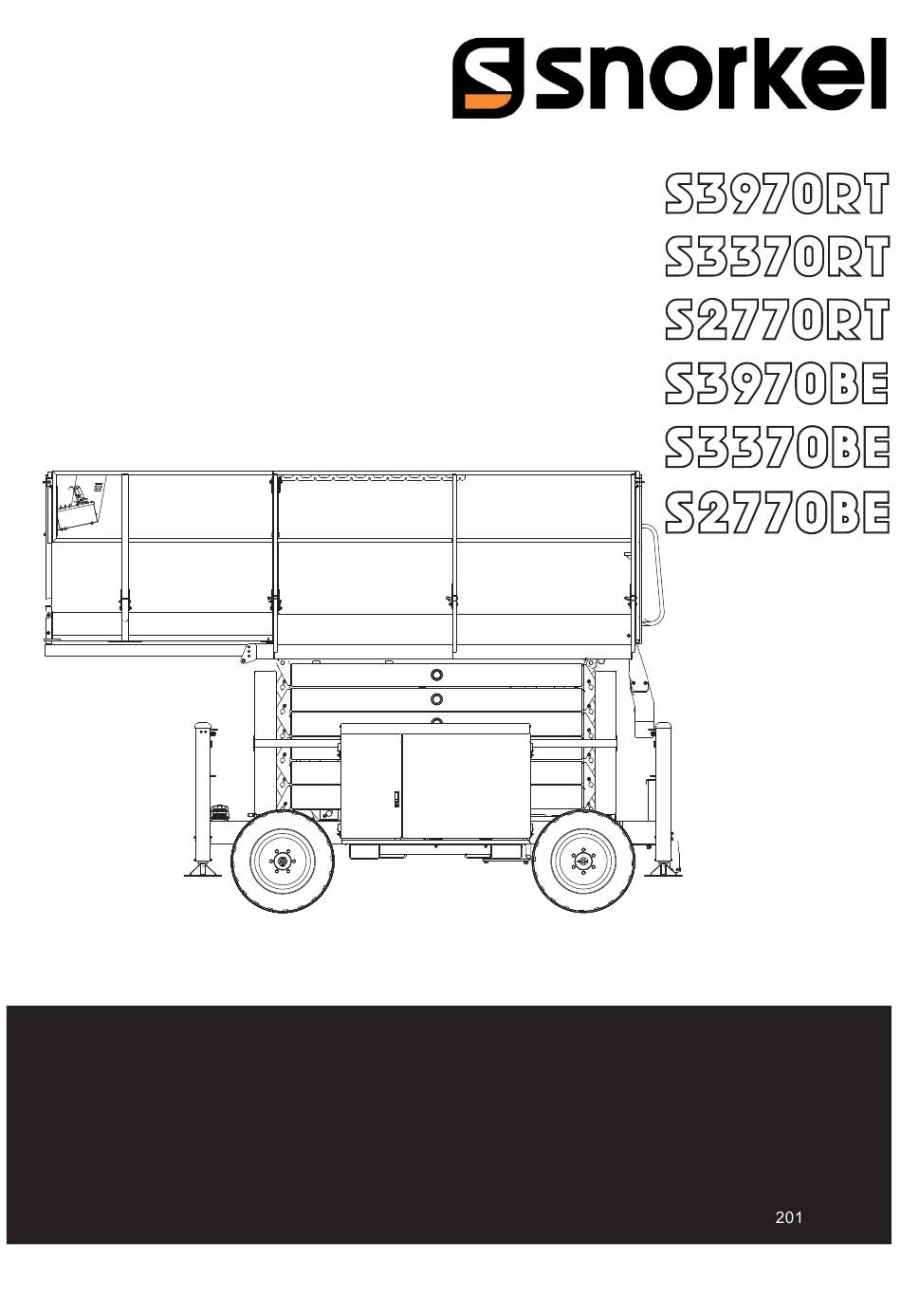

Se rial Num bers:
S2770RT-07-161200500,
S3370RT-07-180300500,
S3970RT-07-180300500 and after
Die sel
Bi-En ergy 24V DC
REPAIR PARTS
MANUAL
Part Num ber 15124-2
March
Version 7
8 (Rev A)
