Summary of Contents for Snorkel S3215E

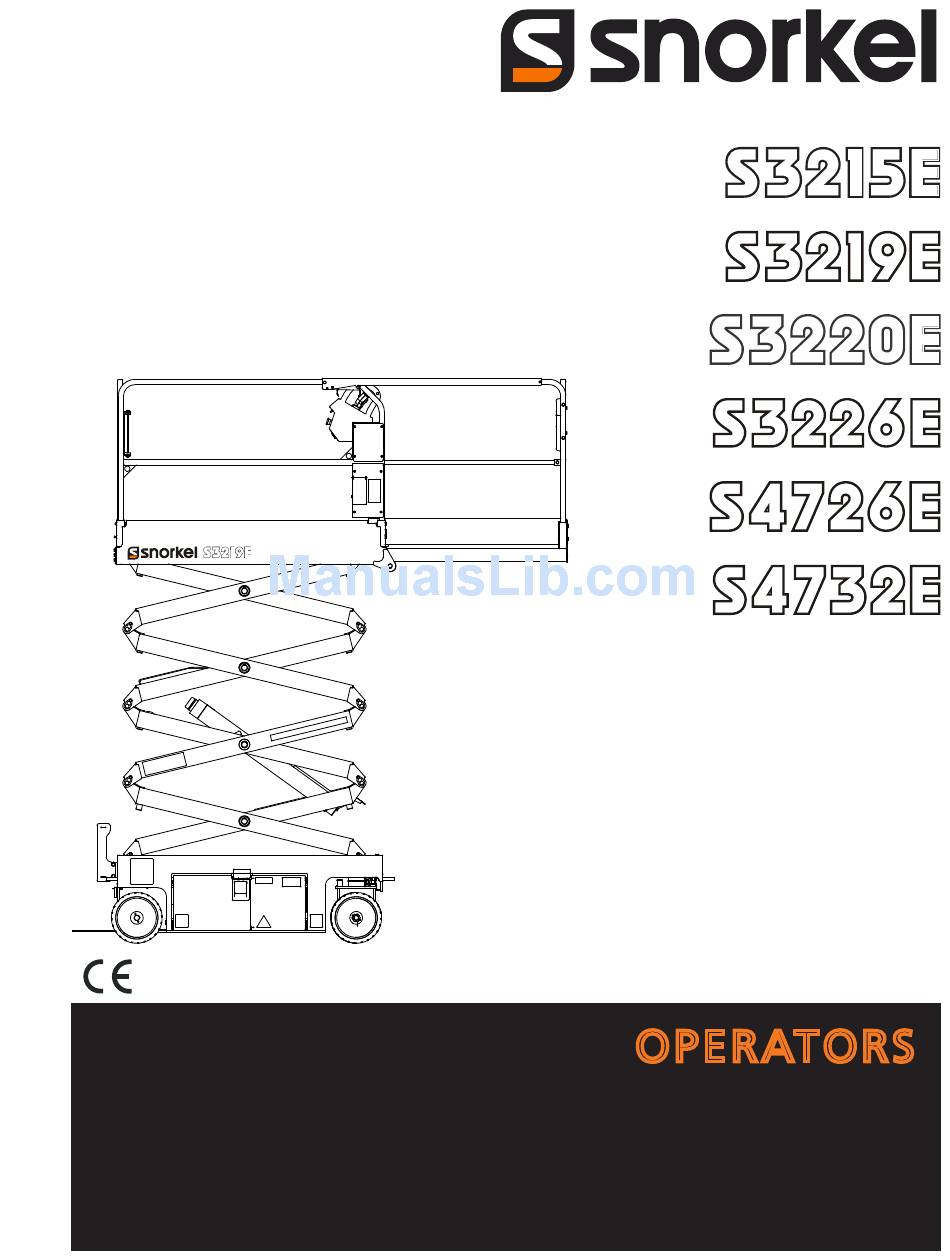

- Page 1 OPERATORS MANUAL Part Number 1500842 September 2017 Serial number 000000 and after Replaces 1500842 June 2017...
-
Page 3: Table Of Contents
Interlock Switch .............10 Daily Preventative Maintenance Checklist ....21 Steer Switch ............10 Preventative Maintenance Report ......21 Drive Range Switch ..........10 General Specifications – S3215E ......22 Horn Button ............10 General Specifications – S3219E ......23 Battery Condition Indicator ........10 General Specifications – S3220E ......24 Pre-Operation Safety Inspection ......10... -
Page 4: Ec Declaration Of Conformity
S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 5: Safety Rules
NEVER charge batteries near sparks or open flame. Charging batteries emit explosive hydrogen gas. Modifications to the aerial work platform are prohibited or permissible only at the approval by Snorkel. AFTER USE, secure the work platform from unauthorized use by turning the keyswitch off and removing key. -
Page 6: Fall Restraint Lanyard Anchor Points
Fall Restraint Lanyard Anchor Points All fall restraint lanyard anchor points on Snorkel aerial work platforms have been tested with a force of 61.3 KN (3,650 lbs) per person. See below examples of anchor points used on Snorkel machines with their corresponding per person rating. -
Page 7: Introduction
Introduction Introduction When contacting Snorkel for service or parts information, be sure to include the MODEL and SERIAL NUMBERS This manual covers the S3215E, S3219E, S3220E, from the equipment nameplate. Should the nameplate S3226E, S4726E, and S4732E Aerial Work Platforms. -
Page 8: Special Limitations
If the platform is elevated just past 1.8 m (6′) and material is added to the platform overloading it, a control module will stop the lift, drive and lower functions. The alarm will S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 9: Beaufort Scale
Tree branches move. Power lines whistle. It is difficult to open an 10,8~13,9 38,9~50,0 35.5~45.5 24.5~31 umbrella. 13,9~17,2 50,0~61,9 45.5~56.5 31.~38.5 Whole trees sway. It is difficult to walk against the wind. Figure 1 – Beaufort Scale S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 10: Controls And Indicators
• Controls to drive the aerial platform are located on the upper control panel only. The diagnostic center LCD display is located in the hy- Figure 3 – Upper Controls Pendant draulic tray next to the manifold valve (refer to Figure 4). S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 11: Battery Disconnect Switch
• Push the button inward to disconnect power to all • Joystick to control platform lift, drive, and steer control circuits. • Horn button • Battery condition indicator • Twist the button to restore power. • Platform overload protection light S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 12: Emergency Stop Button
• To steer to the right, engage the interlock switch on wire connections. the joystick and hold down the right side of the steer switch. S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 13: System Function Inspection
4. Visually inspect the elevating assembly, lift cylinder, and hoses for cracked welds and structural damage, loose hardware, hydraulic leaks, loose wire connec- tions, and erratic operation. Check for missing or loose parts. 5. Hold the ground operation switch downward. Test S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 14: Operation
2. Close and latch the control valve, hydraulic, and bat- Danger tery trays. The potential for an accident increases when the fold 3. Place the battery disconnect switch in the on position. down rails are lowered. Death or serious injury can S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 15: Raising And Lowering
If the platform is elevated just past 1.8 m (6′) and material is added to the platform overloading it, a control module will stop the lift, drive and lower functions. The alarm will S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 16: Driving And Steering
(refer to “Specifications” on pages 22-27), platform The drive range switch has two positions to select drive raise and drive functions are disabled and an intermittent wheel operation: alarm sounds when those controls are activated. • High (Rabbit) – for normal driving conditions. S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 17: Fold Down Guardrails
4. Remove the pin from the hinged top rail on the main deck. Fold the hinged rail in as far as it will go. S3215E/S3219E – push downward on the emer- gency lowering lever at the front of the machine 5. -
Page 18: Transporting The Machine
3. If lifting from the rear of the machine, insert the forklift forks into the pockets. Caution Lifting the aerial platform with the forklift forks posi- tioned improperly can produce enough force to dam- S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... - Page 19 The brake release valve manifold (refer to Figure 7). and brake release pump are located on the top of the hydraulic manifold. The free-wheeling valve is on the side of the valve (refer to Figure 6). S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842...
-
Page 20: Driving
• The empty vehicle weight is stamped on the serial num- ber placard and is listed in the machine specifications. Drive the aerial platform onto the transport vehicle if a winch is not available and the ramp incline is within the grade capability of the aerial platform. S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 21: Storage
• Check the battery fluid level daily, especially if the machine is being used in a warm, dry climate. • If electrolyte level is lower than 6 mm (¼″) above the plates add distilled water only. DO NOT use tap water S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 22: Battery Charging
Replace the bat- tery caps. Used Material Disposal For proper used material disposal, refer to all applicable national and/or employer standards before disposal of any environmentally sensitive material including, but not limited to, hydraulic fluid, batteries, and battery fluid. S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 23: Daily Preventative Maintenance Checklist
Sounds when aerial platform drive function is operated Battery condition indicator Proper operation Horn Sounds when activated Placards and Decals In place and readable Maintenance Table Key: Y = Yes/Acceptable, N = No/Not Acceptable, R = Repaired/Acceptable S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 24: General Specifications - S3215E
Specifications General Specifications – S3215E Drive System Aerial Platform Standard Two-wheel drive Working height 6.6 m (21′) Gradeability Maximum platform height 4.6 m (15′) Maximum drive height 4.6 m (15′) Turning radius Inside 10.16 cm (4″) Drive/Lift Level Sensor Interlock Outside 1.63 m (64.25″) -
Page 25: General Specifications - S3219E
Platform lower than 1.8 m (6′) 0 to 3.2 km/h (0 to 2 mph) Group Classification Low Drive Heavy Duty – intended life 100,000 load cycles Platform higher than 1.8 m (6′) 0 to 0.6 km/h (0 to 0.4 mph) S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 26: General Specifications - S3220E
Platform lower than 1.8 m (6′) Heavy Duty – intended life 100,000 load cycles 0 to 3.2 km/h (0 to 2 mph) Low Drive Platform higher than 1.8 m (6′) 0 to 0.6 km/h (0 to 0.4 mph) S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 27: General Specifications - S3226E
Platform lower than 1.8 m (6′) 0 to 3.2 km/h (0 to 2 mph) Group Classification Low Drive Heavy Duty – intended life 100,000 load cycles Platform higher than 1.8 m (6′) 0 to 0.6 km/h (0 to 0.4 mph) S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 28: General Specifications - S4726E
Platform lower than 1.8 m (6′) Heavy Duty – intended life 100,000 load cycles 0 to 3.2 km/h (0 to 2 mph) Low Drive Platform higher than 1.8 m (6′) 0 to 0.6 km/h (0 to 0.4 mph) S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... -
Page 29: General Specifications - S4732E
Platform lower than 1.8 m (6′) Heavy Duty – intended life 100,000 load cycles 0 to 3.2 km/h (0 to 2 mph) Low Drive Platform higher than 1.8 m (6′) 0 to 0.6 km/h (0 to 0.4 mph) S3215E/S3219E/S3220E/S3226E/S4726E/S4732E – 1500842... - Page 30 Local Distributor / Lokaler Vertiebshändler / Distributeur local El Distribuidor local / ll Distributore locale EUROPE, MIDDLE EAST AFRICA & ASIA PHONE: +44 (0) 845 1550 058 FAX: +44 (0) 845 1557 756 NORTH & SOUTH AMERICA PHONE: +1 785 989 3000 TOLL FREE: +1 800 255 0317 FAX: +1 785 989 3070 AUSTRALIA...
