Summary of Contents for Snorkel S1930E

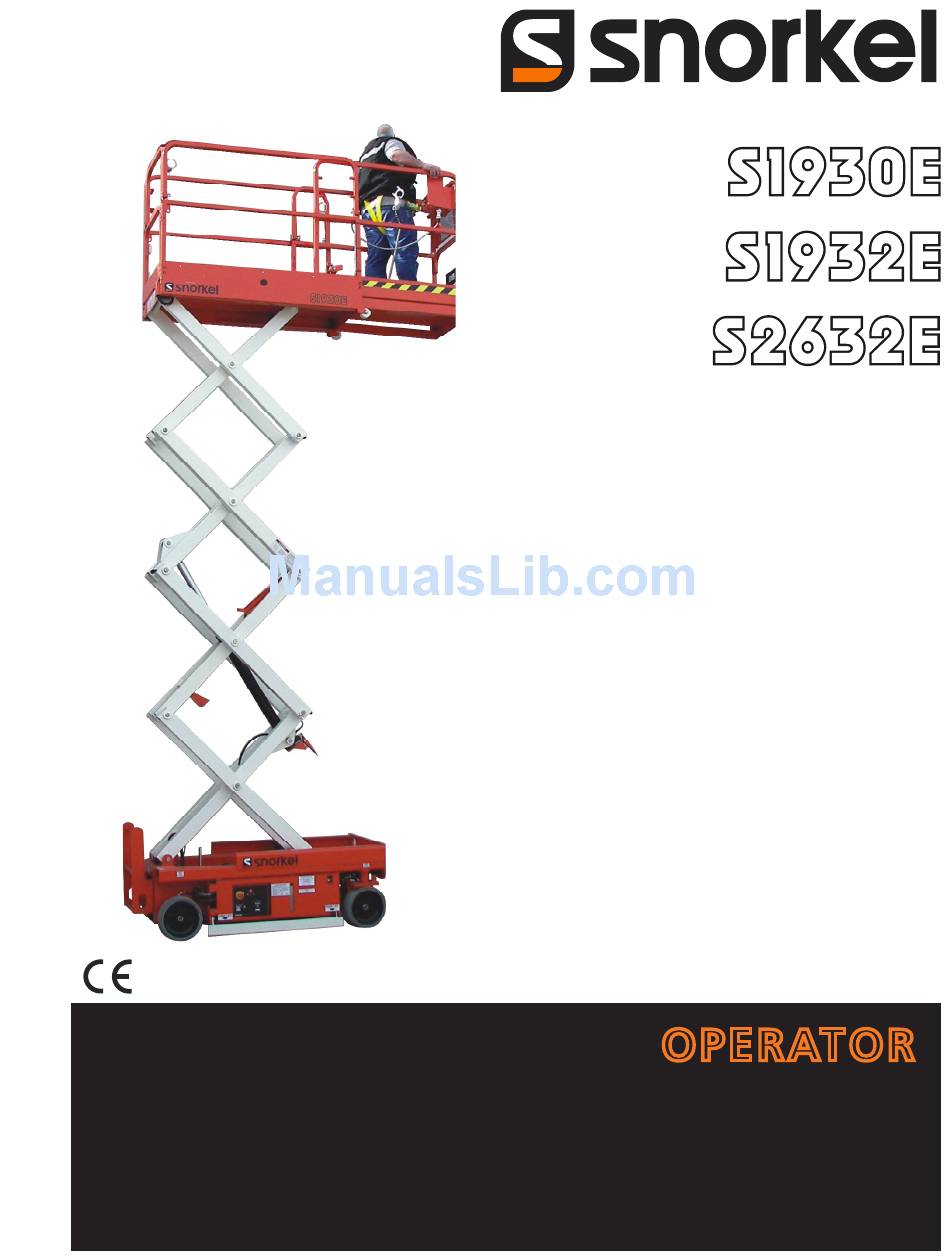

- Page 1 OPERATOR MANUAL Part Number 1360417 January 2012 Serial number 000000 and after...
-
Page 3: Table Of Contents
Inspection and Maintenance Schedule.....18 Safety Rules ...............3 Daily Preventative Maintenance Checklist ....19 Introduction ..............4 Preventative Maintenance Report ......19 Component Identification ..........4 Specifications – S1930E...........20 Aerial Platform ............20 Special Limitations............5 Platform ..............20 Platform Capacity ............5 Function Speed .............20 Manual Force ............5 Drive System ............20... -
Page 4: Ec Declaration Of Conformity
Notified Body Identification Number: 0545 E. C. Type Examination Certificate No: Authorized Representative in The Tanfield Group, PLC European Union: Vigo Centre, Birtley Road Washington, Tyne & Wear NE38 9DA, UK Note: Modification of the specified unit renders this declaration invalid. S1930E/S1932E/S2632E – 1360417... -
Page 5: Safety Rules
It is designed for repair and assembly jobs and assignments at overhead workplaces (ceilings, cranes, roof structures, buildings etc.). Uses or alterations to the aerial work platform must be approved by Snorkel. THIS AERIAL WORK PLATFORM IS NOT INSULATED! Refer to applicable national standards for safe approach distances. -
Page 6: Introduction
Introduction When contacting Snorkel for service or parts information, be sure to include the MODEL and SERIAL NUMBERS This manual covers the S1930E, S1932E, and S2632E from the equipment nameplate. Should the nameplate Aerial Work Platforms. be missing, the SERIAL NUMBER is also stamped on the front of the chassis. -
Page 7: Special Limitations
The maximum allowable manual force is limited to 445 N Center the control in neutral to reset the lowering function, (100 lbs) for S1930E and S2632E machines. S1930E and then continue to lower the platform. S2632E machines may be operated in zero wind condi- tions only. -
Page 8: Beaufort Scale
Never operate an S1932E machine when wind speeds exceed 12.5 m/s (28 mph) [Beaufort scale 6]. Refer to Figure 1. Never operate an S1930E or an S2632E machine out- doors, or indoors in any location where anything other than zero wind speeds exist. -
Page 9: Controls And Indicators
Caution Only authorized personnel should operate the aerial platform. Unqualified personnel may cause injury to coworkers or property damage. Lock the battery disconnect switch in the off position before leaving the aerial platform unattended. S1930E/S1932E/S2632E – 1360417... -
Page 10: Lower Controls
Aerial platform drive and speed Upper Controls • Platform raise/lower and speed The upper controls (refer to Figure 4) are located on the control panel at the platform. Platform and drive functions can be operated from the upper controls. S1930E/S1932E/S2632E – 1360417... -
Page 11: Interlock Switch
Press the button to sound the horn. Battery Condition Indicator The optional battery condition indicator gauge is on the top of the upper control box. It indicates the level of avail- able battery power to operate the aerial platform. S1930E/S1932E/S2632E – 1360417... -
Page 12: System Function Inspection
Stop Button outward to resume. 4. Visually inspect the elevating assembly, lift cylinder, and hoses for cracked welds and structural damage, loose hardware, hydraulic leaks, loose wire connec- tions, and erratic operation. Check for missing or loose parts. S1930E/S1932E/S2632E – 1360417... -
Page 13: Operation
1. Perform a pre-operation safety and system function inspection. Note The upper controls will not operate while the control 2. Close and latch the battery and hydraulic trays. selector is in the lower position. 3. Place the battery disconnect switch in the on position. S1930E/S1932E/S2632E – 1360417... -
Page 14: Platform
2. While facing the front of the platform, step down on the foot lever and pull the top rail of the extension deck backward until the pin engages the mid or rear stop. S1930E/S1932E/S2632E – 1360417... -
Page 15: Driving And Steering
If the chassis is tilted more than two degrees side-to-side or front-to-rear, platform raise and drive 5. Set the steer wheels straight ahead after completing functions are disabled and an alarm sounds when those a turn. The steering wheels are not self-centering. controls are activated. S1930E/S1932E/S2632E – 1360417... -
Page 16: Fold Down Guardrails
9. Reverse this procedure to reposition the rails. • S1930E and S1932E machines – push downward on the lever to lower the platform. • S2632E machines – pull outward on the handle to lower the platform. -
Page 17: Transporting The Machine
4. If lifting from either side of the machine, place the forklift forks directly under the designated points 12. Verify that the drive system and brakes operate under the pothole protector skid. properly before operating the aerial platform. S1930E/S1932E/S2632E – 1360417... -
Page 18: Driving
Grease exposed cylinder rods with a light, white Warning lithium grease. The potential for an accident increases when the aerial Periodically charge the batteries. platform is lifted using improper equipment and/or lifting techniques. Death or serious injury could result S1930E/S1932E/S2632E – 1360417... -
Page 19: Maintenance
• AC Power On (Blue) – indicates that AC power is • If electrolyte level is lower than 6 mm (¼″) above applied to the charger. the plates add distilled water only. DO NOT use tap S1930E/S1932E/S2632E – 1360417... -
Page 20: Inspection And Maintenance Schedule
6 mm (¼″) of the bottom of the filler neck inside each hole. If needed, add distilled water. 11. Tightly replace the caps on each battery and replace and latch the battery tray doors. S1930E/S1932E/S2632E – 1360417... -
Page 21: Daily Preventative Maintenance Checklist
Sounds when aerial platform drive function is operated Battery condition indicator Proper operation Horn Sounds when activated Placards and Decals In place and readable Maintenance Table Key: Y = Yes/Acceptable, N = No/Not Acceptable, R = Repaired/Acceptable S1930E/S1932E/S2632E – 1360417... -
Page 22: Specifications - S1930E
Specifications Specifications – S1930E Electrical System Aerial Platform Voltage 24 V DC negative chassis ground Working height 7.6 m (25′) Source Four - 6 V 220 amp hour batteries Maximum platform height 5.8 m (19′) Fluid recommended distilled water Turning radius... -
Page 23: General Specifications - S1932E
0 to 0.6 km/h (0 to 0.4 mph) Drive System Standard Two-wheel drive Gradeability Maximum drive height 5.8 m (19′) Drive/Lift Level Sensor Interlock Side-to-side 2 degrees Front-to-rear 4 degrees Tires Nonmarking solid rubber 30.5 cm x 10.2 cm (12″ x 4″) S1930E/S1932E/S2632E – 1360417... -
Page 24: General Specifications - S2632E
0 to 0.6 km/h (0 to 0.4 mph) Drive System Standard Two-wheel drive Gradeability Maximum drive height 8.0 m (26′ 3″) Drive/Lift Level Sensor Interlock Side-to-side 1.5 degrees Front-to-rear 4 degrees Tires Nonmarking solid rubber 38.1 cm x 12.7 cm (15″ x 5″) S1930E/S1932E/S2632E – 1360417... - Page 26 Local Distributor / Lokaler Vertiebshändler / Distributeur local El Distribuidor local / ll Distributore locale EUROPE, MIDDLE EAST AFRICA & ASIA PHONE: +44 (0) 845 1550 057 FAX: +44 (0) 845 1557 756 NORTH & SOUTH AMERICA PHONE: +1 785 989 3000 TOLL FREE: +1 800 255 0317 FAX: +1 785 989 3070 AUSTRALIA...
