Chapter 2: Description

Test Leads, Connectors, and Data Ports

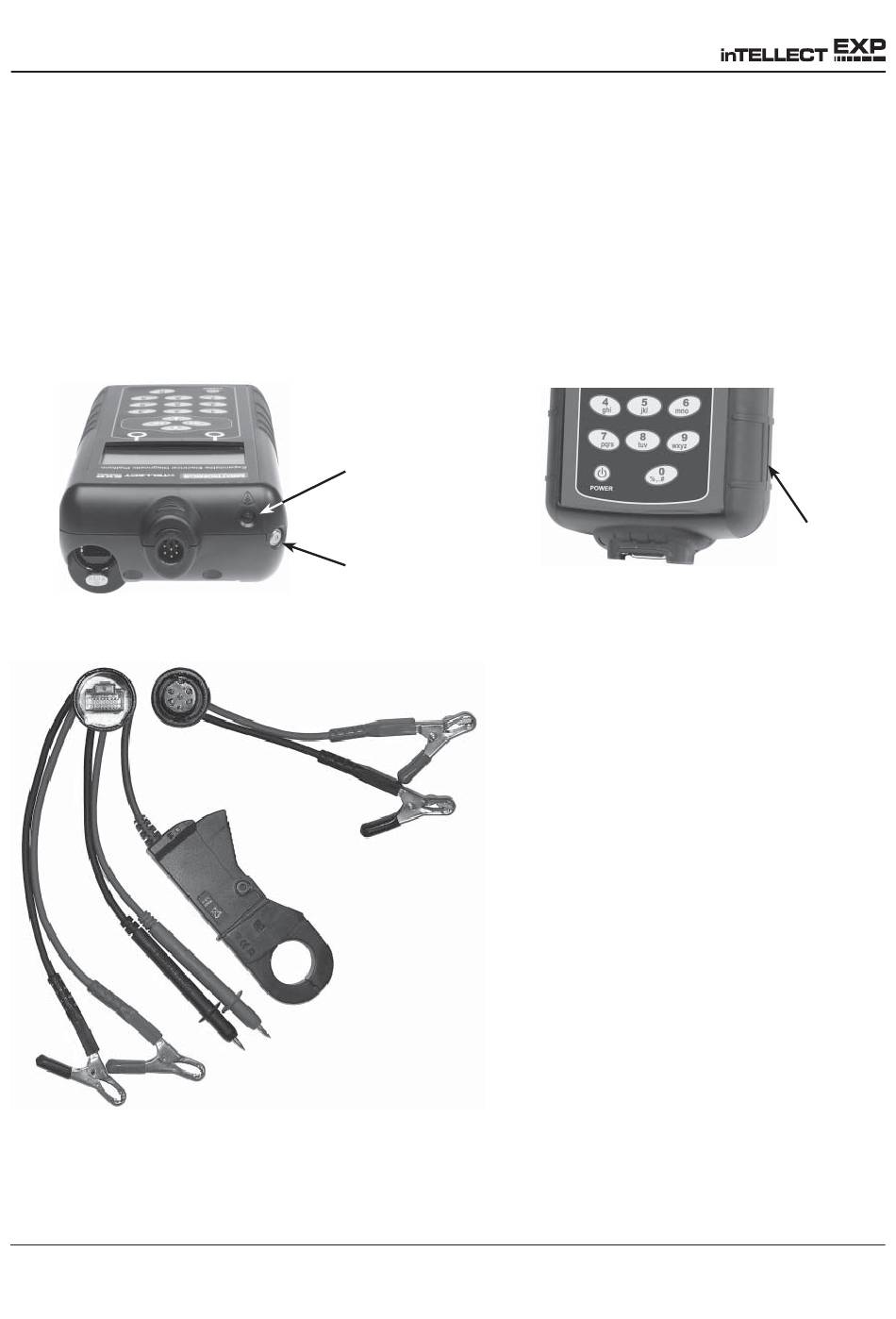

For the cable test leads (Figure 5), there are two connectors on the top of the tester (Figure 3).
• For the battery test cable, there is a 6-pin connector with a locking ring.
• For the amp clamp and the multimeter test cables, the Tester has an accessories port,
which is a RJ45 connector with a release lever.
Figure 3: Top of EXP
6-pin
Accessories
connector
port
DMM cable with
clamps
Figure 5: Test Leads
IR data
transmitter
IR temperature
sensor
Battery
test cable
Amp clamp
DMM cable
with probes
10
•
Figure 4: Bottom of EXP
connector
for future
expandability
There are two IR data ports on the top of
the Tester (Figure 3).
• An IR data transmitter, which
transmits test results to the optional
IR printer.
• An IR temperature measurement
sensor.
The tester also has a DB-9 connector
for future expandability and an SD card
slot for future software upgrades or data
logging. (Figure 4).
•
SD card slot
for future
upgrades
DB-9
