6. INSTALLATION

6.1. INTRODUCTION

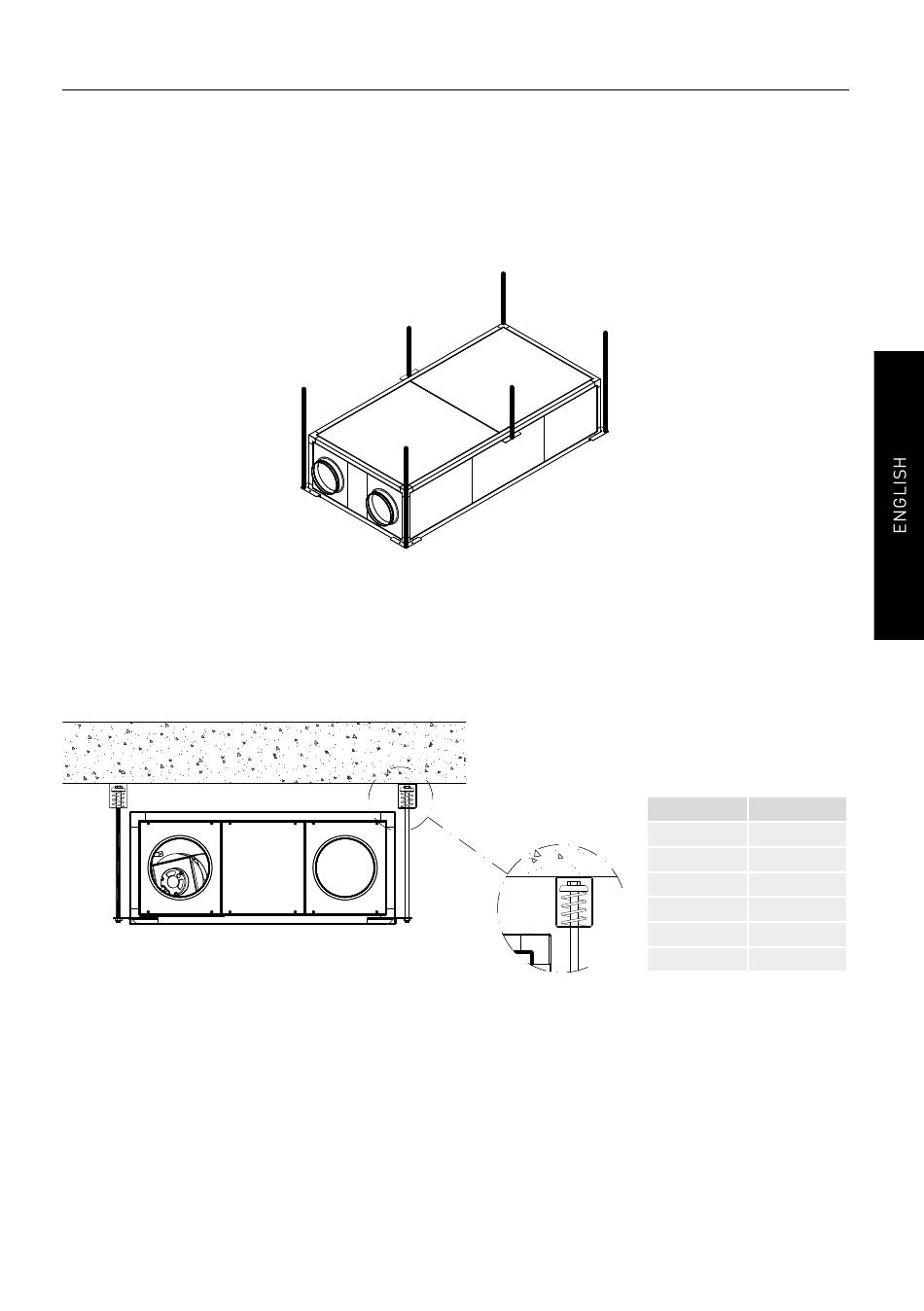

Horizontal models size 04, 08, 12, 16, 21 and 33
These models are designed to be installed hanging from the ceiling or located behind a false ceiling.
The 04, 08, 12, 16, 21 and 33 models have four metal brackets, one on each lower corner. Using studded
rods (Ø 8 mm), it can be secured to the ceiling and levelled.
The installer must make sure that the ceiling structure and the securing elements can bear the weight
of the device, taking into account that it is a dynamic load.
To prevent the transmission of vibrations from the unit to the rest of the installation, it is necessary
that the installer use specifi c isolation elements, such as antivibration devices in the supports, fl exible
sleeves between the unit and the ducts, and fl exible couplings between the water connections and the
pipelines.
Vertical models
The models size 4 to 21 are supplied with support feet, while the models size 40 and 54 are supplied
with a perimetral bed. This bed must be in contact with the ground or with a fl at surface. It is essential
that the weight of the equipment is distributed between all points of support to prevent unit deforma-
tion.
The installer must make sure that the ceiling structure and the securing elements can bear the
weight of the unit, taking into account that it is a dynamic load.
7
Model Weight (kg)
4 147
8 183
12 190
16 235
21 333
33 420
